128 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
To get to the chassis map, click the chassis in the vertical menu in Figure 3-56 on page 127,
then click the chassis under the chassis list as shown here in Figure 3-58.

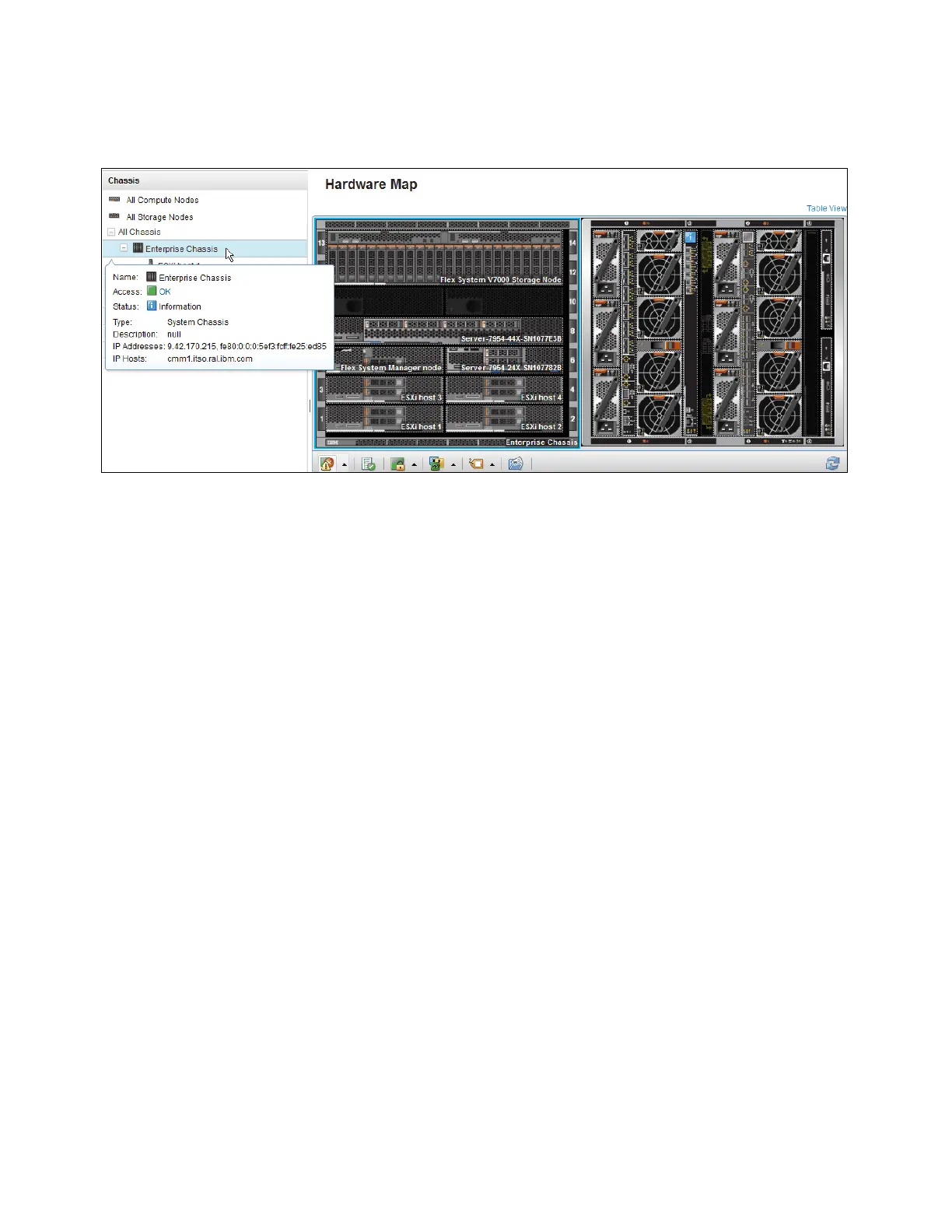

Figure 3-58 IBM FSM Explorer home tab - chassis map
