IBM V7000 User Manual

154 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

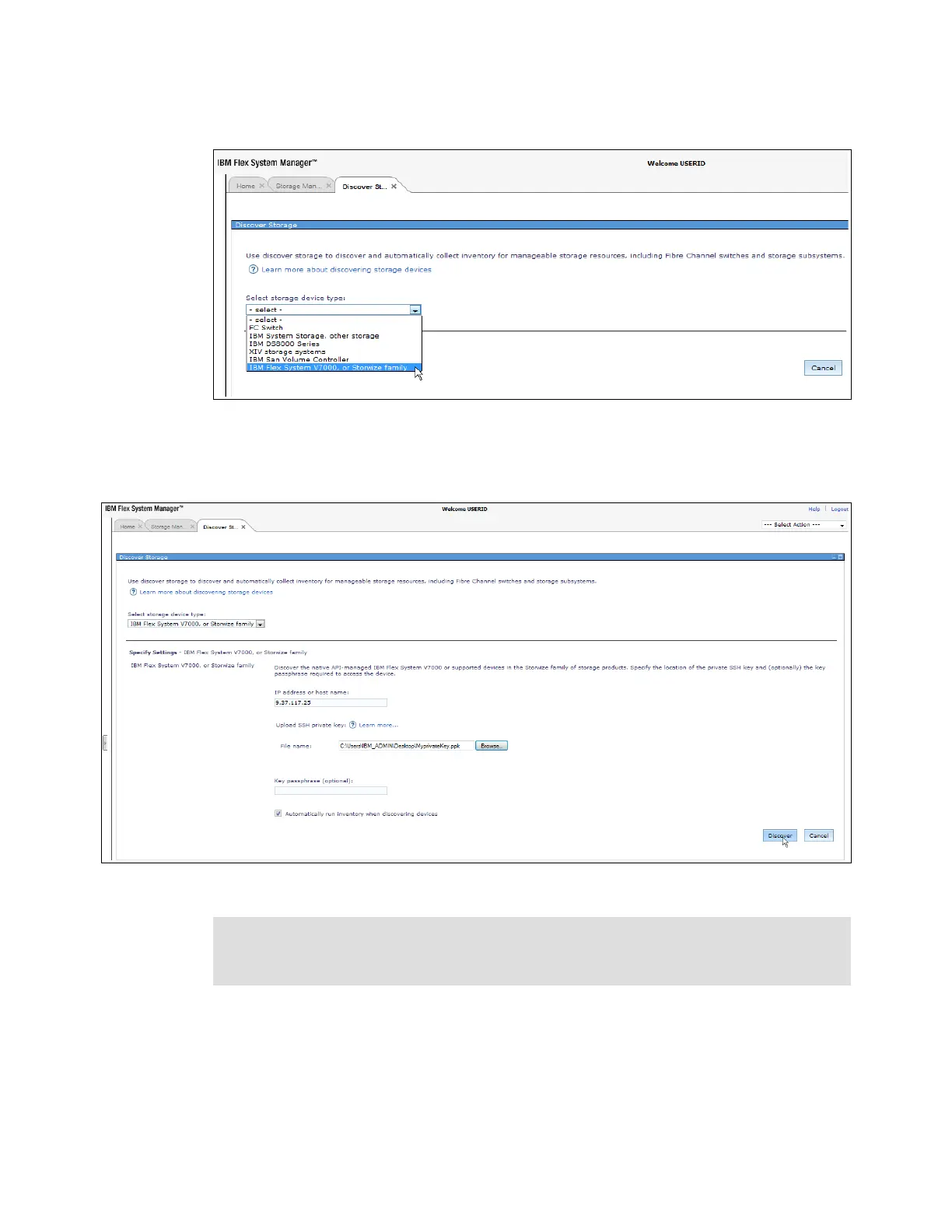

This will open a new page. Select the storage you need to discover as shown in Figure 3-97.
Figure 3-97 Selecting the Storage System to discover
Clicking the storage device type opens a new window. Enter the IP address of the storage you
need to discover, the ssh private key, then click Discover as shown in Figure 3-98.
Figure 3-98 Discovering new storage - IP address and SSH private Key
A new job will start to discover the new storage system.
Important: When you use the management software to manage a Storwize V7000, the
management software overwrites the preexisting SSH key for the user ID superuser. After
the management process is complete, you can reapply the previous SSH key.

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
