168 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
Initial setup
Follow this procedure for the initial setup from the CMM interface:
1. Log in to the CMM and navigate to the Chassis Map. In the Chassis Map displayed by the
CMM, you will see all the IBM Flex System V7000 Storage Node enclosures installed in
the chassis.
2. Select the Actions menu and click Launch Storage Node Console. The Action menu
can be found by right-clicking the left canister in the graphical representation of the
storage node, as shown in Figure 4-8.

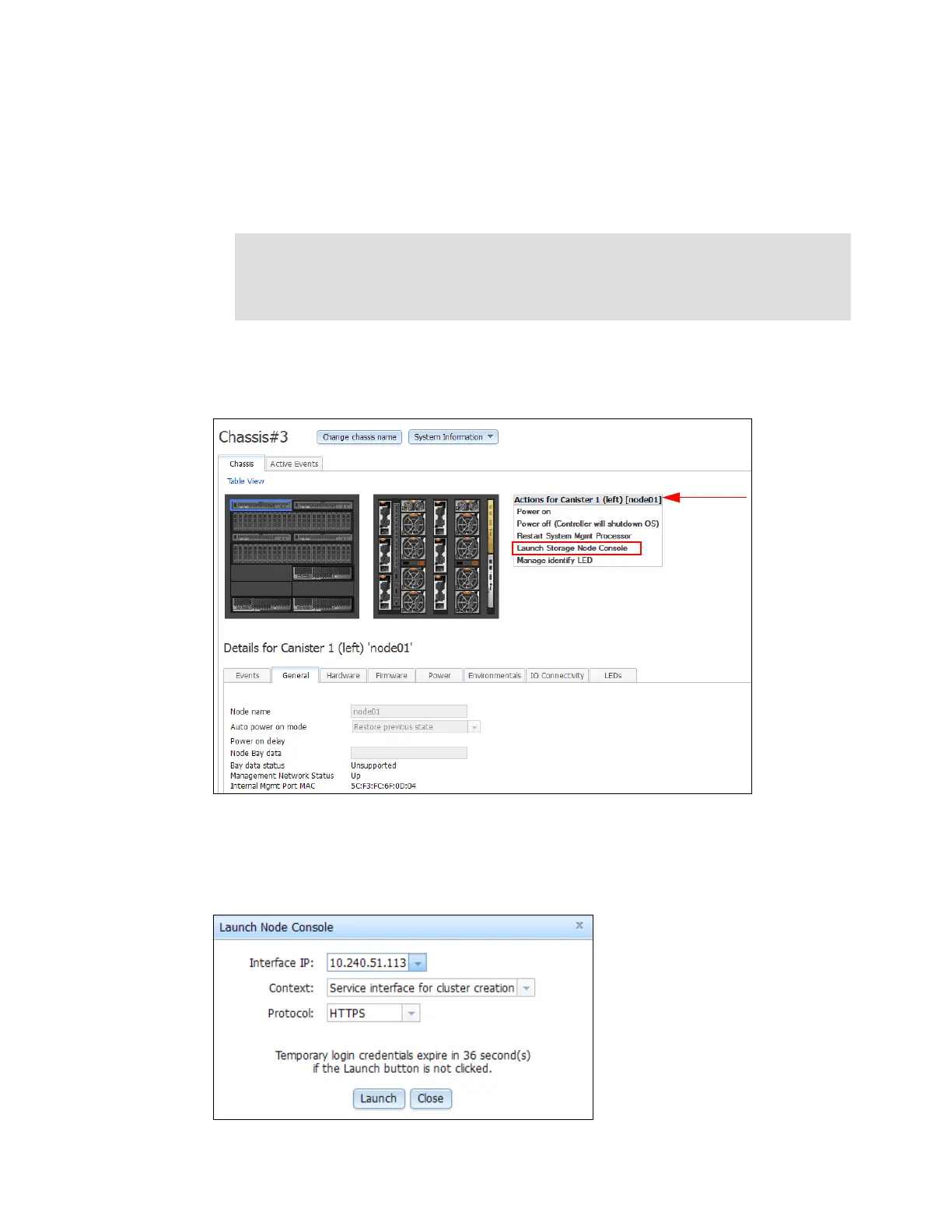

Figure 4-8 CMM - Select Launch Storage Node Console
3. A browser window displays the IBM Flex System V7000 Storage Node system startup
panel. The Service IP address displayed will be one that has been allocated by your
DHCP server as shown in Figure 4-9.
Figure 4-9 CMM - Launch Node Console
Tip: If you have installed more than one control enclosure in your IBM Flex System
V7000 Storage Node system, choose a control enclosure to be used to initialize the
system. It does not matter which control enclosure you choose. You cannot initialize the
system from an expansion enclosure.

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
