The Internal Storage window (Figure 8-3) gives an overview of the internal drives installed in
IBM Flex System V7000 Storage Node. Selecting All Internal in the Drive Class Filter
shows all the drives installed in the managed system, including attached expansion
enclosures. Alternatively, you can filter the drives by their type or class, for example, you can
choose to show only SAS, NL SAS, or SSD drives.

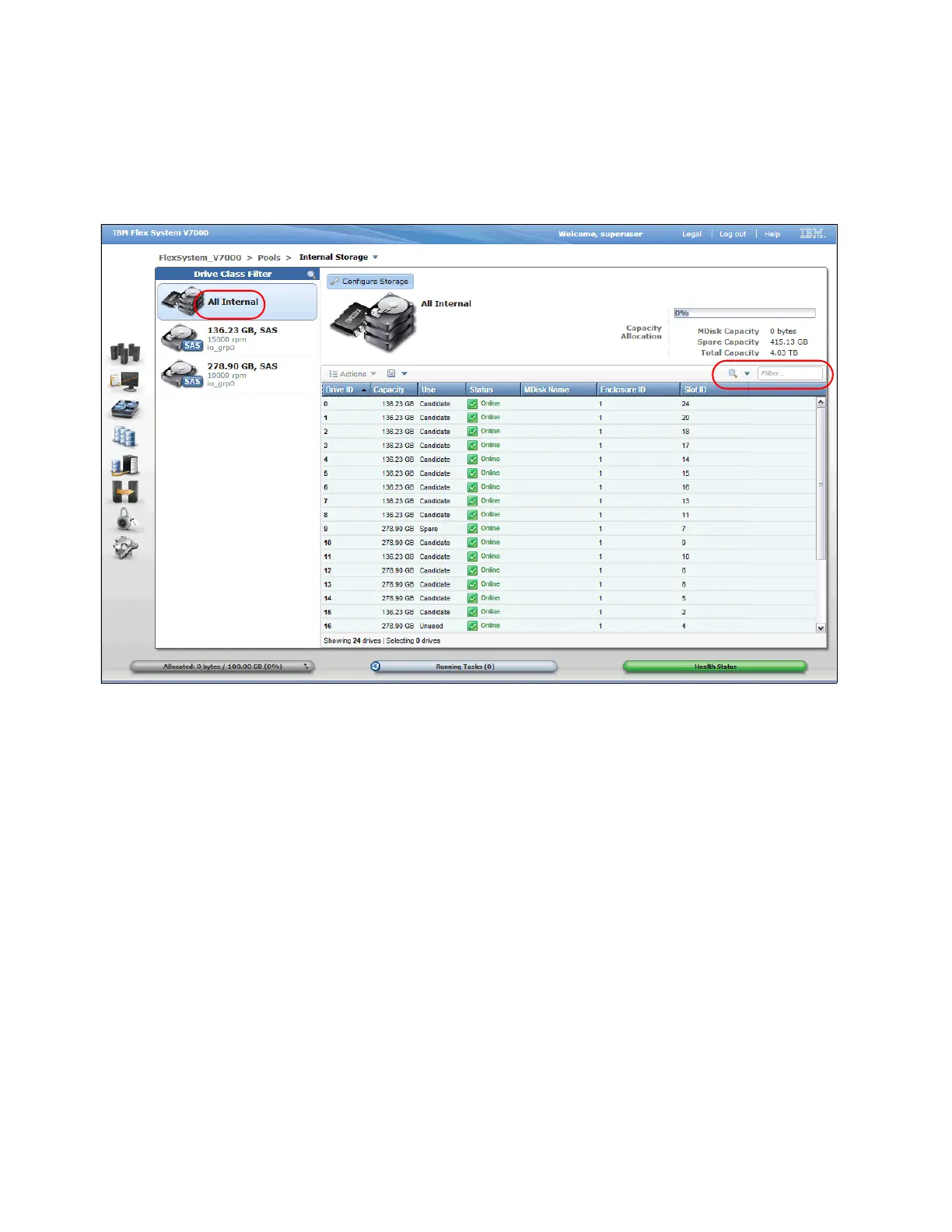

Figure 8-3 Internal Storage window
On the right side of the Internal Storage window, the internal disk drives of the selected type
are listed. By default, this additional information is listed along with it:
Logical drive ID
Drive’s capacity
Current type of use (unused, candidate, member, spare, or failed)
Status (online, offline, and degraded)
MDisk’s name that the drive is a member of
Enclosure ID that it is installed in
Physical Drive Slot ID of the enclosure that it is installed in
