388 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

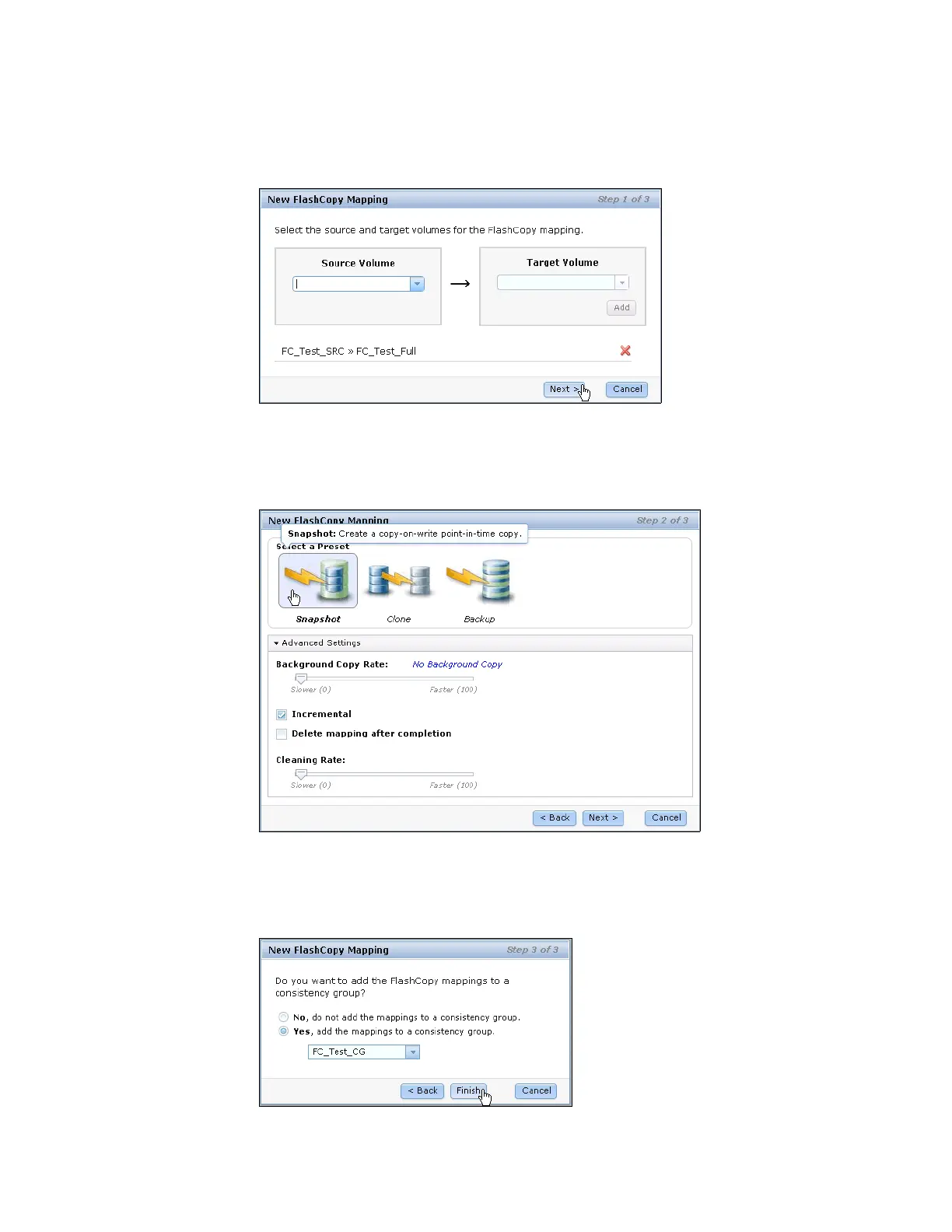

b. After you click Add, the FlashCopy mapping is listed (Figure 9-27). Click the red X if
the FlashCopy mapping is not the one you want to create. If the FlashCopy mapping is
what you want, click Next to continue.
Figure 9-27 Add FlashCopy mapping
c. Select the preset and adjust the settings (Figure 9-28). Make sure that the settings
meet your requirements, and click Next.
Figure 9-28 Select a preset and make your adjustments
d. Now you can add the FlashCopy mapping to a consistency group (Figure 9-29). Click
Finish and the FlashCopy mapping is created with the status of Idle.
Figure 9-29 Select a consistency group to add the FlashCopy mapping to
