534 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
You can also navigate to the Hosts panel, right-click your FCoE host, and select
Properties Mapped Volumes for the host. This panel displays which Fibre Channel
ports are defined for the host. FCoE ports displays as if they were ordinary FC ports
showing World Wide Names (WWNs) for the Host Bus Adapters (HBAs).

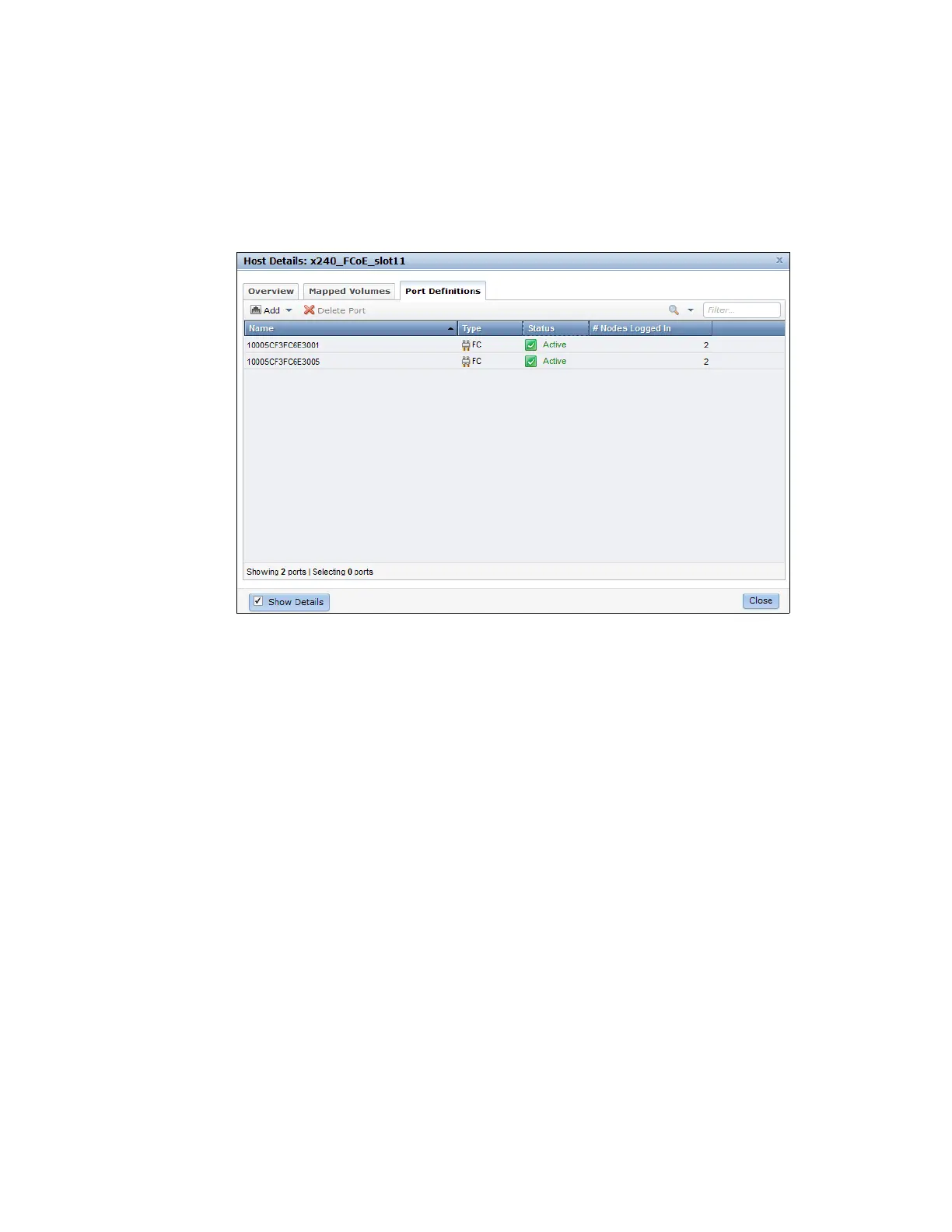

Figure 12-34 shows the ports that are defined for the FCoE capable IBM Flex System
x240 Compute Node.
Figure 12-34 FCoE port definitions
