Chapter 13. Maintenance and troubleshooting 589
To access IBM Flex System V7000 Storage Node from the Chassis Manager page, complete
the following steps:
1. From the Home page, click the Chassis Manager tab.
2. From the Chassis Manager page, click the chassis that contains IBM Flex System V7000

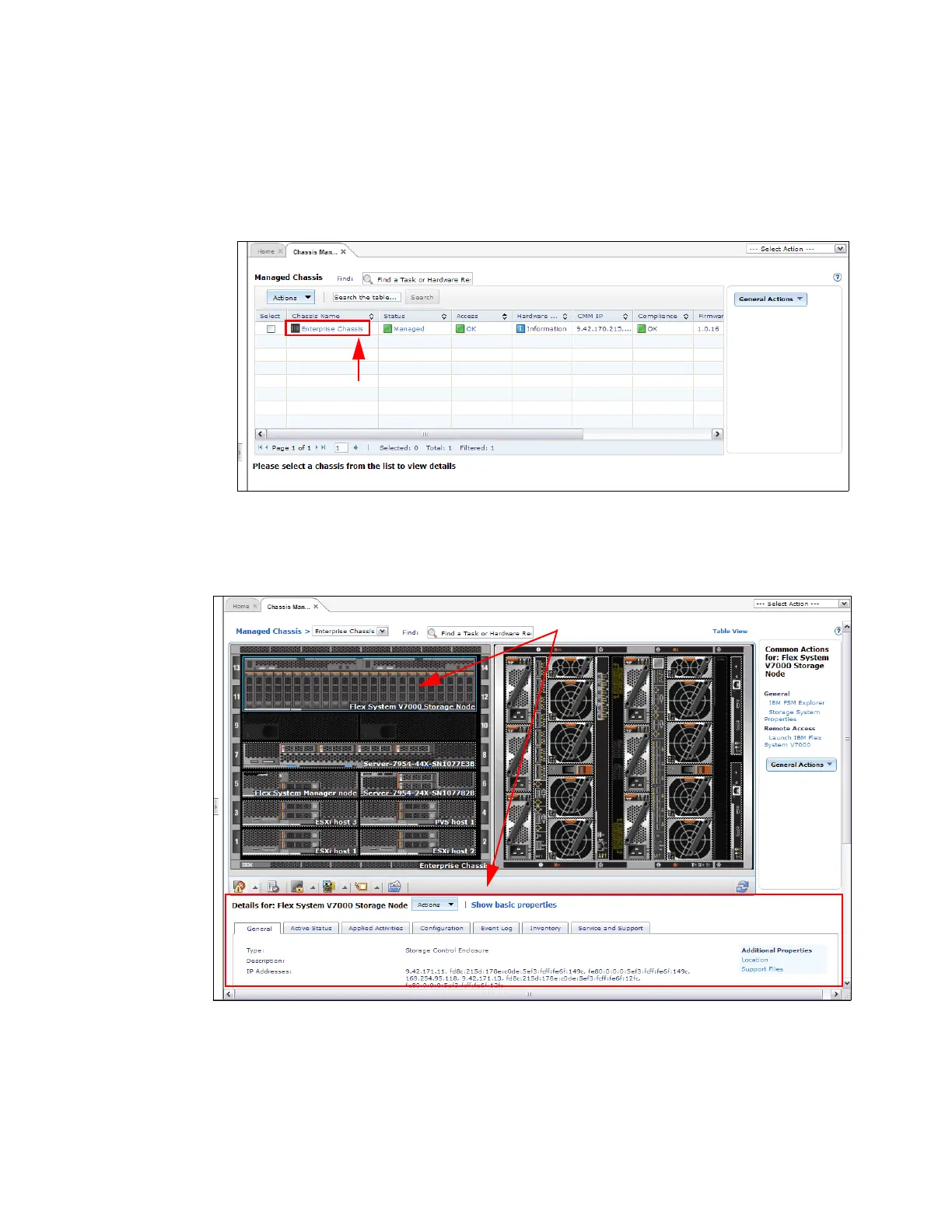

Storage Node. Figure 13-8 shows that a chassis is selected and a Map view opens.
Figure 13-8 Select a managed chassis from the Chassis Map view
3. From the Chassis Map, click the IBM Flex System V7000 Storage Node to select it.
Figure 13-9 shows the details of the storage node as displayed.
Figure 13-9 Details of the selected storage node
Click the chassis icon
Click the Storage Node to view details below

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
