52 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

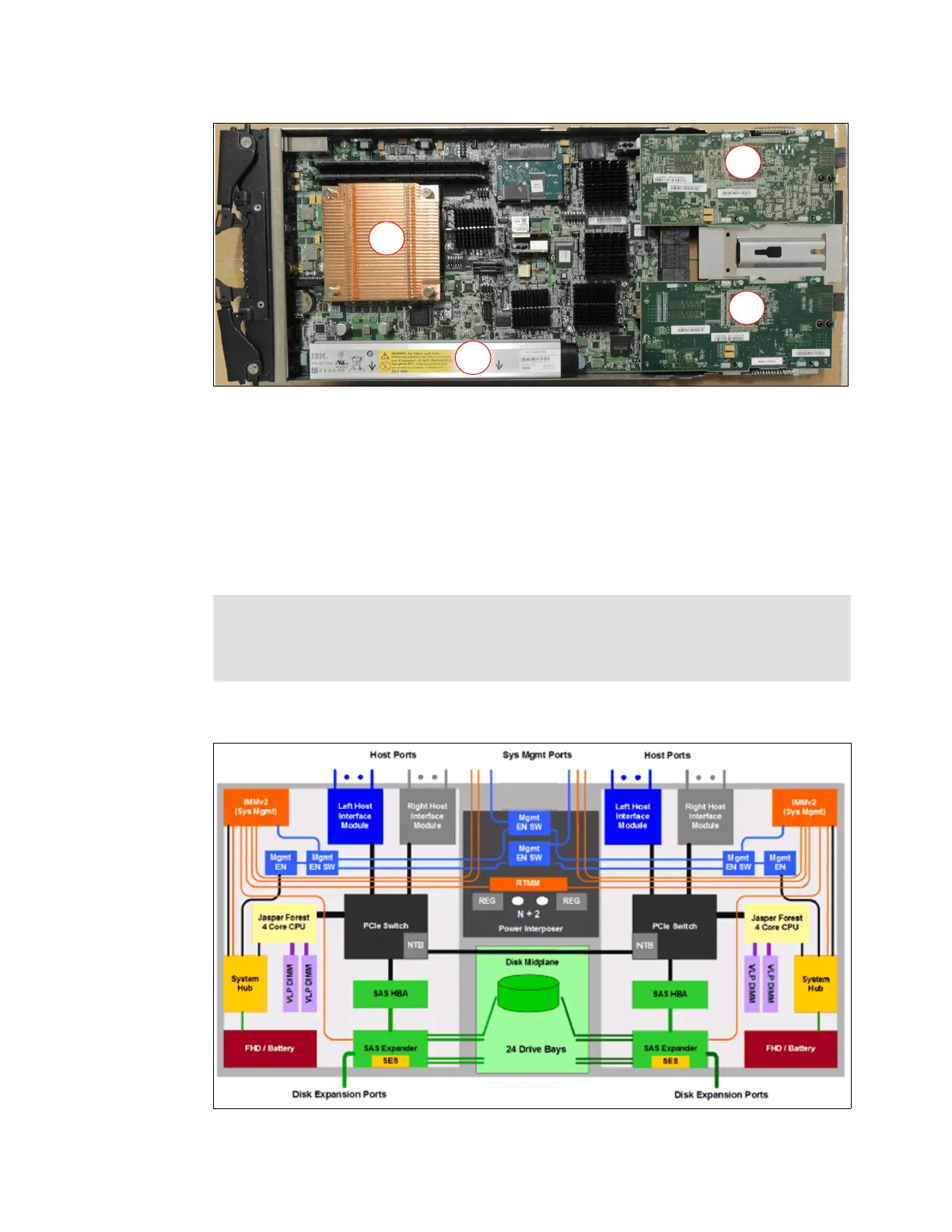

Figure 2-3 Components and board layout of the control canister
In Figure 2-3, the processor (A) is a quad core Jasper. There are also two DIMMs which make
up the cache memory and the battery backup unit (B) which beside the control canister is also
a Customer Replaceable Unit (CRU).
As described before, the two host network adapter card locations (C and D) can also be seen.
These provide the connections to the Flex System Enterprise Chassis through the midplane
and the switch modules. It is important to remember that both control canisters must be
populated with the same type of host network adapter cards in each of these locations.
Figure 2-4 is a logical block diagram of the components and flow of the control canister.
Figure 2-4 Logical block diagram for control canister
Adapter locations: The first network adapter (slot1) location can only be populated by a
2-port 10 Gbps Ethernet CNA network adapter. The second location can be populated by
either a 2-port 10 Gbps Ethernet CNA network adapter or a 4 port 8 Gbps Fibre Channel
network adapter.
A
B
C
D

IBM V7000 Specifications

General

Model	IBM Storwize V7000
Storage Type	Hybrid Flash Array
Maximum Capacity	1.2PB
RAID Levels	0, 1, 5, 6, 10
Connectivity	8 Gbps Fibre Channel, 16 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Management	Command-line interface (CLI), Graphical user interface (GUI)
Form Factor	2U
Drive Bays	12
Maximum Raw Capacity	1.2PB
Operating System Support	AIX, HP-UX, Linux, VMware, Windows
Data Reduction Features	Real-time Compression, Deduplication
Drive Types	SSD, HDD
Scalability	Scale-up (drive enclosures) and scale-out (clustering) capabilities
