WindO/I-NV4 User’s Manual 31-3
1 External Memory Devices
31
External Memory Devices

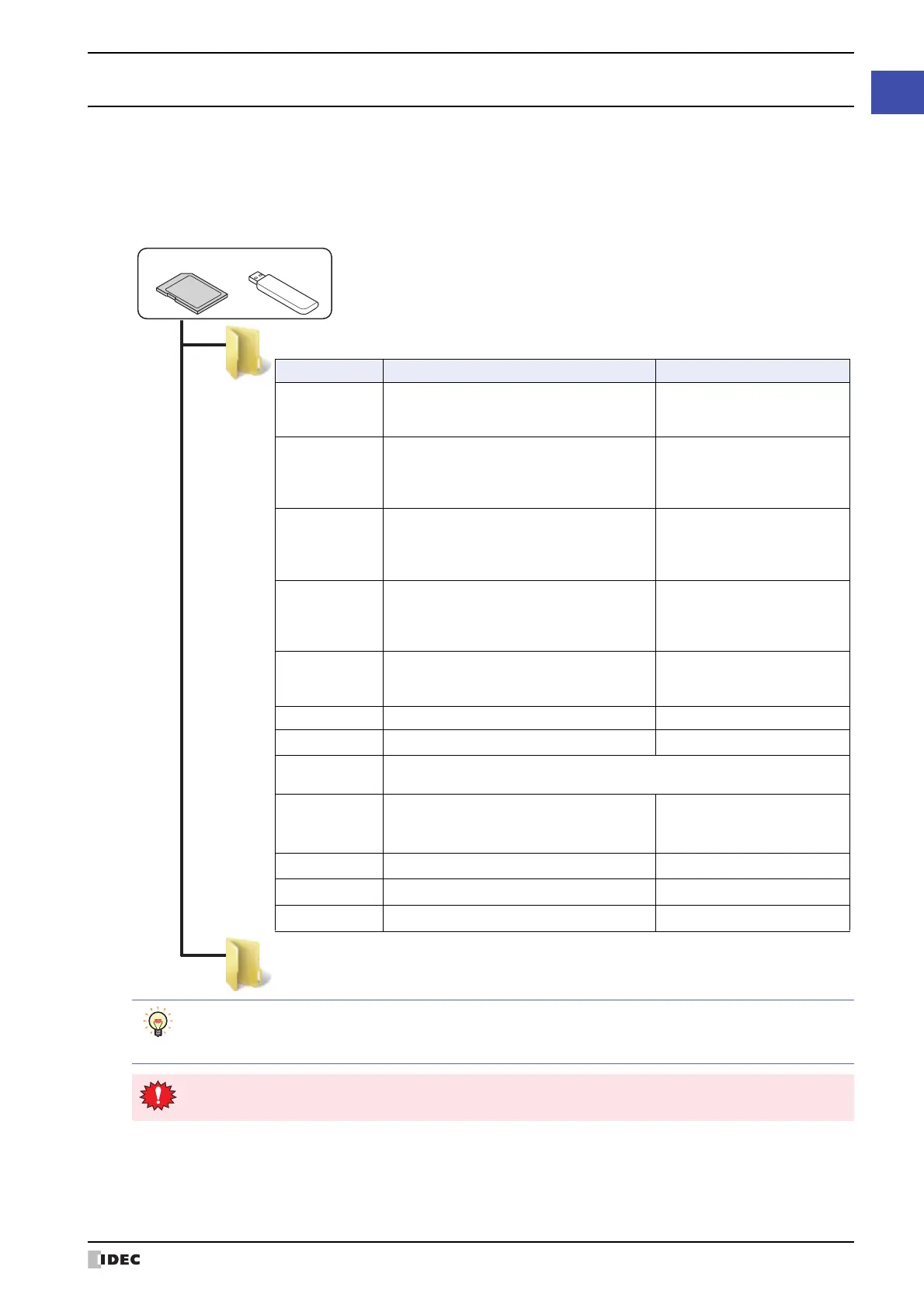

1.4 File structure
When downloading or uploading data using the System Mode on the MICRO/I, or WindO/I-NV4, the following files
and folders are accessible. This folder is called the External Memory Device folder. For the HG5G/4G/3G/2G-V, HG4G/3G
and HG2G-5F, the External Memory Device folder is created on the SD memory card. And for the HG2G-5T, HG1G/1P, it is
created on the USB flash drive. By default, the External Memory Device folder name is "HGDATA01". For details, refer
to “1.6 Setting the External Memory Device Folder” on page 31-15.
*1 This is applicable for models with an audio interface only.
*2 This is applicable for models with a video interface only.
*3 HG5G/4G/3G-V only
*4 HG4G/3G only
*5 This is possible if uploaded using the File Manager
HGDATA01 (External Memory Device folder)
HGDATA02
External Memory Device
SD memory card
USB flash drive
Folder name File name Description
CAPTURE
CAP[date/time].JPGs
Date/time format: YYMMDD_hhmmss
Screenshot data
(file name is assigned
automatically)
ALARMLOG
[user-defined].CSV
Default file name
Batch: ALMHTO.CSV
Real time: ALMHTA.CSV
Alarm Log data
DATALOG
[user-defined].CSV
Default file name
Batch: LOGO**.CSV
Real time: LOGA**.CSV
Data Log data
(** corresponds to the data
number)
OPERATIONLOG
[user-defined].CSV
Default file name
Batch: OPLOGO.CSV
Real time: OPLOGA.CSV
Operation Log data
RECIPE
[user-defined].CSV
Default: RCP****.CSV
Recipe data
(*** corresponds to the recipe
number)
PICTURE [user-defined].bmp/jpg Picture files
SOUND
*1
[user-defined].wav Sound files
WEBPAGE
Folders and files are created according to the file structure specified in Web
Page Editor.
RECORD
*2
[Date] [Time].avi\
*3
, [Date] \ [Time].mp4
*4
Date format: YYYYMMDD
Time format: hhmmss
Movie file saved to dated folder
(Folder and file name included
automatically)
MOVIE
*2
[Custom].avi
*3
, [Custom].mp4
*4
Movie Files
NVDATA
*5
[Project name].znv ZNV Project File
LDRDATA
*5
[Model + port + Station No. + date/time].zld ZLD Project File
Users can create multiple External Memory Device folders for different projects on a single external memory
device. Note, the External Memory Device folder on the external memory device must reside on the root
directory.
Do not alter a ZNV Project File(.znv) and a ZLD Project File(.zld). Altered files cannot be used with MICRO/
I or PLCs.
