WindO/I-NV4 User’s Manual 35-29
2 HG4G/3G, HG2G-5F
35
MICRO/I Specifications
2.6 Dimensions

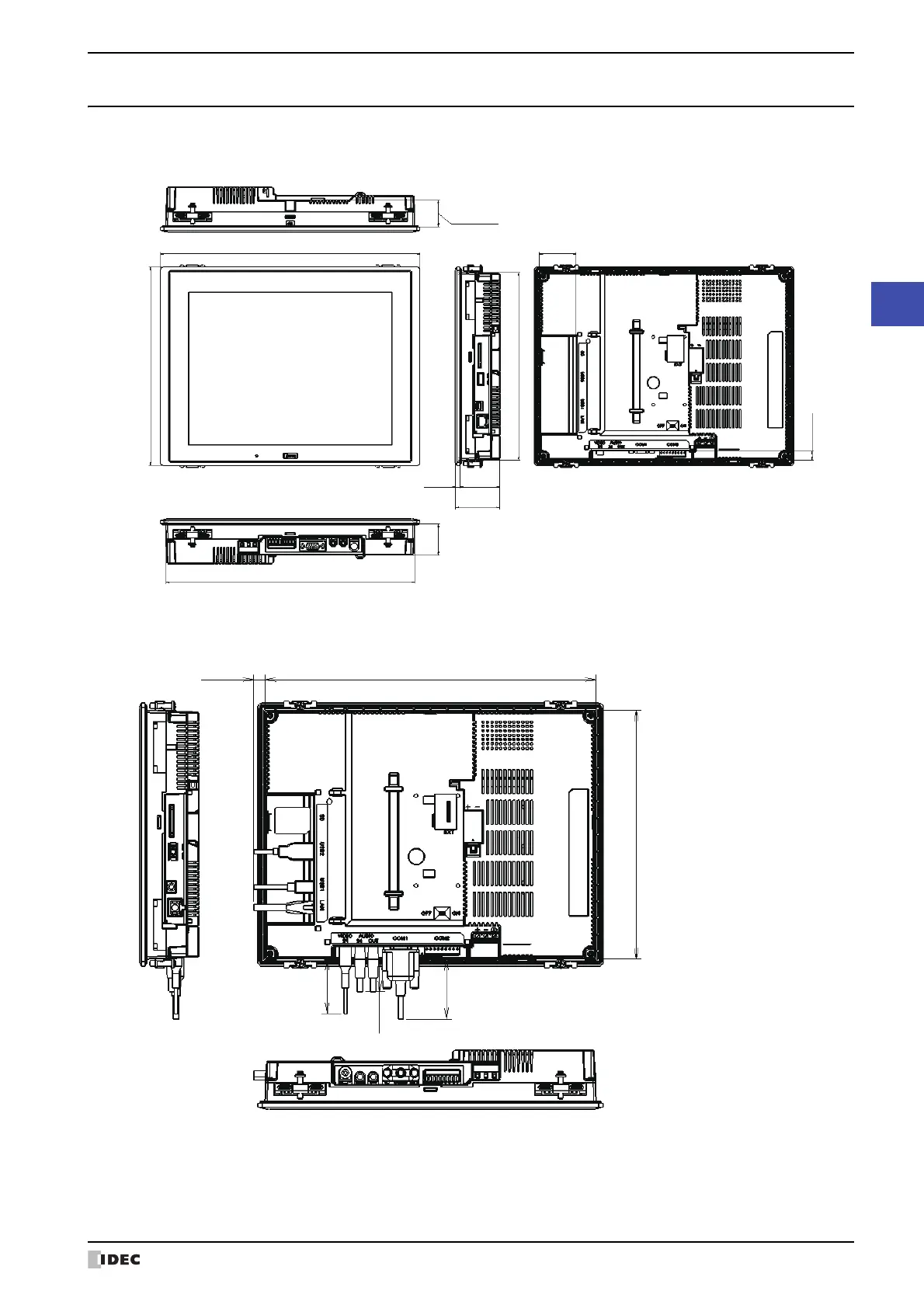

â–  HG4G (12.1inch)
Unit: mm
# The size to the expansion module installation side
<Cable Attached Dimensions>
Depending on the type of connection cable used the dimensions shown above will change.
The dimensions given here are representative values and are intended for reference only.
32.3 #
44.4
54.1
48.1
227.0
240.0
11.4
37.9
6.0
314.0
301.0
10
301.0
227.0
55
50
30
