WindO/I-NV4 User’s Manual 35-51
3 HG2G-5T, HG1G
35
MICRO/I Specifications

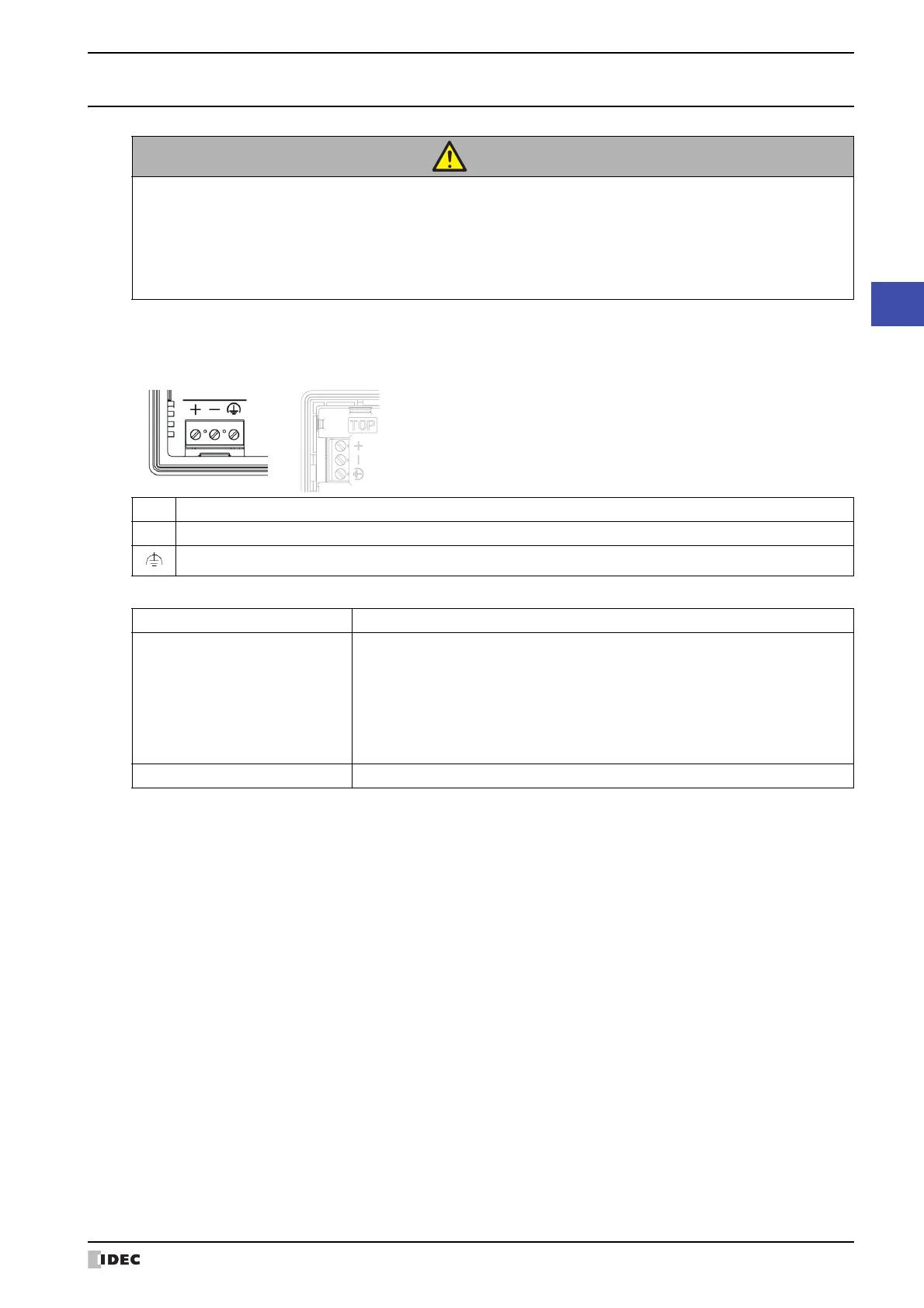

3.8 Wiring
● Power Supply Terminal
• Pin assignment is shown in the following table.
• Use applicable cables for wiring and recommended ferrules (made by Phoenix Contact) as follows.
●
Cautions for using the HG2G-5T, HG1G connected to a personal computer
When connecting the HG2G-5T, HG1G to a personal computer via the USB Interfaces, the HG2G-5T, HG1G or the
personal computer may break down depending on the conditions of the personal computer. Make sure of the
following cautions, in order to prevent an accident.
• If the personal computer has a 3-pin power plug or power plug with a ground lead type, make sure to use a plug
socket including a ground input electrode or ground the earth lead, respectively.
• If the personal computer has a 2-pin power plug without ground lead, follow the procedure below when connect
the HG2G-5T, HG1G to the personal computer.
(1) Pull out the power plug of the personal computer from the AC outlet.
(2) Connect the HG2G-5T, HG1G to the personal computer.
(3) Insert the power plug of the personal computer into the AC outlet.
*1 HG2G-5T only
CAUTION
• Turn off the power supply before wiring.
• Make the wiring as short as possible and run all wires as far away as possible from high-voltage
and large-current cables. Follow all the procedures and precautions when wiring the HG2G-5T,
HG1G.
• Separate the HG2G-5T, HG1G power supply wiring from the power lines of I/O devices and motor
equipment.
• Ground the functional earth terminal to make sure of correct operation.
+ Power supply 12V DC / 24V DC
- Power supply 0V
Functional Earth (FE)
Applicable cable AWG18 to AWG22
Recommended
Pressure Terminal
AI 0,34-8 TQ
AI 0,5-8 WH
AI 0,75-8 GY
AI 1-8 RD
AI-TWIN 2 x 0,5-8 WH
AI-TWIN 2 x 0,75-8 GY
AI-TWIN 2 x 1-8 RD
*1
(Phoenix Contact)
Tightening Torque 0.5 to 0.6 N·m
To Next Page
