6 Multi-Button

Buttons

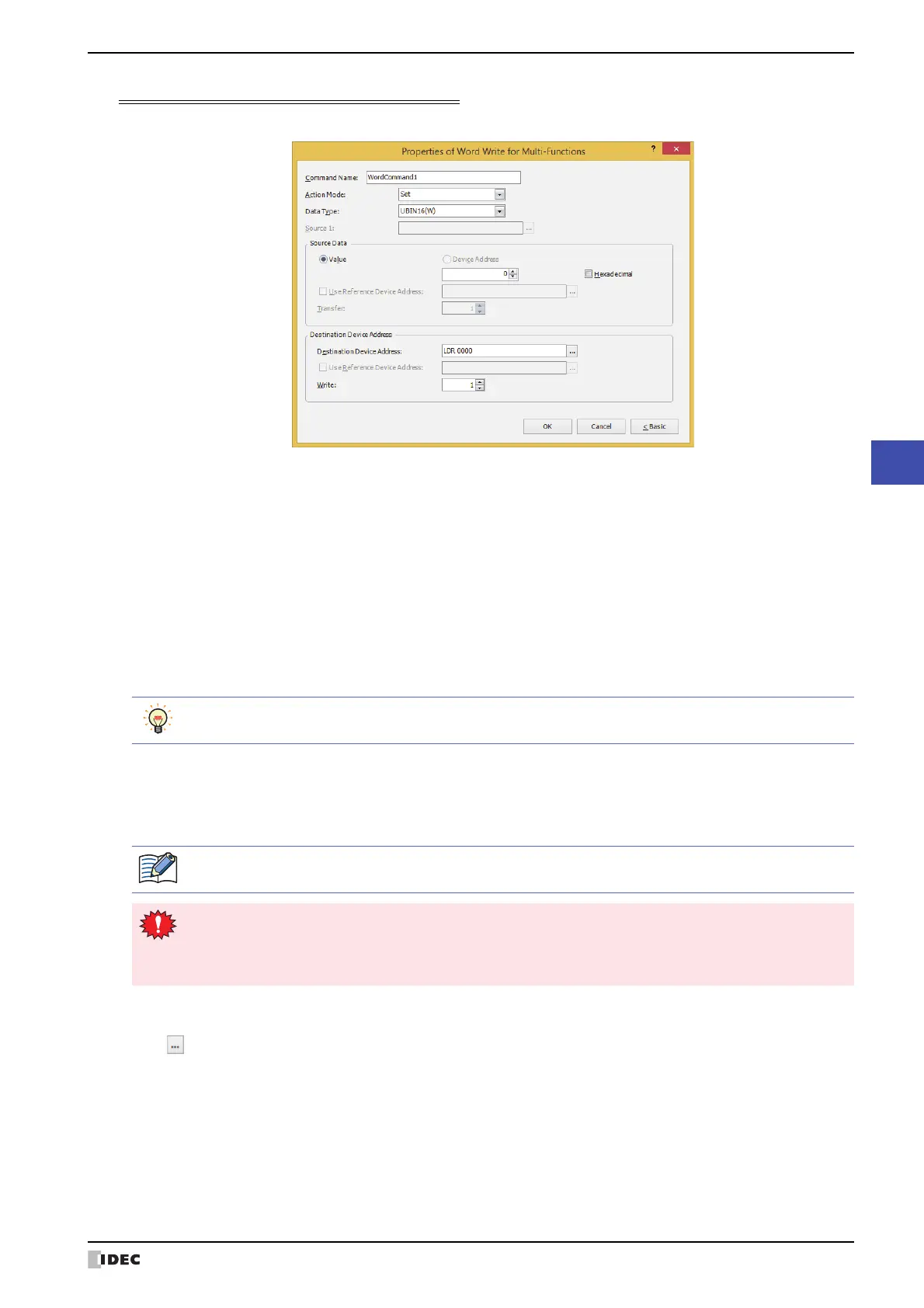

Properties of Word Write for Multi-Functions Dialog Box

Sets the Word Write command for the Multi-Button.

■ Command Name

Enter a name for the command. The maximum number is 20 characters.

■ Action Mode

Select the behavior of the Multi-Button from the following:

■ Data Type

Select the data type handled by the operation selected for Action Mode.

For details, refer to Chapter 2 “1.1 Available Data” on page 2-1

UBIN16(W) and UBIN32(D) can only be set if Action Mode is set to OR, AND, or XOR.

■ Source 1

Specify the source word device.

Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device

Address Settings” on page 2-68.

This setting is enabled only if Action Mode is set to Add, Sub, Multi, Div, Mod, OR, AND, or XOR.

Set: Pressing the button writes a fixed value to a word device.

Move: Pressing the button writes a value in a source device address to a destination word device.

Set ON & OFF Data: Pressing the button writes a fixed value of ON Data to a word device.

Releasing the button writes a fixed value of OFF Data to a word device.

Add, Sub, Multi, Div, Mod, OR, AND, XOR: Pressing the button performs arithmetic on a value of source device

address and a fixed value or a value of device address and writes the

result to a word device.

For details about the Action Mode, refer to “Action Mode” on page 8-23. However, Set ON & OFF Data for

the Multi-Button has the same function as Momentary for the Word Button.

UBIN16(W) and UBIN32(D) can only be set if Action Mode is set to Move. Because the number of

device addresses to transfer is specified in Advanced mode, you do not need to set Data Type.

If BCD4(B), BCD8(EB), or Float32(F) is selected and the arithmetic data contains a value inexpressible

in BCD, a 1 is written to System Area 2 Processing error bit (address+2, bit 5) and an error message is

displayed. For details, refer to Chapter 4 “Processing error” on page 4-32 and Chapter 36 “Processing

error” on page 36-3.
