WindO/I-NV4 User’s Manual 8-147
8 Selector Switch
8
Buttons
■ Always update the status
Select this check box to change the position of the knob with the values of device addresses.
■ Notch
Register and edit the settings for each notch to each channel.

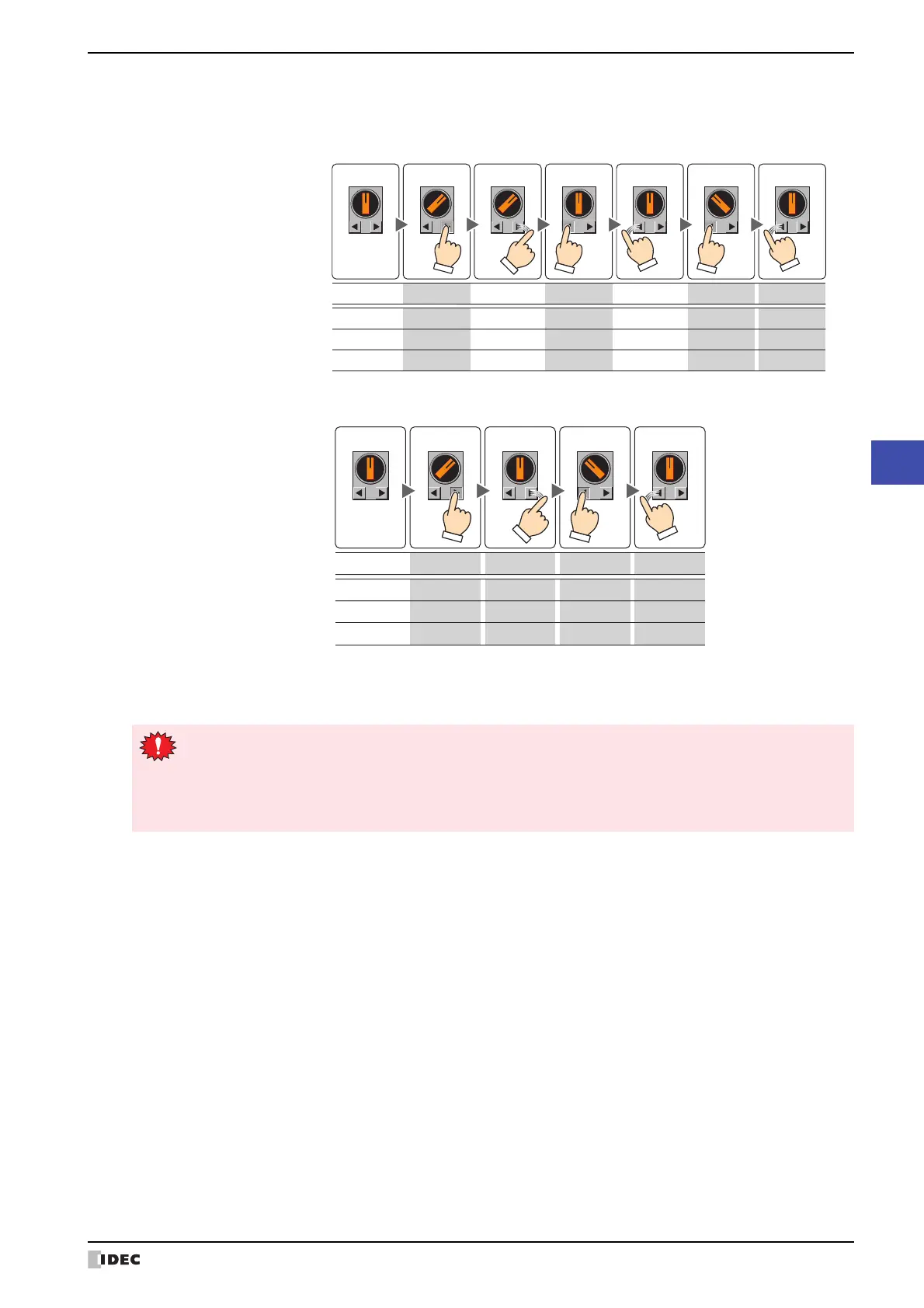

3-Notch L-return: • If the knob is switched to Ch1, it returns to Ch2 when the button is released.
• If the knob is switched to Ch2, or from Ch3 to Ch2, it stays where it is even if the button is
released.
3-Notch Both-return: If the knob is switched to Ch1 or Ch3, it returns to Ch2 when the button is released.
Release
Default state
Press L-button
Release
Press L-button
Release
Press R-button
0
1
1
0
1
0
0
1
0
Write
Write
Write
Write
0
0 0
Ch1
Ch2
Ch3
Action
Operation
and view
Data
written
Release
Default state
Press L-button
Release
Press R-button
0
1
1
0
1
0
0
1
Write Write
Write
Write
0 0
0 0
Ch1
Ch2
Ch3
Action
Operation
and view
Data
written
The position of the knob will not be updated when the values of the device addresses set for the Selector
Switch are the following states.
• When values of multiple device addresses are 1
• When values of all device addresses are 0
• When the value of the device address of the return channel is 1
Use Text Manager: Select this check box to use the text registered in the Text Manager as the Registration Text for
each channel.
(List of Notch settings): This list shows the notch settings for each channel.
No.: Shows the channel to be output. The number of notches selected in the
Switch Type determines the number of channels.
Double clicking the cell displays the Notch Settings dialog box where you
can edit the notch settings. For details, refer to “Notch Settings Dialog Box”
on page 8-149.
Device Address: Shows the destination bit device or the bit number in the destination word
device.
Double clicking the cell displays the Tag Editor where you can edit the device
address. For the device address configuration procedure, refer to Chapter 2
“5.1 Device Address Settings” on page 2-68.
Text: Shows the Registration Text for the channel.
Double clicking the cell allows you to edit the Registration Text.
Can only be set when the Use Text Manager check box is cleared.
To Next Page
