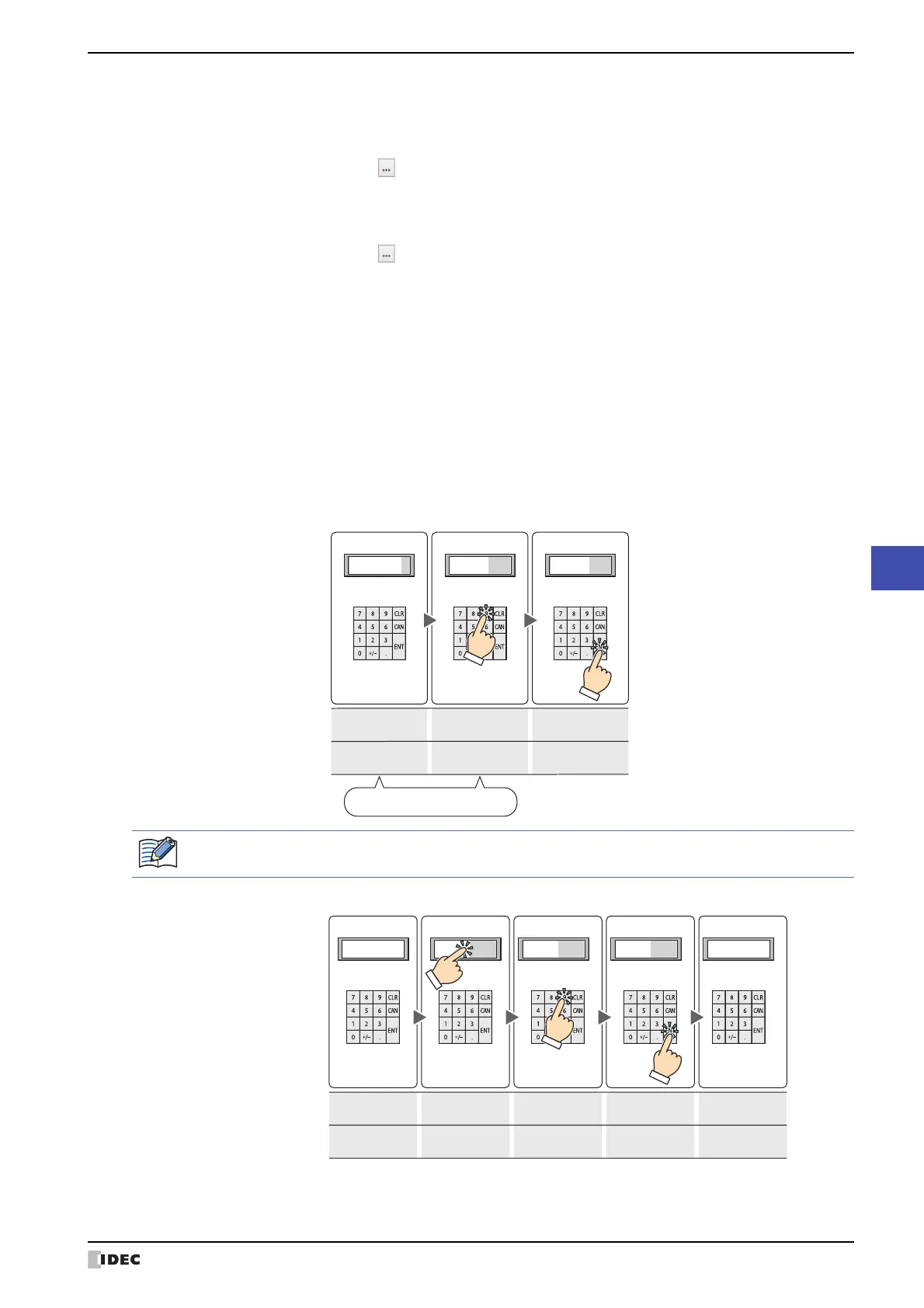

WindO/I-NV4 Users Manual 10-7
1 Numerical Input
10
Data Displays
Input Method
These options specify the destination for entered values.
Always Entry Mode
*1
Select this check box to enter values by pressing the keypad and key buttons without touching the Numerical Input
displayed on the screen.
To display 0 on the Numerical Input until a value is entered, select the Start from 0 in Always Entry Mode of
Numerical Input check box on the System tab in the Project Settings dialog box. To display the value of device
address, clear the Start from 0 in Always Entry Mode of Numerical Input check box.
This option can only be configured if Current Screen is selected for Type.
Example: When the Always Entry Mode check box is selected and the Start from 0 in Always Entry Mode of
Numerical Input check box is selected on the System tab in the Project Settings dialog box
Example: When the Always Entry Mode check box is cleared
*1 Advanced mode only
Destination Device Address: Specifies the word device to write the entered value to.
Click to display the Tag Editor. For the device address configuration procedure,
refer to Chapter 2 “5.1 Device Address Settings” on page 2-68.
Use Reference Device Address
*1
:
Select this check box and specify a device address to change the destination word
device by the value of this device address.
Click to display the Tag Editor. For the device address configuration procedure,
refer to Chapter 2 “5.1 Device Address Settings” on page 2-68.
For details on indirect writing, refer to Chapter 2 “Indirect Read and Indirect Write
Settings” on page 2-5.
Enter a value
Display value being entered
(Entry mode)
Display 0
(Entry mode)
Press ENT
Write value to device address
(Entry mode)
0
Action
Operations and display
999999
Value of
Destination Device Address
99912341234
Not displayed on Numerical Input.
Only one Numerical Input or one Character Input set to Always Entry Mode can be configured for one
screen.
Press Numerical Input
Enter a value
Enter 999
Press ENT
Display value of
device address
(Entry mode)
Write value to
device address
(Entry mode)
Display value of
device address
(Display mode)
Display focus
(Entry mode)
Display value of
device address
(Display mode)
1234
Operations and display
1234 999
Value of
Destination Device Address
Action
1234
999
999123412341234 999
