1 Numerical Input
10-8 WindO/I-NV4 User’s Manual
â–  Focus is moved by ENT button
*1
When multiple Numerical Inputs are configured on the screen, select this check box to continue entering values on
each of the Numerical Inputs.
Each time ENT is pressed, the focus moves between the Numerical Inputs according to Focus Order. On the View
tab, in the Screens group, click Focus Order, and then click the Numerical Inputs in the order to move the focus.
Example: When Numerical Input A and B are configured and the Focus is moved by ENT button check box for
Numerical Input A is selected and the Focus is moved by ENT button check box for Numerical Input B is
cleared
â–  Update the display by ENT button
*1
Select this check box to display the current value unchanged and update the display when a value is entered and ENT
is pressed.
When this check box is cleared, the display updates with each press of a number button to display the number being
entered.
*1 Advanced mode only

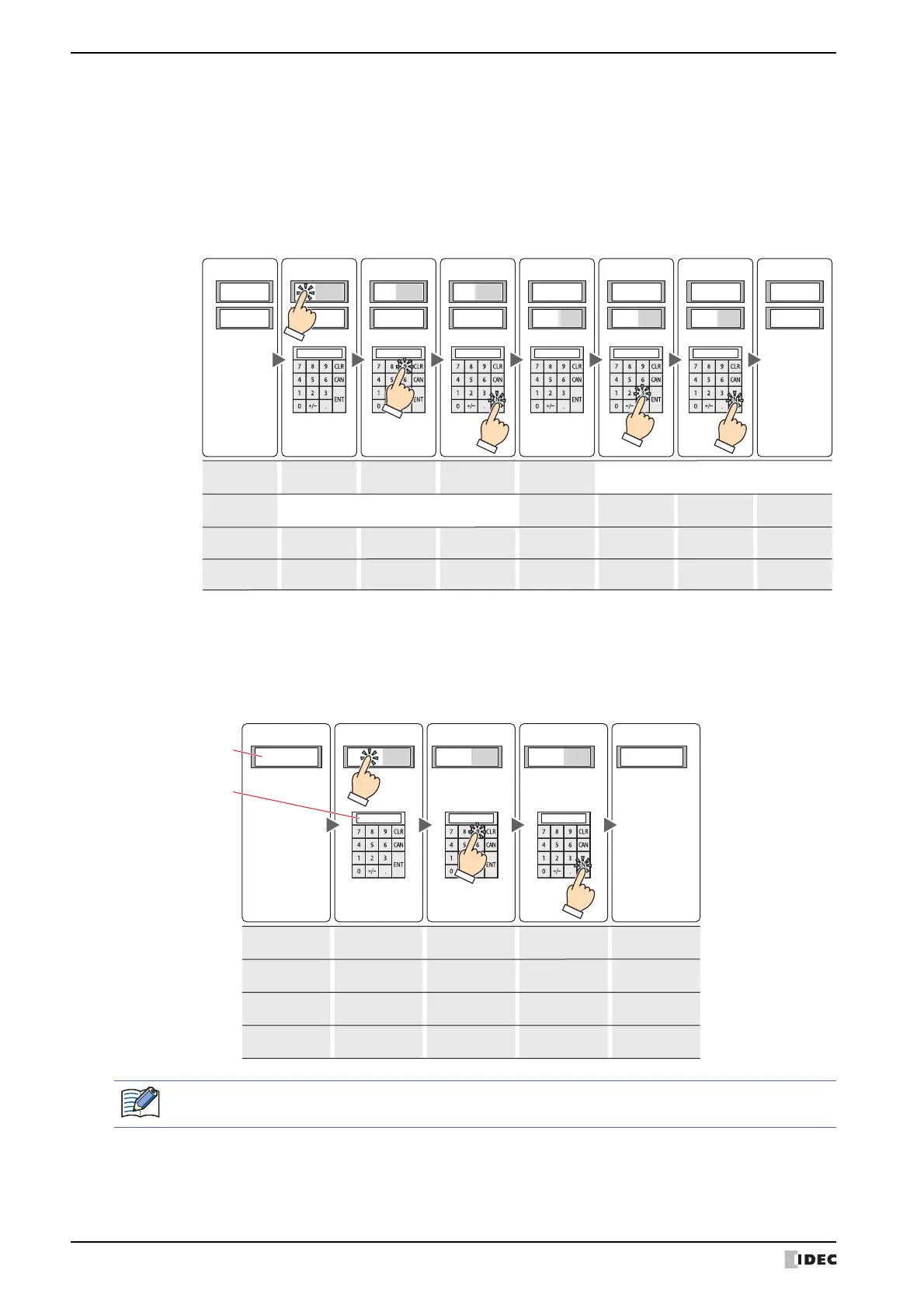

Press Numerical Input A
Enter a value Press ENT Enter a value Press ENT
Move focus from
Numerical Input A to B
Write value to
device address
(Entry mode)
Display value of
device address
(Display mode)
Display value of
device address
(Display mode)
Display value of
device address
(Entry mode)
Write value to
device address
(Entry mode)
Display value of
device address
(Display mode)
Display value of
device address
(Entry mode)
Display focus
(Entry mode)
Display focus
(Entry mode)
Display value of
device address
(Display mode)
1234
567
1234
567
1234
567
999
567
999
567
999
567
999
333
999
333
567
1234
Operations
and display
1234
999 999
567
1234
999
Numerical Input A
Value of
Destination Device Address
Numerical Input A
action
Numerical Input B
action
567
1234
A
B
Numerical Input B
Value of
Destination Device Address
567
999
567 567
333
999
567
333
999
333
999
333
When a value outside the input range is entered and ENT is pressed, the symbol selected under Symbol to
show when out of range or Error occurs is displayed. The value is not written to the device address.
Press Numerical Input
Enter a value Press ENT
Display value of
device address
(Entry mode)
Write value to
device address
(Entry mode)
Display value of
device address
(Display mode)
Display focus
(Entry mode)
Display value of
device address
(Display mode)
1234
Operations and display
1234
999 999
1234 999
Value of
Destination Device Address
Numerical Input display
Keypad display
Action
1234
999
1234
1234
-
1234
1234
1234
1234
1234
999
999
999
999
999
999
-
Numerical Input
Keypad display
