IS810N-INT Series Servo System User Manual (Brief)Chapter 4 Wiring

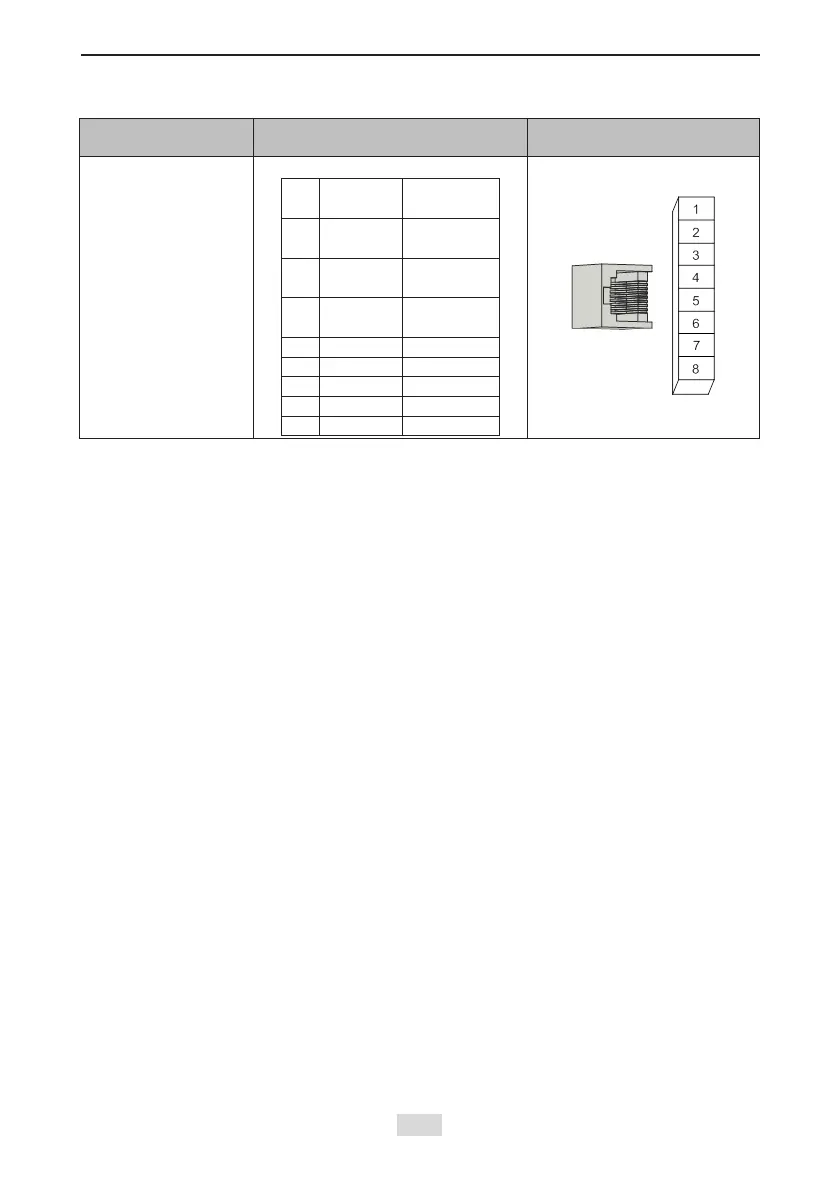

Table 4-20 Pin denition of communication signal terminal connectors

Terminal Symbol Pin Description Pin Layout

CN2

Ethernet Connection

No. Denition

Function and

Specication

1 TX+

Data

transmit+

2 TX-

Data

transmit-

3 RX+

Data

receive+

4 - -

5 - -

6 RX- Data receive–

7 - -

8 - -

Note: Communication cables are the same as cables for multi-device communication

(S6-L-T04).
