4.3.4 Shield Grounding and Hose Clamp
To ensure device stability, x the exposed shield of cables to the shield support with a hose
clamp to ensure grounding of the shield, as shown in the following gure.

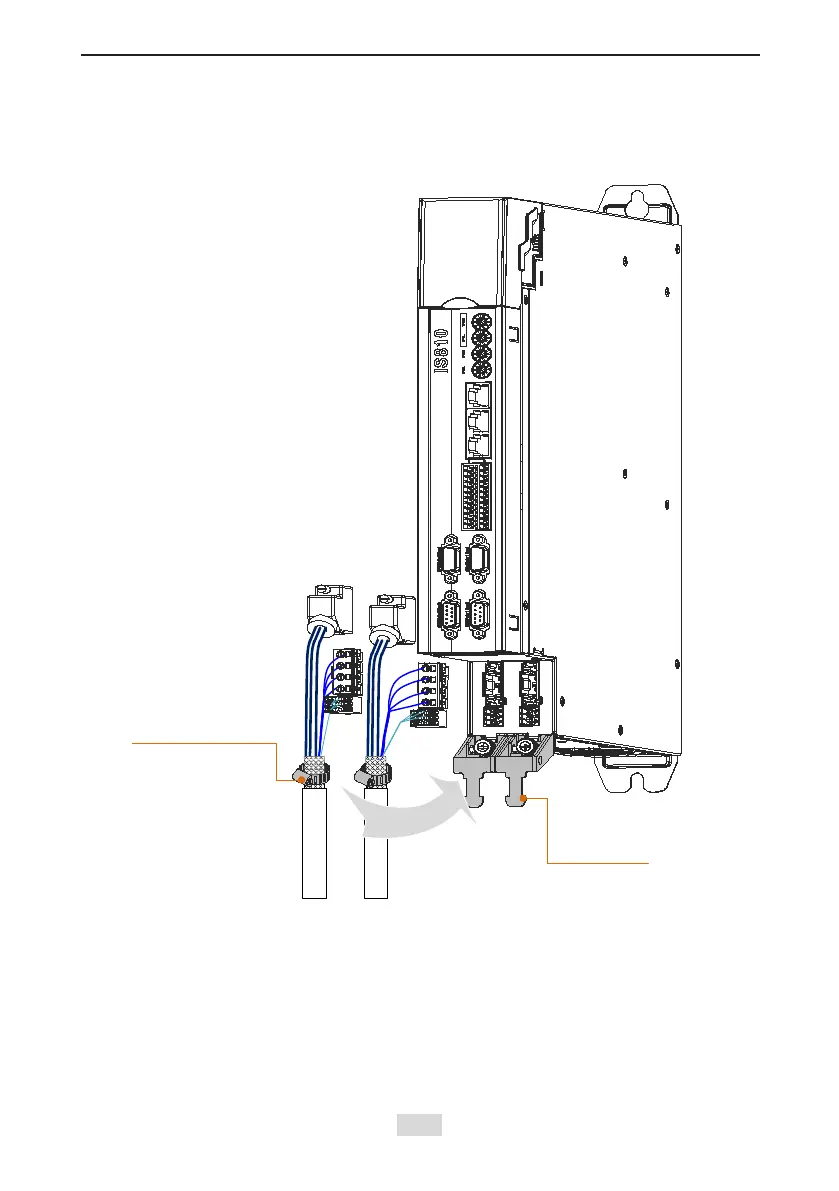

Figure 4-4 Shield grounding and hose clamp application
Shield support (Optional)
Fix the exposed shield
of the cables to the
shield support with a
hose clamp to ensure
grounding of the shield.
Hose clamp (Optional)
