IS810N-INT Series Servo System User Manual (Brief)Chapter 3 Installation
- 65 -
3.2.3 Wall-Mounted Installation
Recommended torque (N.m) for installation:
Item M3 M4 M5 M6 M8 M10 M12
Electric
connection
0.55 1.2 2.8 4.8 13 20 35
Ensure that there is enough product installation space on the left of the power supply unit.
A multi-axis system requires units to be lined up along the top.
Mark the position of tapped holes for installation on the base plate. Drill the holes for xing the
screws on the base plate.
This product must be installed on the base plate vertically.
Below is the installation diagram:

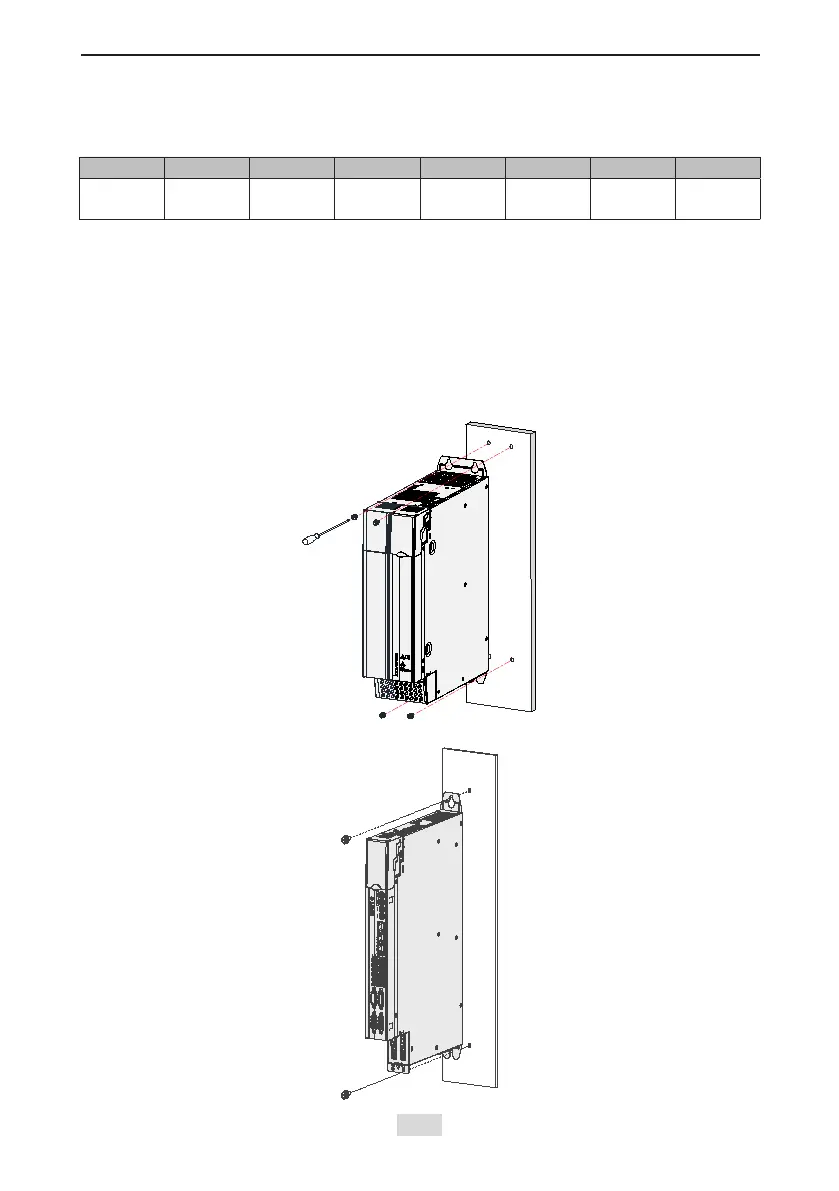

Figure 3-8 Wall-mounted installation of a power supply unit
Figure 3-9 Wall-mounted installation of a drive unit
