IS810N-INT Series Servo System User Manual (Brief)Chapter 2 Product Information
- 51 -

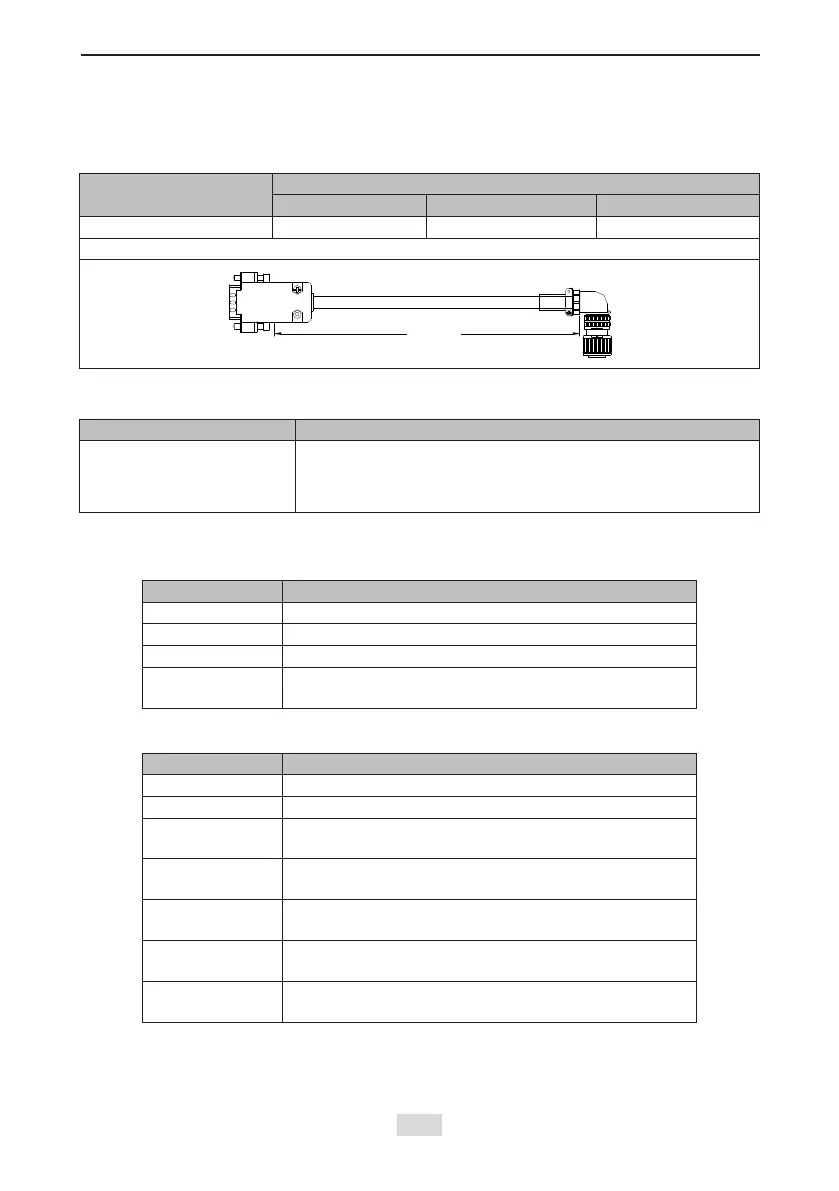

2.4.3 Cables Applicable for ISMG Series Servo Motors (Communication Cables
Included)
Table 2-7 Servo motor cable
Item
Servo motor encoder cable
L = 3.0m L = 5.0m L = 10.0m
ISMG1(G2)-*******-A3*** S6-L-P021-3.0 S6-L-P021-5.0 S6-L-P021-10.0
Appearance of the servo motor encoder cable
L±15mm
Table 2-8 Connector kit
Motor Model Connector Kit
ISMG1(G2)-*******-A3***
S6-C6: CN1 terminal (DB15)
S81-C3: CN2 terminal, 20-22 military spec. plug (elbow), 20-29
military spec. plug (elbow)
Note: The servo motor encoder cable does not include a CN1 connector.
Table 2-9 Communication cable
Model Description
S6-L-T00-3.0 Servo drive to PC communication cable
S6-L-T01-1.0 Communication cable for multi-drive parallel connection
S6-L-T02-2.0 Servo drive to PLC communication cable
S6-L-T03-0.0
Plug for the termination resistor for servo drive
communication
Table 2-10 Mounting options
Model Description
ISMG1-B01 Mounting bracket for the ISMG1 natural ventilation motor
ISMG2-B01 Mounting bracket for the ISMG2 natural ventilation motor
ISMG1-B02
Mounting bracket for the ISMG1 forced air ventilation
motor
ISMG2-B02
Mounting bracket for the ISMG2 forced air ventilation
motor
MD500-AZJ-T5
Through-hole mounting bracket for the SIZE-G servo
drive
MD500-AZJ-T6
Through-hole mounting bracket for the SIZE-H servo
drive
MD500-AZJ-T7
Through-hole mounting bracket for the SIZE-I servo
drive
L±15 mm
