IS810N-INT Series Servo System User Manual (Brief) Chapter 2 Product Information
- 40 -
2.2.4 Specications of the MS1 Servo Motor Series
1. Designation Rules and Nameplate

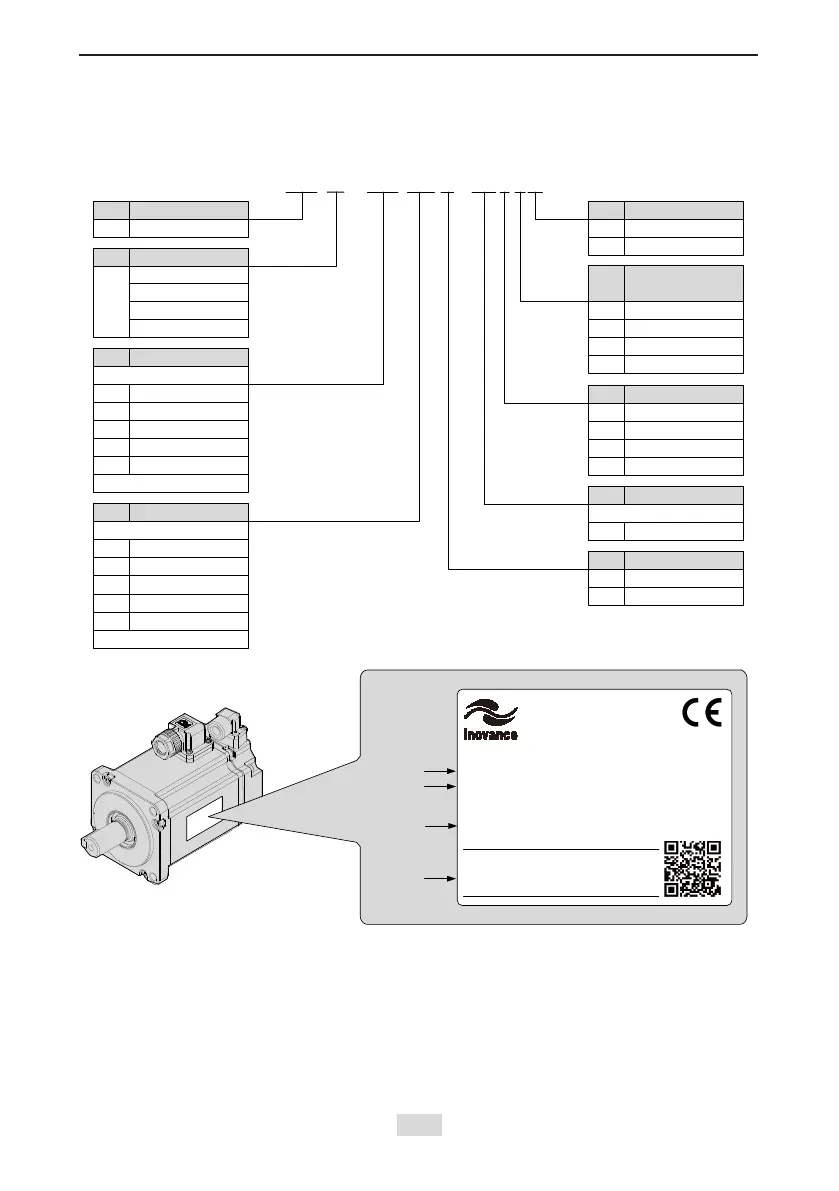

Figure 2-10 Designation rules and nameplate of the servo motor series
Note: The information above applies only to 40\60\80 bases.
MS1 H1 – 40B 30C B – A3 3 1 Z
Mark
Series
MS1 MS series servo motor
Mark Type
H
1: Low inertia, small capacity
2: Low inertia, medium capacity
3: Medium inertia, medium capacity
4: Medium inertia, small capacity
Mark Rated Power (W)
A x1
B x10
C x100
D x1000
E x10000
Example: 40B: 400 W
1 number + 1 letter
Mark
Rated Speed (RPM)
A x1
B
x10
C x100
D x1000
E x10000
Example: 30C: 3000 RPM
1 number + 1 letter
Mark
Motor Specification
Z series motor
Mark Brake, Reducer, Oil Sealing
1 Oil sealing
2
Brake
4 Oil sealing + brake
None
Z
0
Mark Motor Shaft
1 Plain
2
Solid + keyed
3 Solid + keyed + tapped hole
5 Solid +tapped
Mark Encoder Type
1 letter + 1 digit
A3
23-bit multi-turn absolute encoder
Mark Voltage Class
B 220 V
D 380 V
Leadwire-type motor
Z-S
Model MS1H1-40B30CB-A331Z
Model
Parameters
Code
Serial
Number
Nameplate
AC Servo Motor
Pn(W) 400 Un(V) 220 In(A) 1.3
Nn(r/min) 3000 Tn(Nm) 0.32 Duty S1
Motor Code: 14101 IP67 3PHAC
IEC 60034
Suzhou Inovance Technology Co.Ltd
Made in China S/N:01110848********
fn(Hz) 250 Ins.F
