Chapter 3 Installation
3.1 Power Supply/Drive Unit Installation
3.1.1 Installation Environment
• Installation location
1) Ambient temperature: Ambient temperature has a great effect on the AC drive life. The
operating temperature of the AC drive shall not exceed the allowable temperature range
(-10°C to 50°C).
2) Altitude: When the installation altitude exceeds 1000 m, the IS810 drive device must be
derated according to any recommended capacitance value.
3) Installation surface requirements: The installation surface of the IS810 drive device
must be ame retardant. Its structural strength must meet the strength requirements for
device transportation, storage and running under normal conditions to avoid AC drive
device damages due to vibration or excessive deformation of the installation surface. The
installation surface must remain vertical to the horizontal ground and be secured to the
cabinet properly. The installation surface must be able to withstand no less than four times
the total weight of the installed device.
4) Cooling requirements: A large amount of heat may be generated during the operation of
the AC drive. There must be plenty of cooling space in the installation area. Ensure that the
cooling holes of the AC drive cabinet are not blocked.
5) Vibration requirements: Install the servo drive in a place with little vibration. Vibration shall
not be greater than 0.6 g. Keep the servo drive away from devices such as punch presses.
6) Other requirements: Install the servo drive in an environment free from a) direct sunlight,
moisture, and water drops; b) corrosive, inammable, or explosive gases; and c) grease dirt
and dust.

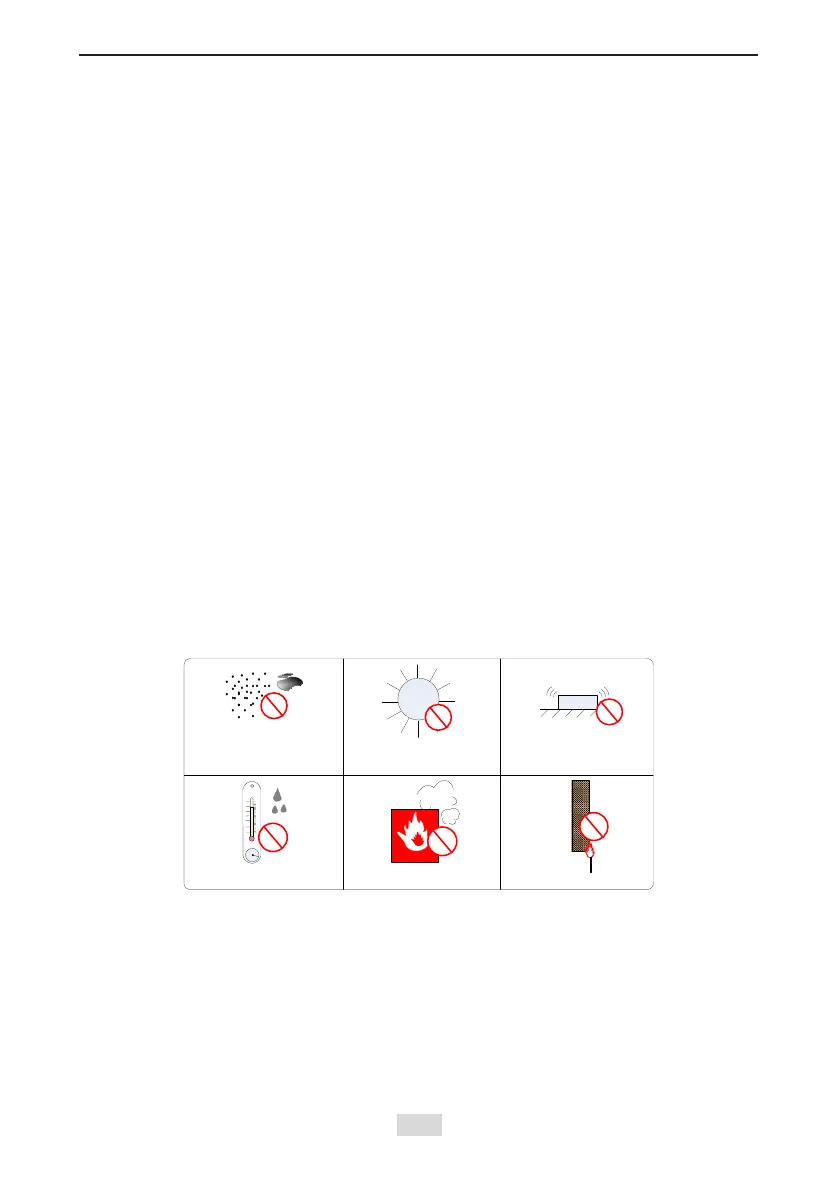

Figure 3-1 Installation environment requirements
7) The drive units must be installed in a reproof cabinet with doors that provide effective
electrical and mechanical protection. The installation must conform to local and regional laws
and regulations, and to relevant IEC requirements.
Dust and grease dirt
Direct sunlight
Strong vibration
The vibration shall not be
greater than 0.6 G.
High
temperature
and humidity
The operating ambient temperature shall
not exceed -10°C to 55°C.
Inflammable, explosive, or corrosive gas
Inflammable
material
Do not install this product on the
surface of inflammable material.
