Grounding the noise lter inside the cabinet
If the noise lter and the servo drive are installed in the same cabinet, x the noise lter and
the servo drive on the same metal plate. Make sure that the contact part is in good conductive
condition, and ground the metal plate properly.

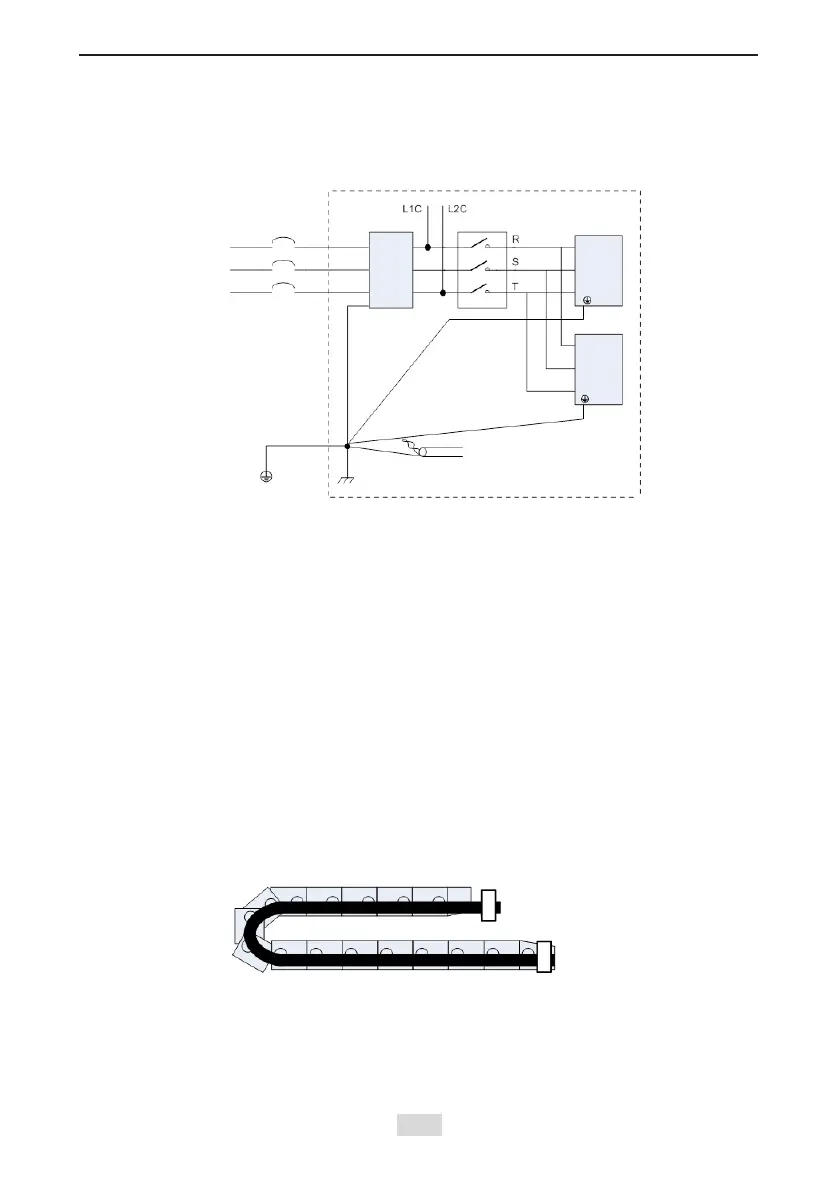

Figure 4-34 Noise lter grounding
4.13 Cablen Use Precautions
• Do not bend or apply stress to cables. The core wire of a signal cable is only 0.2 or 0.3 mm
in diameter. Handle the cables carefully.
• In scenarios where cables need to be moved, use exible cables. Ordinary cables are easily
damaged after being bent for a long time. Cables congured together with low power servo
motors cannot be moved.
• If a cable bear is used, make sure:
1. The bending radius of the cable must be at least 10 times of its outer diameter.
2. Do not fasten or bundle the cables inside the cable bear. The cables can be bundled or
fastened only at the two non-movable ends of the cable bear.
3. Cables must not be wound or warped.
4. The space factor inside the cable bear must not exceed 60%.
5. Do not mix cables that differ greatly in size. Otherwise, thick cables may crush thin cables.
If thick and thin cables need to be used together, place a spacer plate to separate them.
Figure 4-35 Cable bear
AC power supply
Noise
lter
Servo
drive
Servo
drive
Shield grounding
Grounding
Cable bear
Cable end
Cable
