IS810N-INT Series Servo System User Manual (Brief) Chapter 2 Product Information
- 16 -

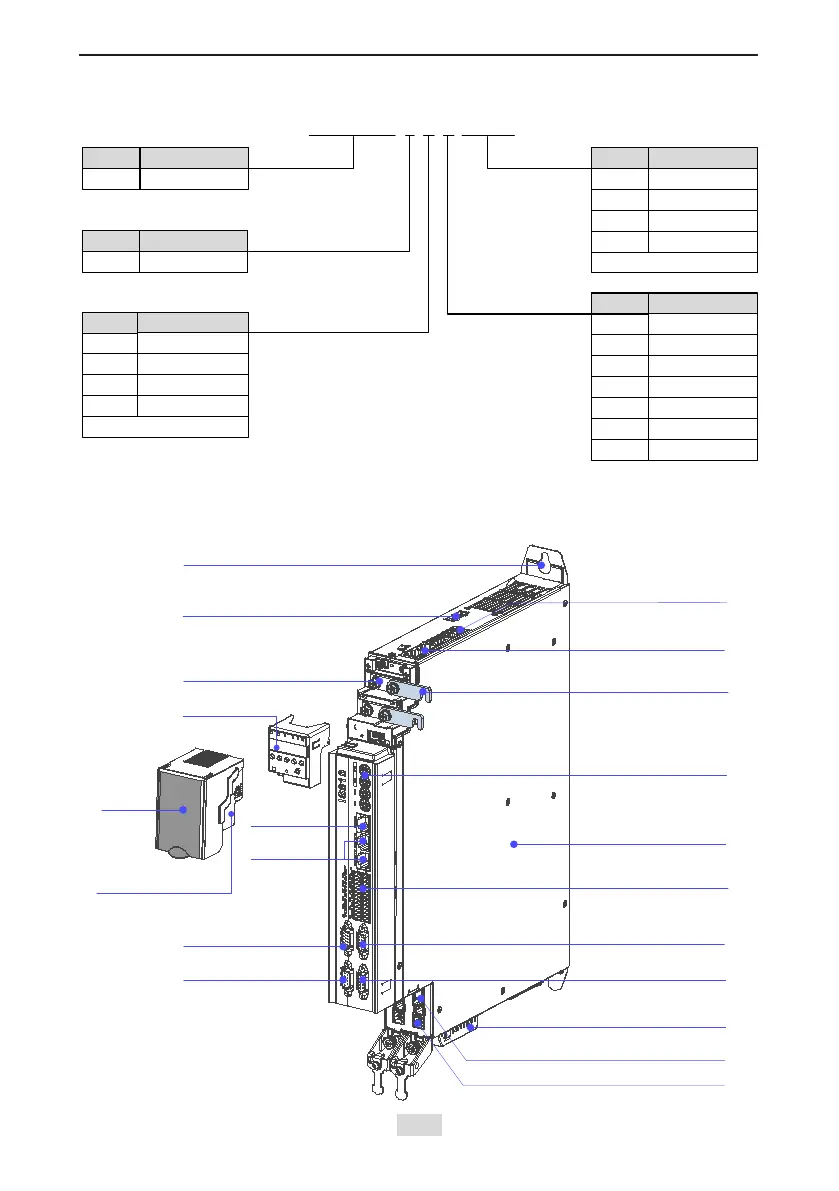

Figure 2-2 Production serial number of drive unit
2.1.2 Components of Drive Unit
01050193 4 H 7 00001
Mark Internal Code
01****** Machine material code
Mark Year
9
2009
Mark Serial Number
The 1
st
set in the current
month
00001
Mark Manufacturer Code
4
Suzhou Inovance
Technology
A 2010
B 2011
……
And so on
Description: I/L/O/Q is not used.
Mark Month
1
Jan.
2 Feb.
3 Mar.
……
*month
A Oct.
B Nov.
C Dec.
Range: 00001 to 99999
The 2
nd
set in the current
month
00002
The 3
rd
set in the current
month
00003
The N
th
set in the current
month
……
Example: (S/N:010501934H700001) The machine manufacturing
date is July 2017.
Bus protective
baffle
Cover
24 V power input
Mounting hole
RJ45 communication terminal
DC busbar
Built-
in busbar
DIDO connection terminal
Body
Full closed-loop Input,
frequency division
output terminal
Encoder cable connection
terminal
Encoder cable connection
terminal
Operating panel
Absolute battery
(optional)
STO terminal
Communication
address hardware DIP
Power cable terminal
Brake output terminal
Full closed-loop Input,
frequency division
output terminal
EtherNET terminal
EtherCAT terminal
Internal CAN
communication terminal
