IS810N-INT Series Servo System User Manual (Brief)Chapter 4 Wiring
4.3.2 PE Connection
Properly ground every device in the system! Connect the power supply unit, drive unit, and
components such as the lter and reactor to the PE copper bar in the cabinet using the star
connection method, as shown in the following gure:

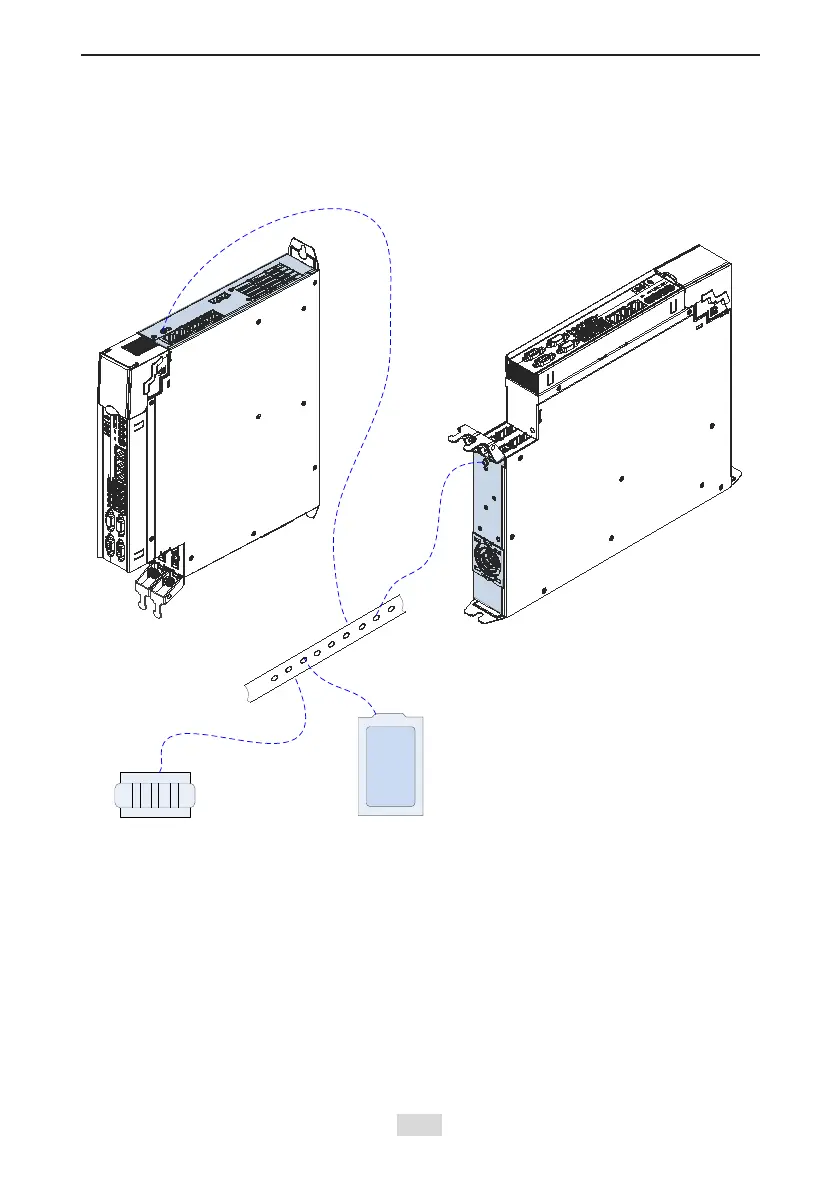

Figure 4-2 PE connection
