IS810N-INT Series Servo System User Manual (Brief) Chapter 3 Installation
- 66 -
● Cooling
Make sure that the servo drive is installed vertical to the wall. Cool the servo drive with natural
convection or a cooling fan.
As shown in the preceding gure, keep sufcient space around the servo drive to ensure
cooling by fans or natural convection. Install the cooling fans above the servo drive to avoid
an excessive temperature rise and maintain an even temperature inside the control cabinet.
● Grounding
The grounding terminal must be properly grounded. Failure to comply may cause electric
shocks or malfunction due to interference.
● Cable routing requirements
When cabling the servo drive, route the cables downward (refer to the following gure) to
prevent liquid from owing into the servo drive along the cables.

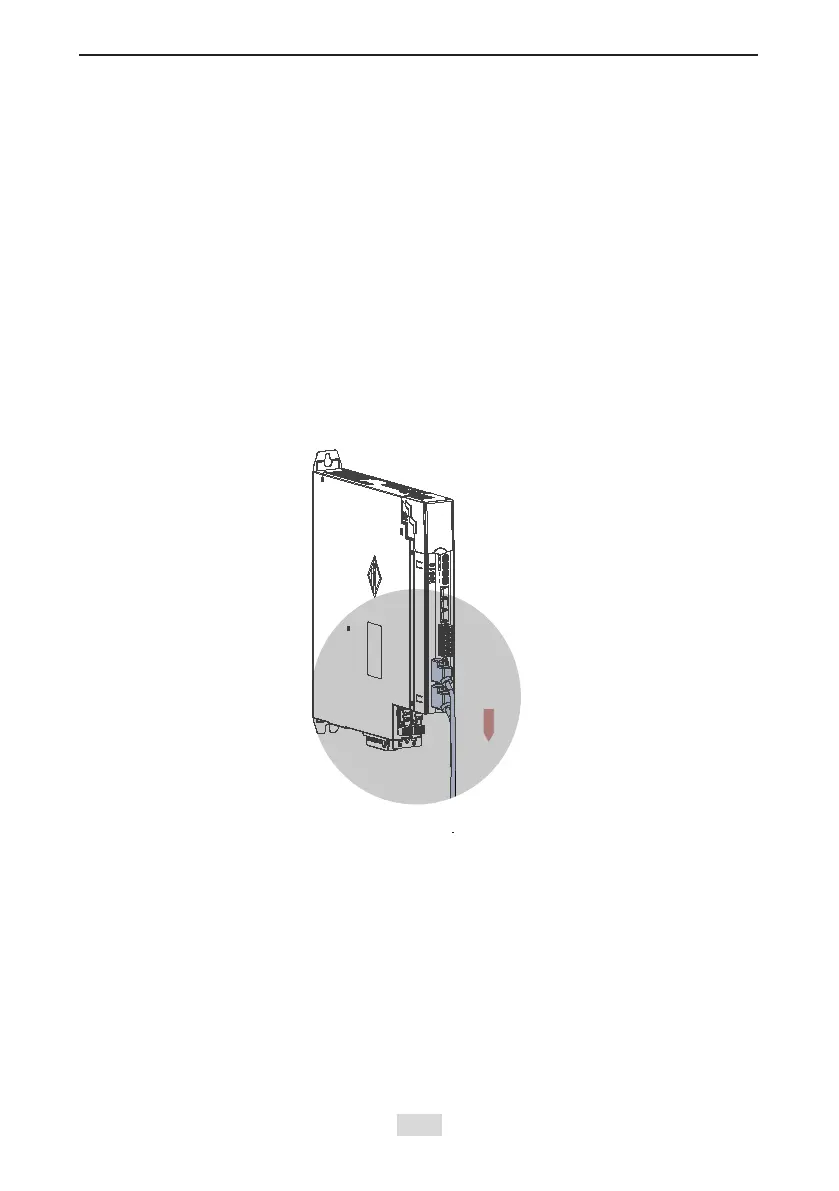

Figure 3-10 Cable routing requirements
Make the cable outlet face
downward
