Inovance IS810N-INT Series - Page 216

IS810N-INT Series Servo System User Manual (Brief) Chapter 6 Commissioning Software
- 216 -

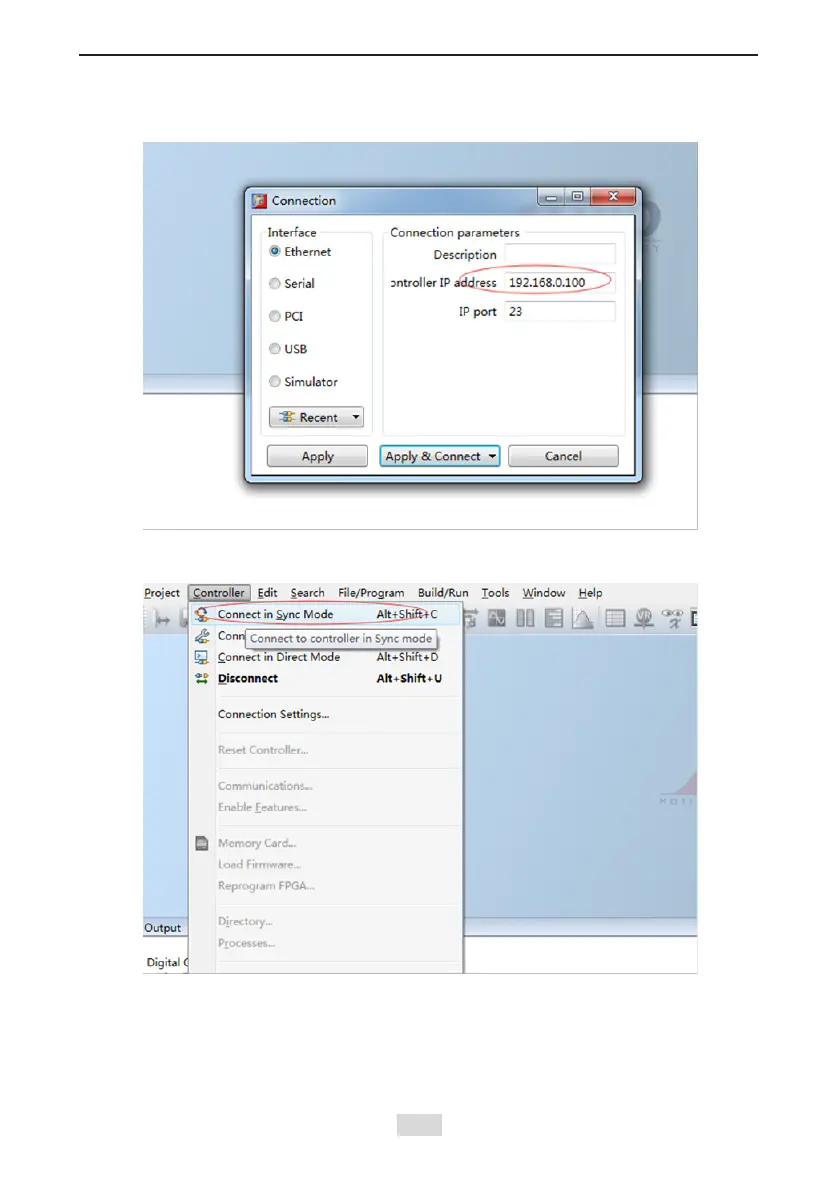

5. Change the IP address on motion perfect to that displayed on the LCD of the controller.
Figure 4
6. Click the
Connect in Sync Mode
button, as shown in the following gure.
Figure 5
