Inovance IS810N-INT Series User Manual

IS810N-INT Series Servo System User Manual (Brief) Chapter 3 Installation
- 76 -

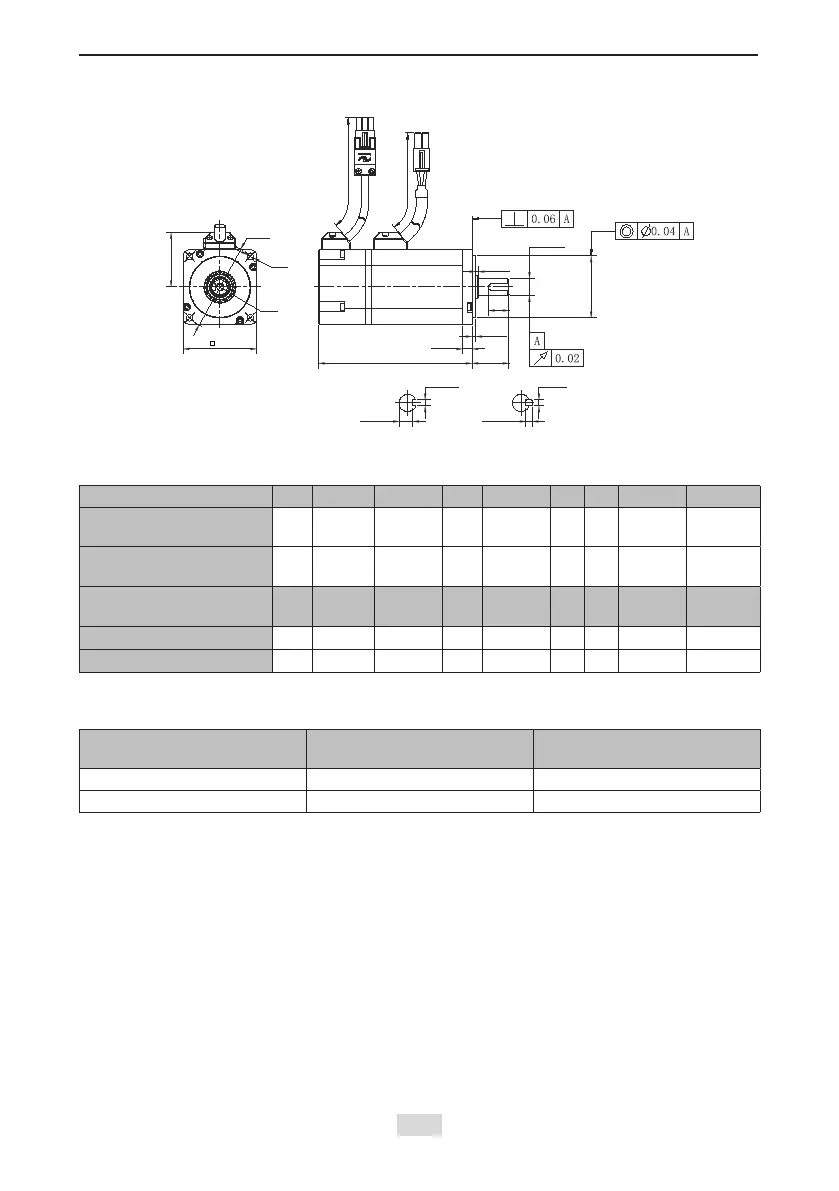

5) Overall Dimensions of the ISMH4 Servo Motor Series (400 W, 750 W)
LC
LZ
φLA
TP
LH
500
500
KW N9 W h8
T h8
KH
LL
LG
LE
LR
LJ
φS
h6
φLB
h7
LK
Shaft end dimensions Keyed shaft end dimensions
Motor Model LC LL LR LA LZ LH LG LE LJ
ISMH4-40B30CB-****Z 60
125
(165)
30±0.5 70 4-φ5.5 44 7.8 3±0.3 0.5±0.35
ISMH4-75B30CB-****Z 80
146.5
(184.5)
35±0.5 90 4-φ7 54 8 3±0.3 0.5±0.35
Motor model LB S TP LK KH KW W T
Weight
(kg)
ISMH4-40B30CB-****Z 50 14 M5×8 16.5 11
0
-0.1
5 5 5 1.7 (2.0)
ISMH4-75B30CB-****Z 70 19 M6×20 25 15.5
0
-0.1
6 6 6 2.9 (3.3)
Note: The dimension unit is mm. The values shown in () are values of servo motor with a
holding brake.
Connector
Power Side
(Power Brake Side Included)
Encoder Side
Plastic housing MOLEX-50361672 AMP172169-9
Terminal MOLEX-39000059 AMP1473226-1
