Micromate Operator Manual – 721U0201 Revision 6 7
2) For this example make the changes to the current Setup File, listed above, using the touch
screen or keypad Arrow and Check Mark keys.
3) Press the Save icon to save any changes that you have made.
4) To exit the Setup screen and return to the Ready to Monitor screen, press the Cancel icon
or Cancel key.

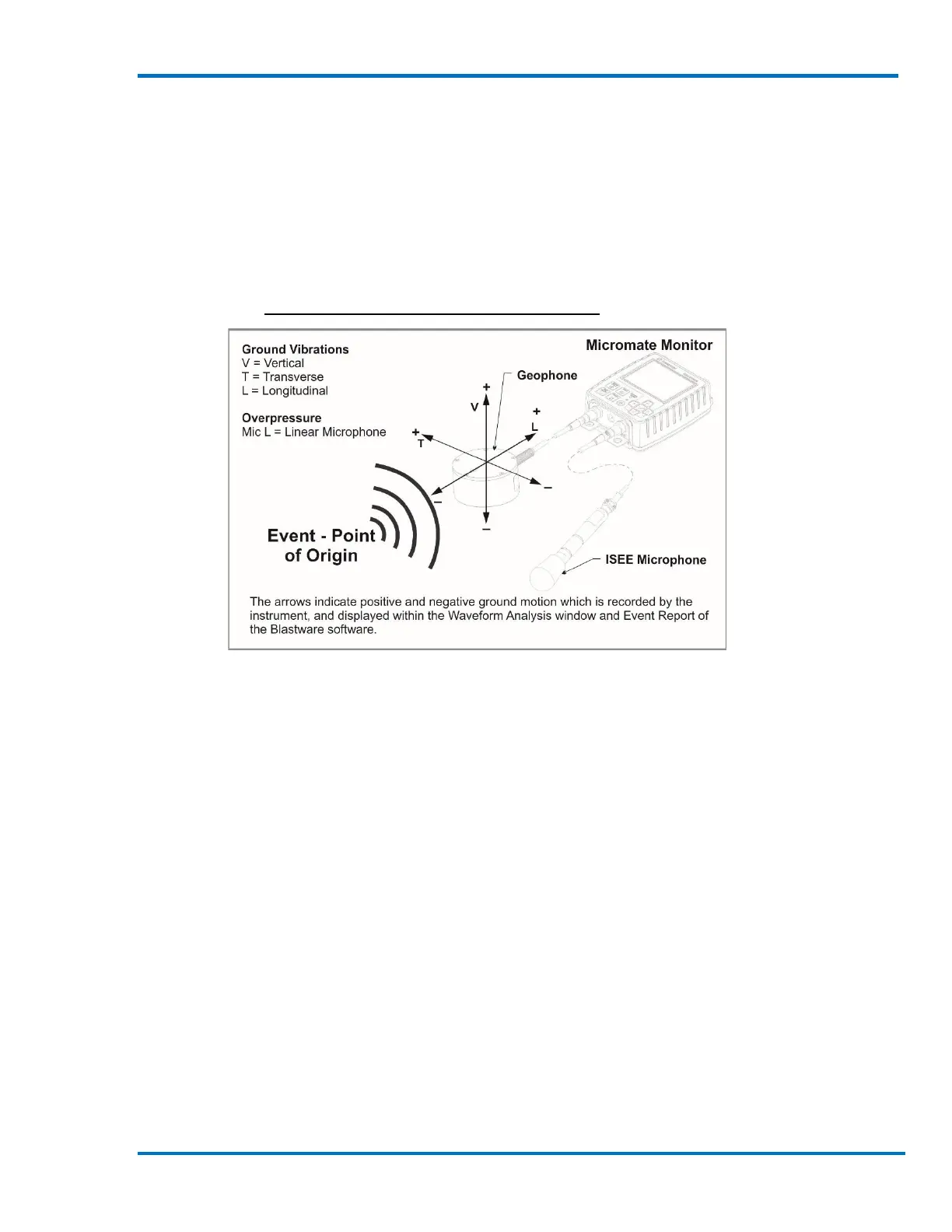

Step 4: Position the Sensors
Refer to section 14 Installing the Geophone and Microphone for additional information.
Step 5: Perform a Sensor Check
1) Confirm that sensors (geophone or microphone or both) are properly leveled and connected to
the Micromate. Ensure cable connections are properly seated.
2) Run Sensor Check: Press the sensor check button on the key pad or touch the sensor check
icon on the touch screen. The Micromate will now confirm that sensors are ready for
monitoring by displaying a message indicating that sensors have “passed” as shown below.
NOTE: The sensor check feature must be manually initiated. Instantel strongly recommends
that sensor check be used before entering monitor mode.
