VIsualEyes 515/525 - Additional Information Page 71

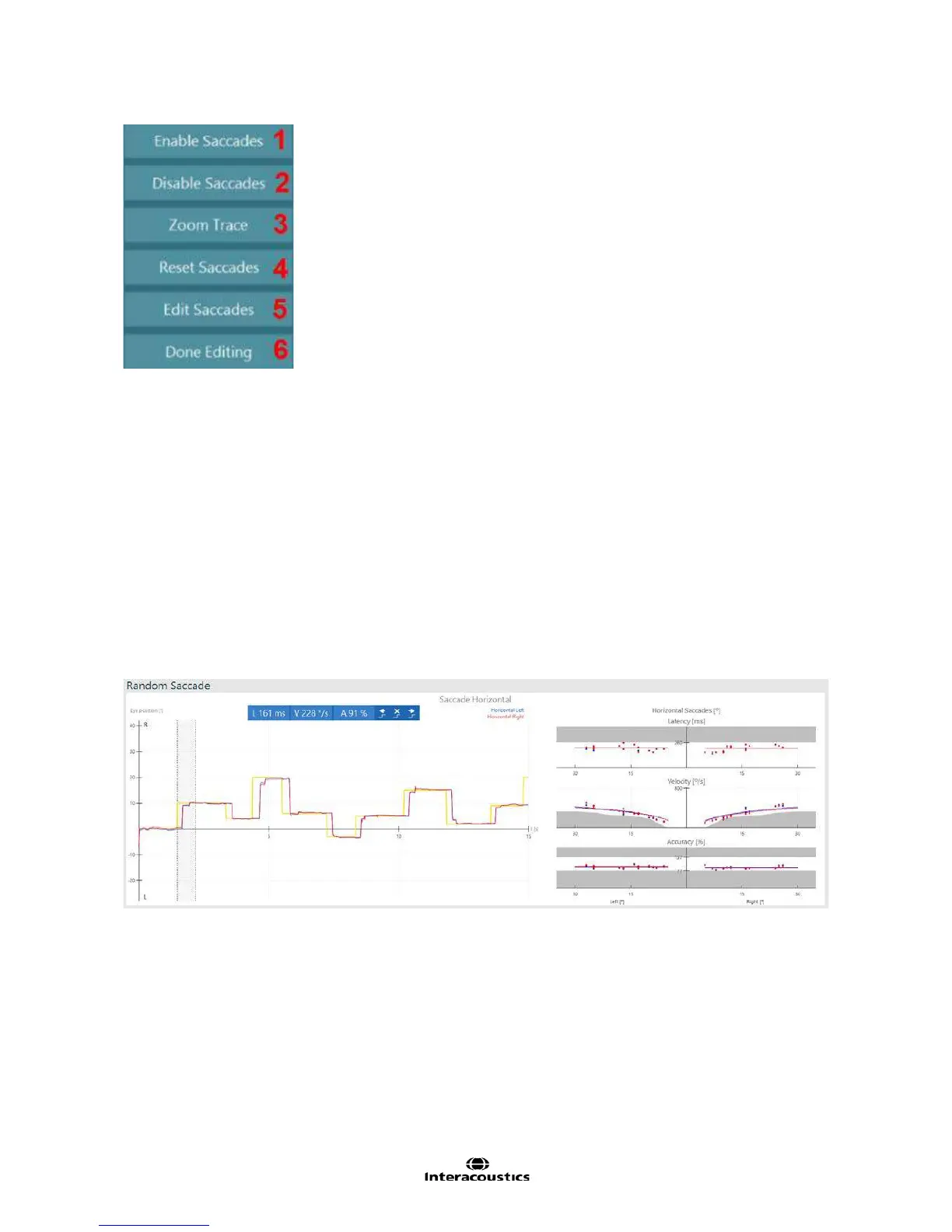

Figure 6.5.2 Saccade editing tools
1. Click or touch the Enable Saccades button. The selection box that the user creates on the
waveform will enable any saccades that were disabled the analysis.
2. Click or touch the Disable Saccades button. The selection box that the user creates on the
waveform will disable any saccades and remove them from the saccade analysis.
3. Click or touch the Zoom Trace button. Click or touch on a spot on the waveform to magnify that
area by 2X (in time and amplitude). Select another spot or select the Zoom Trace button again to
exit magnification.
4. The Reset Saccades button discards the user’s edits and returns the waveform to the original
software analysis.
5. The Edit Saccades button highlights the first visible saccade in the waveform and displays the
individual saccade results in the editing toolbar (latency, velocity, and accuracy). Use the previous
saccade and next saccade buttons or the left and right arrows on the keyboard to move through the
saccades. Use the disable / enable saccade button to toggle the saccade from the analysis. To
switch between the left and right eye saccades (if the saccades are not split in separate graphs),
select one of the three analysis results in the editing toolbar. Select the Edit Saccades button again
to exit editing.
Figure 6.5.3 Saccade Editing
6. Select the Done Editing button to exit the editing tools and keep the edits to the saccade analysis.
