VIsualEyes 515/525 - Additional Information Page 68

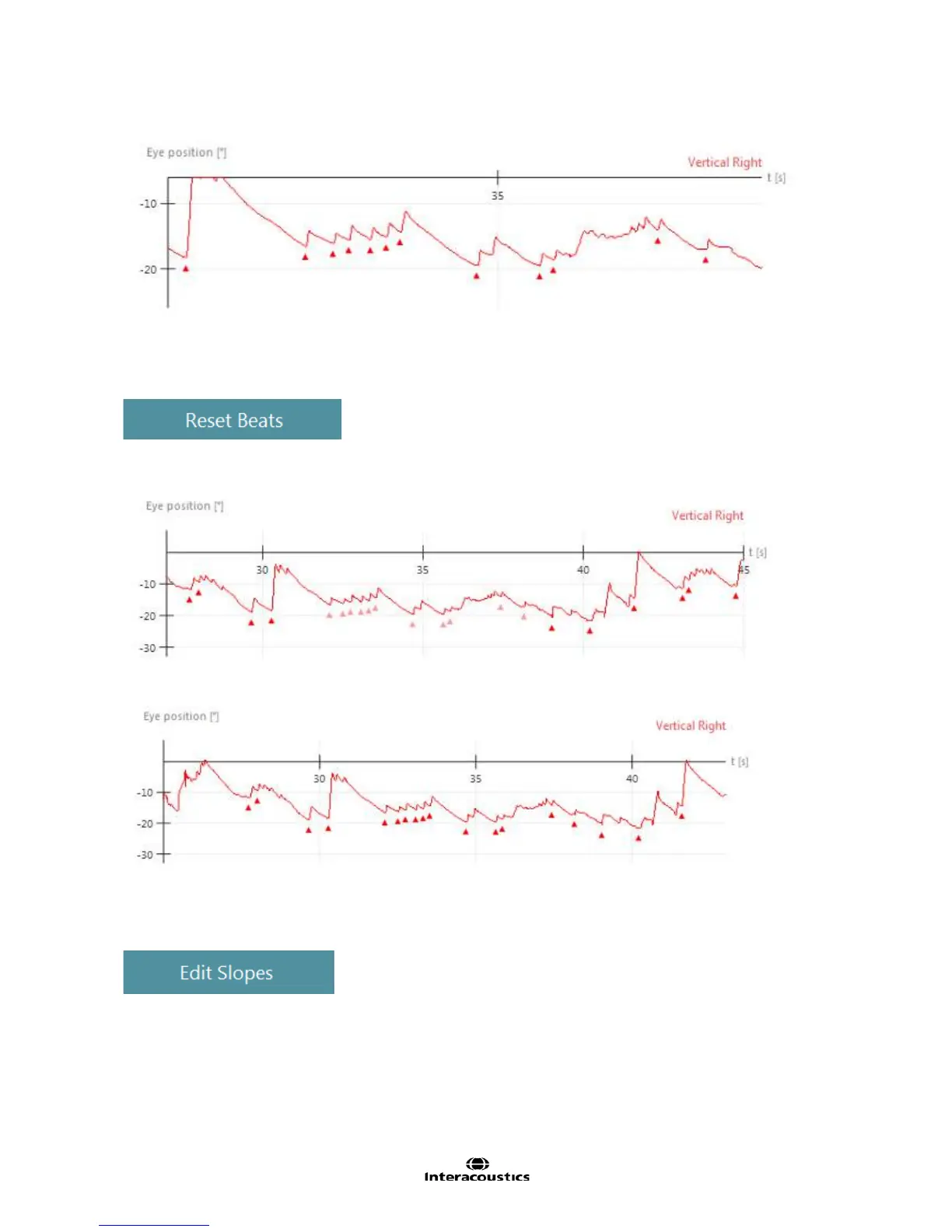

Figure 6.4.6 Gaze test Right 30 degrees 2X magnification (time and amplitude)
6.4.4 Reset Beats
This feature resets the waveform back to the original software analysis. (Figure 6.4.7 and Figure 6.4.8).
• By selecting this tool all data altered will return to its original software analysis
Figure 6.4.7 Nystagmus waveform with removed beats
Figure 6.4.8 Nystagmus reset to original software analysis
6.4.5 Edit Slopes
This function enables overriding the current slope measurement and toggle inclusion of the nystagmus beat
in analysis.
• Selecting the tool the slope of the nystagmus beat will be highlighted in bright green (Figure 6.4.9)
