SECTION 15—TRANSPORT READY OPTION
ProSPIN™ X4™ 100 Part No 1125104
Vehicle-Anchored Belts
NOTE:Forthisprocedure,refertoFIGURE15.3.
Thiswheelchairhasanoverallratingof“B”withregardtoaccommodatingtheuseand
fitofvehicle‐anchoredbelts.Thisratingisscoredasfollows:
ThetestforLateralStabilityDisplacementforPoint(P)isshowninFIGURE15.3.The
averagetestresultforpoint(P)is0.77‐inches(19.6mm).

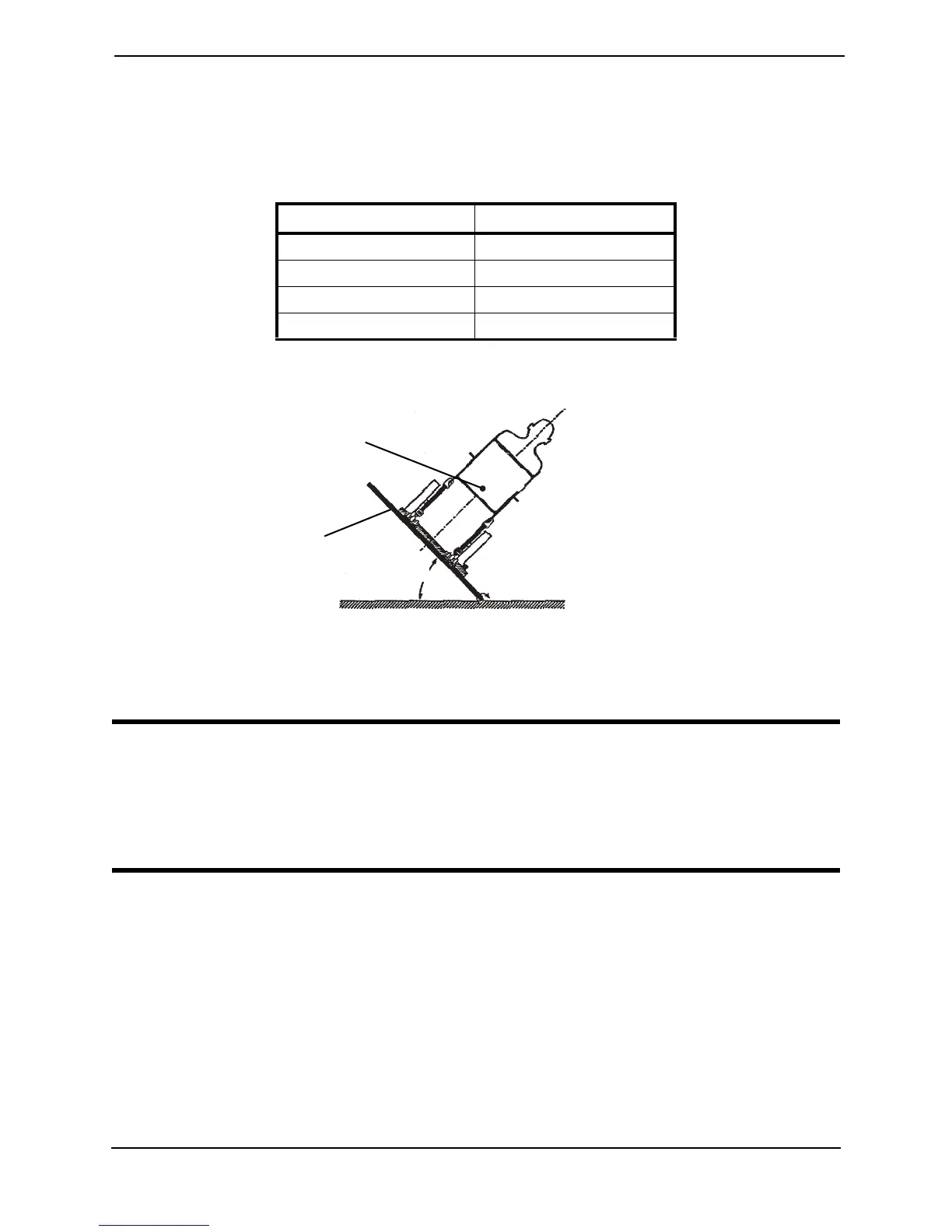

FIGURE 15.3 Vehicle-Anchored Belts
Seating System
 WARNING
This wheelchair has been tested for seating in a motor vehicle with the factory
installed seating system only.
When feasible, wheelchair occupants should transfer into the vehicle seat and use
the OEM (Original Equipment Manufacturer) vehicle-installed restraint system.
Ensurethatthefactoryinstalledseatingsystemissecuredtothewheelchairframebefore
operation.Refertotheseatingsystemowner’smanual.
RATING DESCRIPTION
A Excellent
B Good
C Fair
D Poor
NOTE:Rearviewof
wheelchairandhuman
surrogatesecuredontest
platformandtiltedto45
degrees.
Rear View
Test
Platform
Point (P)
45°
