SECTION 14—SEAT-TO-FLOOR HEIGHT
Part No 1125104 91 ProSPIN™ X4™
SECTION 14—SEAT-TO-FLOOR
HEIGHT
 WARNING
After ANY adjustments, repair or service and before use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
Seat Dump
NOTE:Forthisprocedure,refertoFIGURE14.1.
NOTE:RefertoMeasuringSeat‐to‐FloorHeightonpage 92formeasuringinstructions.
NOTE:Invacarerecommendsthattherearseat‐to‐floorheightbeATLEAST3/8‐inchshorterthan
thefrontseat‐to‐floorheight.Otherwiseaforwardseatdumpcanoccur.
Subtracttherearseat‐to‐floorheightmeasurementfromthefrontseat‐to‐floorheight
measurementtodeterminetheamountofseatdumpasshownintheexamplein
FIGURE14.1.

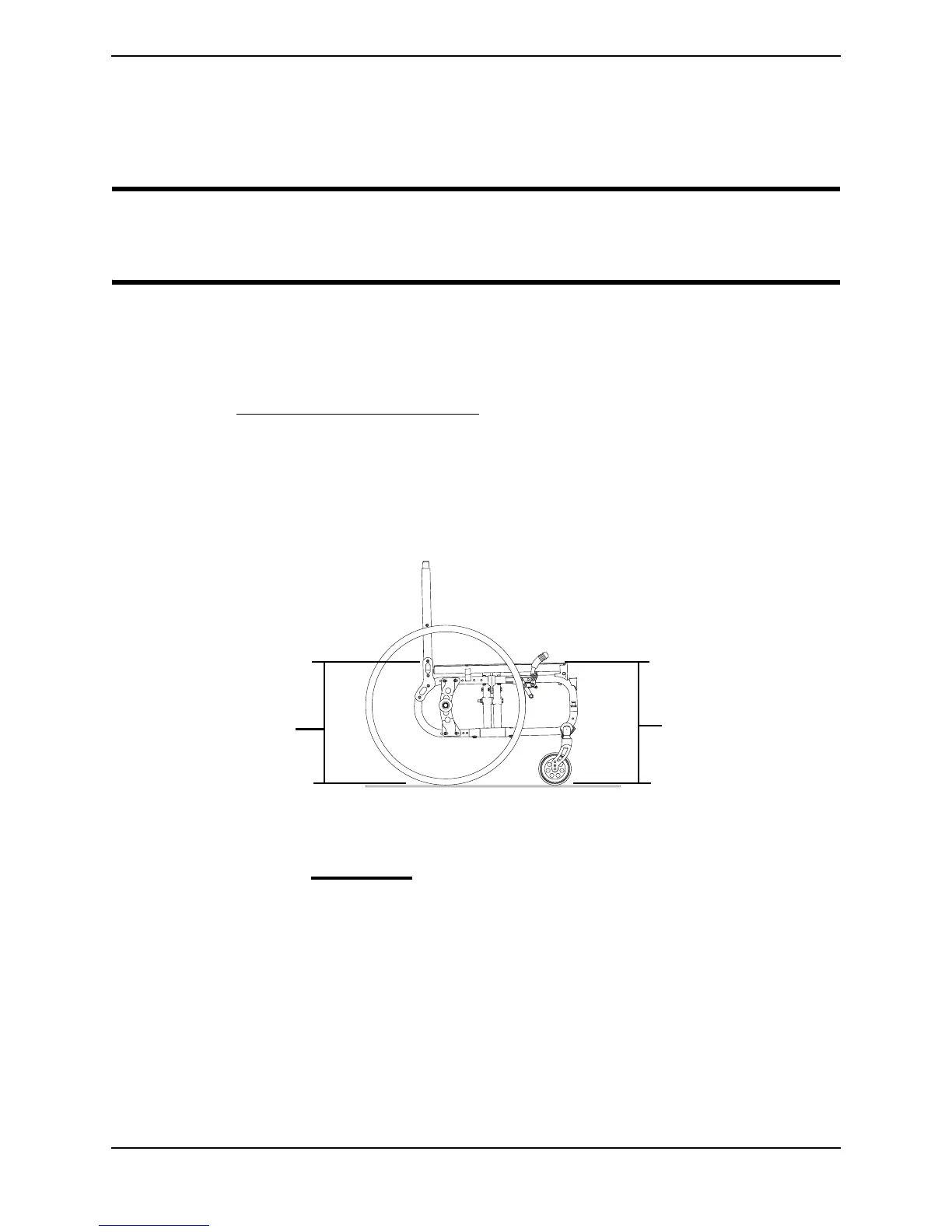

FIGURE 14.1 Seat Dump
Example:
18¾ inches Front Seat-to-Floor Height
- 17 inches Minus Rear Seat-to-Floor Height
1¾ inches Equals Seat Dump
Front
Seat-to-Floor Height
Rear
Seat-to-Floor Height
