Invacare ProSPIN X4 - Adjusting Adjustable Angle Flip-up Footplates

SECTION 7—FRONT RIGGINGS
ProSPIN™ X4™ 42 Part No 1125104
Adjusting Adjustable Angle Flip-up Footplates
 WARNING
When determining the angle of the footplates, make sure the rear of the footplates
DO NOT interfere with the movement of the front casters. Otherwise, injury or
damage may occur.
NOTE:Forthisprocedure,refertoFIGURE7.3.
Adjusting Depth
1. Removethetwoflatscrewsandlocknutsthatsecurefootplatetothehalfclamp.
NOTE:Observetheangleofthefootplateforreinstallation.
2. Movethefootplatetooneoffourmountingpositions.
NOTE:Ifdesireddepthisstillnotobtained,rotatethehalfclamponthefootplatehinge180°.
3. Tightenthetwoflatscrewsandlocknuts.
NOTE:Thesettingforpositioningthefootplateonthehalfclampmayvaryforeachfootplate.
4. RepeatSTEPS1‐3foroppositefootplate,ifdesired.
Adjusting Angle
1. Loosen,butDONOTremove,theadjustmentscrewinthehalfclamp.
2. Positionthefootplatetothenecessaryangletoaccommodatetheuser(DetailʺAʺof
FIGURE7.3).
3. Retightentheadjustmentscrew.Torquetoover90in‐lbs,butnomorethan300in‐lbs.
4. RepeatSTEPS1‐3foroppositefootplate,ifdesired.

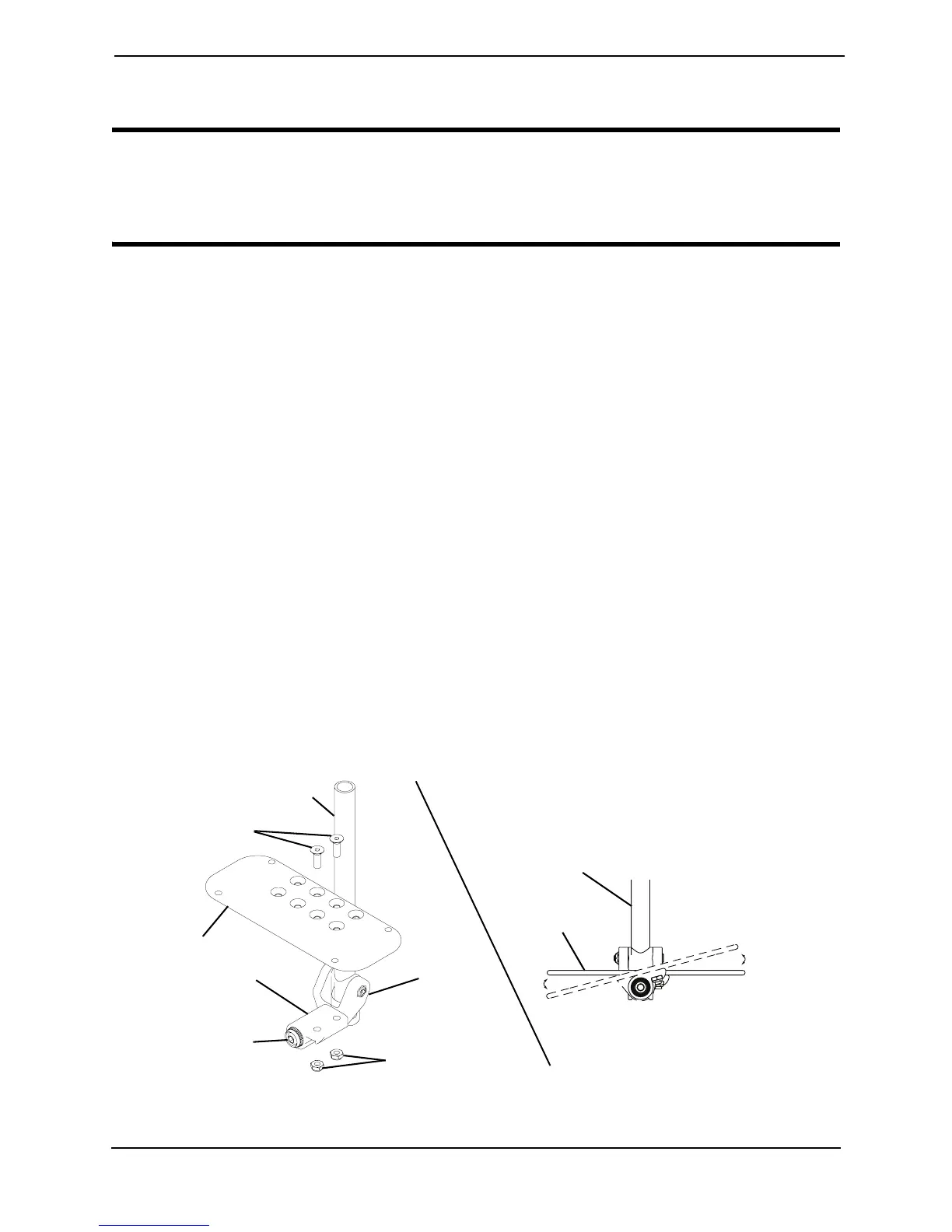

FIGURE 7.3 Adjusting Adjustable Angle Flip-up Footplates
90° Footrest Support
Locknuts
Footrest Support
Footplate
Adjustment Screw
Flat Screws
Half
Clamp
Footplace
Footplace
Hinge
DETAIL "A" - SIDE VIEW OF
FOOTPLATE AND
FOOTREST SUPPORT
