SECTION 14—SEAT-TO-FLOOR HEIGHT
ProSPIN™ X4™ 94 Part No 1125104
Changing Rear Seat-to-Floor Height
NOTE:Forthisprocedure,refertotableRearSeat‐to‐FloorHeighttodetermineadjustment(s)
necessarytoachievedesiredrearseattofloorheight.
NOTE:Inordertoobtainthedesiredrearseattofloorheight,itwillbenecessarytoperform
oneorbothofthefollowing:
• Changingtherearwheelsizeand/ormountingpositiononthefork.Referto
Removing/InstallingRearWheelsonpage 67.
• Changingtheaxlebushingand/ortheaxleplateposition.Referto
Removing/Installing/RepositioningtheAxleBushingand/orAxlePlate
onpage 72.

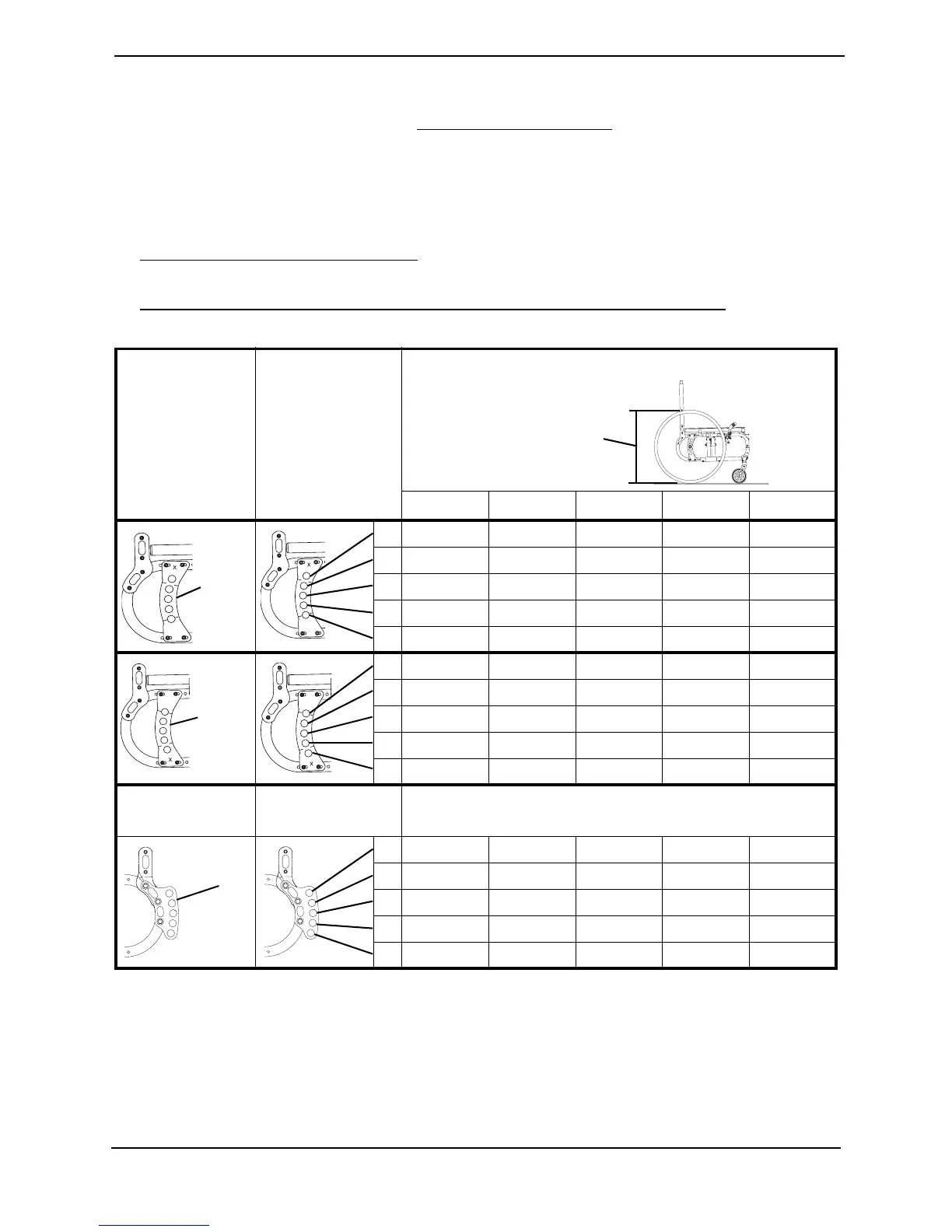

REAR SEAT-TO-FLOOR HEIGHT
*NOTE:Seat‐to‐floorheightsareshownininches.
AXLE PLATE
POSITION
AXLE BUSHING
LOCATION
REAR WHEEL SIZE/SEAT-TO-FLOOR HEIGHT*
20-INCH 22-INCH 24-INCH 25-INCH 26-INCH
1 13.5 14.5 15.5 16 16
2 14.5 15.5 16.5 17 17
3 15.5 16.5 17.5 18 18
4 16.5 17.5 18.5 19 19
5 17.5 18.5 19.5 20 20
614151616.516.5
715161717.517.5
816171818.518.5
917181919.519.5
10 18 19 20 20.5 20.5
AMPUTE
BRACKET
AXLE BUSHING
LOCATION
REAR WHEEL SIZE/SEAT-TO-FLOOR HEIGHT
WITH AMPUTEE BRACKET*
1 13.5 14.5 15.5 16 16
2 14.5 15.5 16.5 17 17
3 15.5 16.5 17.5 18 18
4 16.5 17.5 18.5 19 19
5 17.5 18.5 19.5 20 20
Rear Wheel Size
Axle
Plate
UP
Axle
Plate
DOWN
Amputee
Bracket
