SECTION 10—SEAT
Part No 1125104 63 ProSPIN™ X4™
SECTION 10—SEAT
 WARNING
After ANY adjustments, repair or service and before use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
Replacing Seat Upholstery
NOTE:Forthisprocedure,refertoFIGURE10.1.
1. Removetheseatcushion,ifnecessary,fromthewheelchair.
NOTE:Numberofmountingscrewswillvarydependingonseatdepth.
2. Removethemountingscrewsthatsecuretheexistingseatupholsterytotheseat
frame.
3. Removetheexistingseatupholstery.
4. InstallthenewseatupholsterybyreversingSTEPS1‐3.
5. Ifnecessary,reinstalltheseatcushionontothewheelchair.

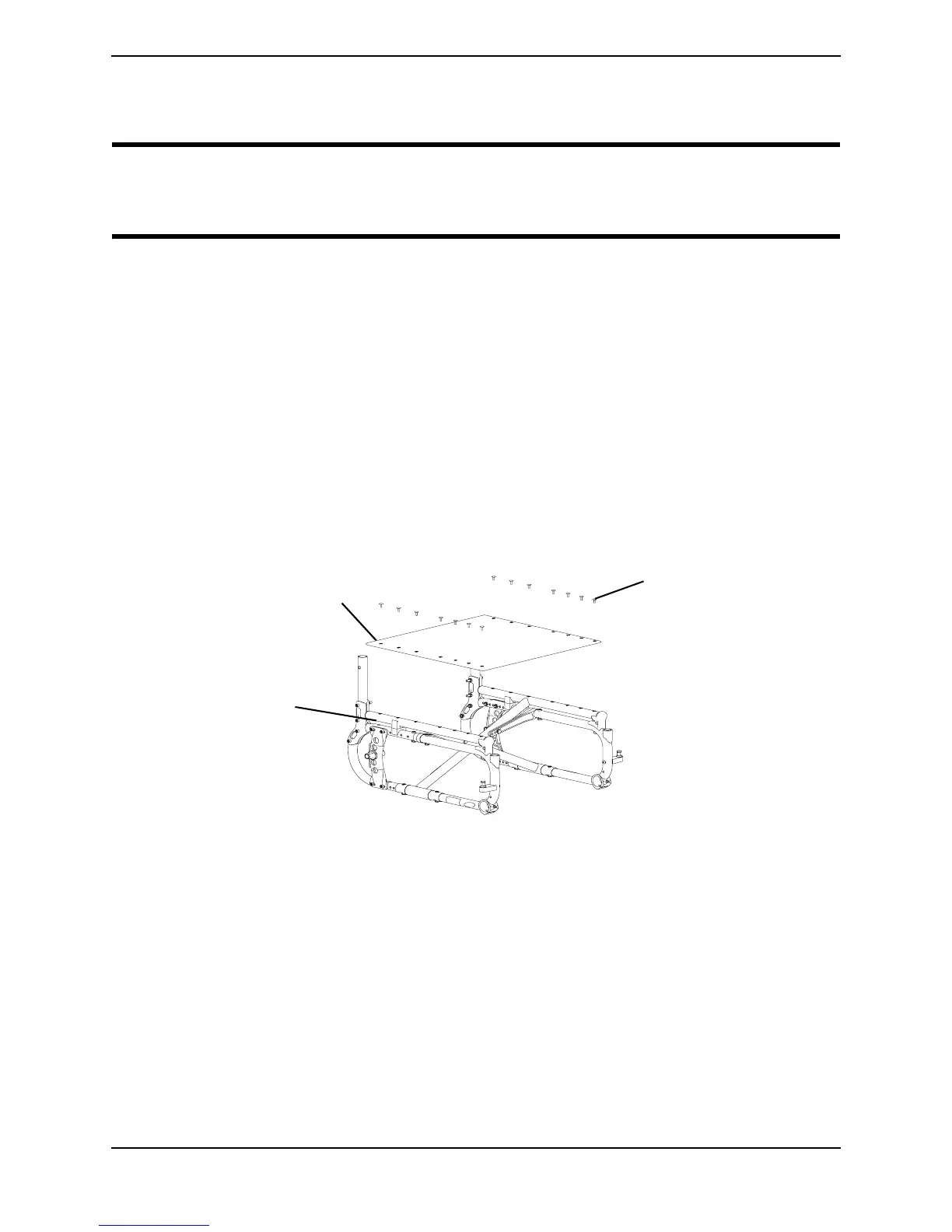

FIGURE 10.1 Replacing Seat Upholstery
Seat Frame
Seat Upholstery
Mounting Screws
