3.

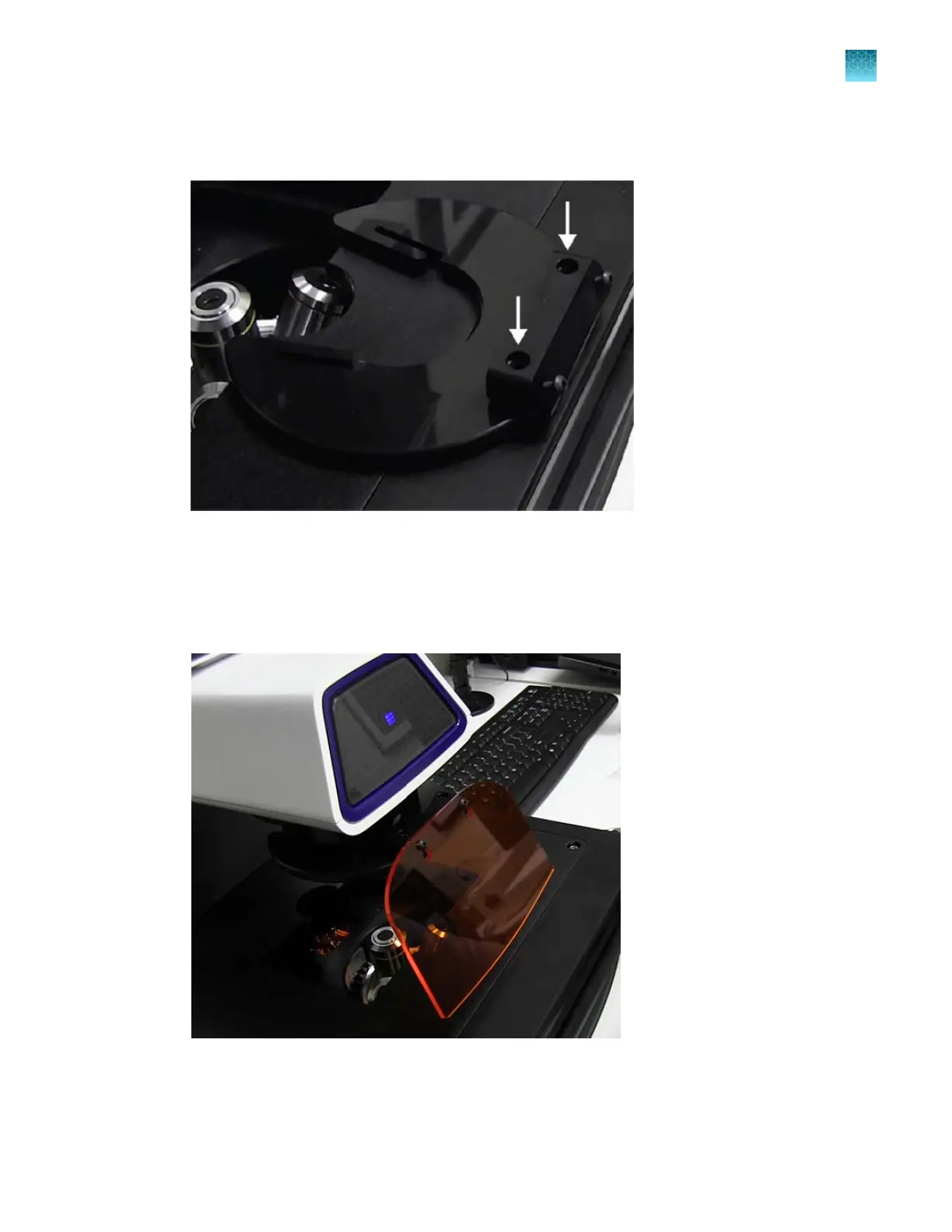

Secure the UV light shield mount to the top of the condenser light shield using the two screws and
2 mm hex key supplied with the UV shield assembly (not the protruding screws on the mount).
4.
Clip the condenser light shield with the attached UV light shield mount back onto the condenser
head.
5.
Peel the protective paper from the UV light shield, then slide the orange UV light shield over the
two pr
otruding screws on light shield mount to attach it to the instrument.
