2. Installation Procedures
¾ inch
Unpacking the Instrument
Carefully remove the instrument from the shipping container. Remove all
packing material from inside the instrument surrounding the SPA, the
microscope and the waste well.

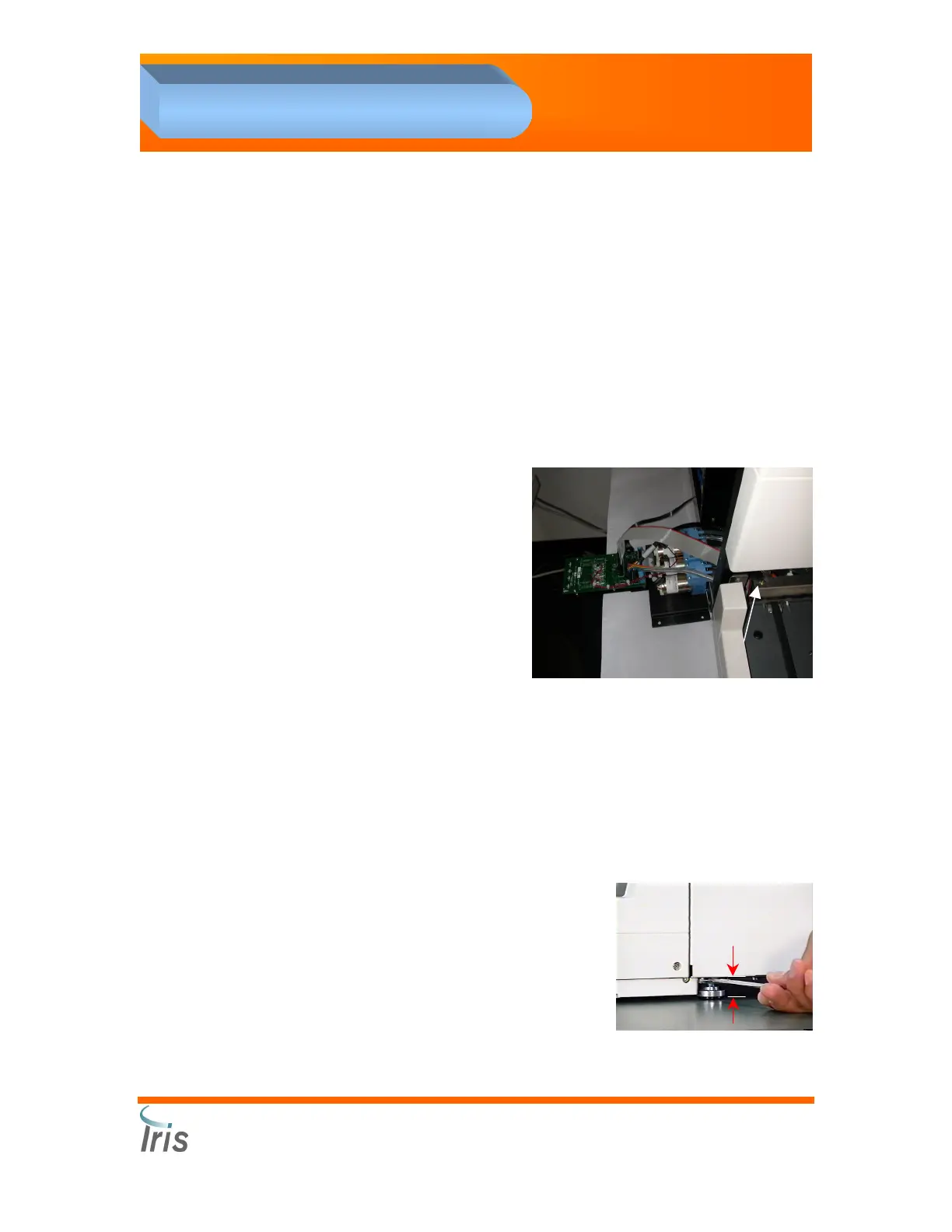

Connecting the Sampler
In order to protect the Analyzer and Sampler from damage during
transport, each section is secured with tape. Follow the procedure below
before installing the unit.
1. Remove the left side panel of
the analyzer and the EMI
shielding panel.
2. Remove the four screws
securing the STM SIC and
diaphragm pumps.
3. Connect the grey ribbon cable
from the sampler to J01 on
PCBA 101-5014 STM SIC.
4. Connect the multi-colored
wiring cable to J02 on PCBA
101-5014 STM SIC.
5. Connect the black specimen tube detector cable to J9 on PCBA 101-
5014 STM SIC.
6. Connect the ground cables to the chassis of the microscopy module.
7. Insert the hooks of the sampler into the slots of the analyzer. Be
careful not to catch the cables.
8. Reattach the STM SIC and diaphragm pumps to the chassis.
Adjust the Height of the Analyzer
• Using a 7/16” wrench, loosen the
locking nuts located under the
analyzer.
• Adjust the height of the Sampler by
rotating the feet. The space between
the bench top and the analyzer must
be ¾ inch.
• After adjusting the height, tighten the
locking nuts.
