4. Adjustments
Test Tube depth positioning

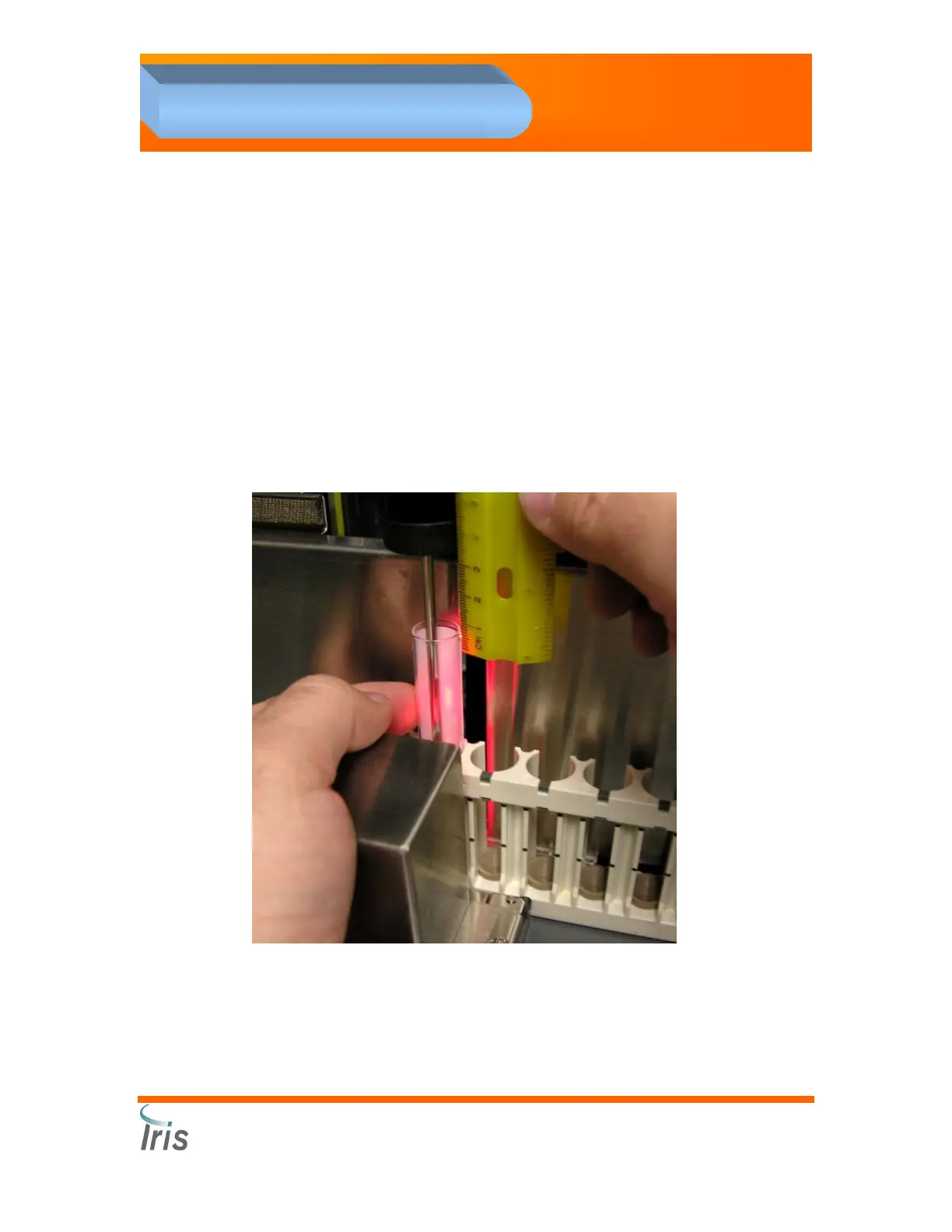

SPA pipette depth calibration check:
1. On the Service Application’s SPA “HVL Sequences” branch, click on
“P0” pipette home and rotate to the tube
2. Then click on “P0” pipette home and rotate to the tube
3. Then click on “P1” pipette down to tube – during this sequence you
should check that the pipette descended down with only 3mm
clearance with a tolerance of +/- 0.5mm.
4. Then click on “P2” pipette up and rotate and down to waste well and
finally up from waste well.
