4. Adjustments
Collimation
What is a Collimation?
Collimation is the adjustment of the alignment of each optical element
with regard to the others. The collimation is a way of improving
considerably the optical performance. No high-resolution result can be
obtained without an near perfect collimation, since image processing is
incapable of compensating for the damages caused by a misalignment.
Condenser Alignment
1. Open the Service application.

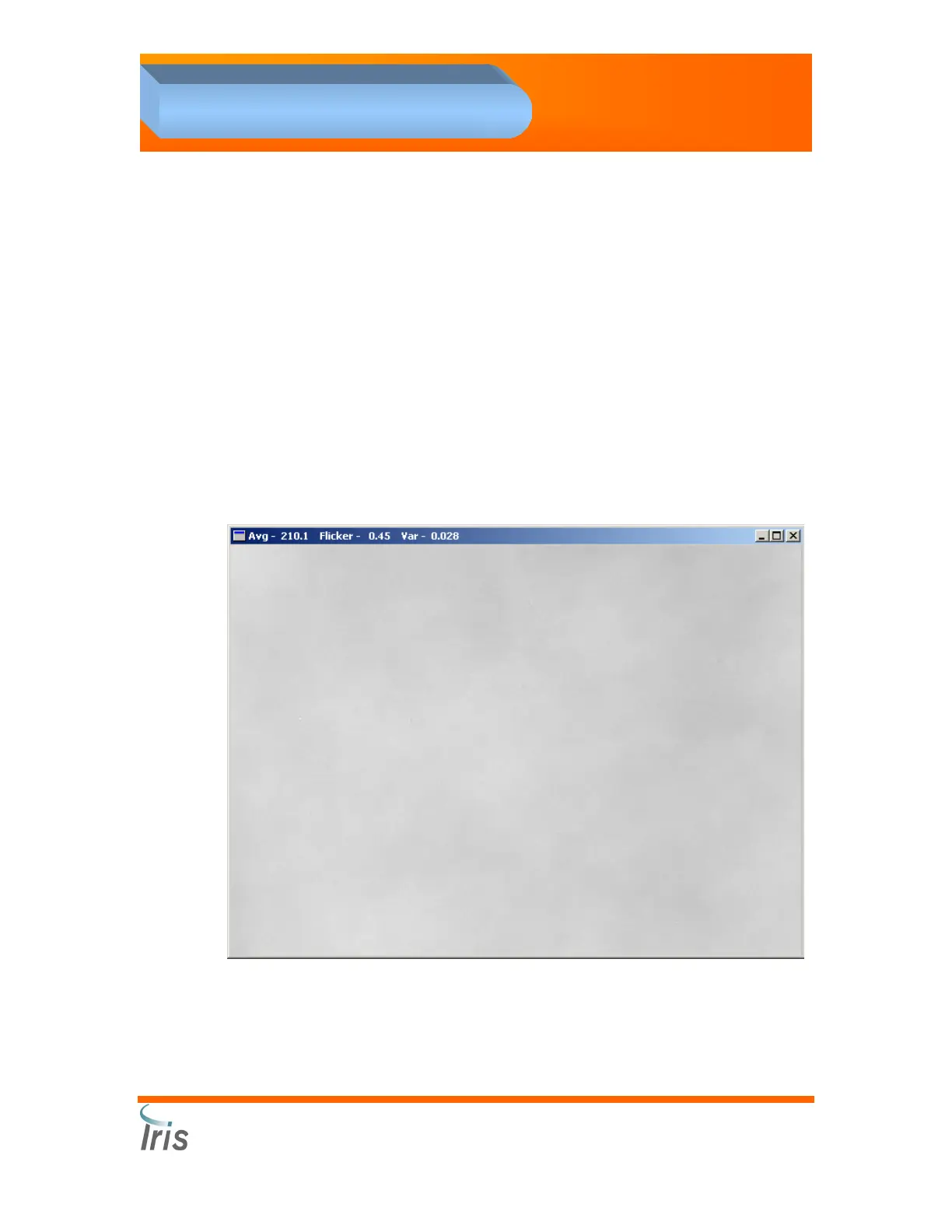

2. From the Service application, click on View then Video to display the
live video.
3. In Video View, the Avg light should be about 210 and the Var. should
be lower than .035.
