Iris Diagnostics, a Division of Iris International, Inc.
iQ
®
200 Sprint™ (2G) Automated Urine Microscopy Analyzer Service Manual 300-4949 Rev A 01/2005 2-20
2. Installation Procedures
Load Station - AX-4280 Connection
1. Remove the right side cover from the AX-4280 sampler.
2. Break the tab on the side cover to allow the rack to transfer from the
Load Station to the Sampler.
3. Disconnect and remove the optical sensor from the right side of the
sampler.
4. Unplug connector # S2-22 (white label) from the circuit board and
replace with connector# S2-22 (side sampler) stored in the bottom of
the sampler. Push the sensor cable inside the sampler cover.
5. Remove the metal base plate from the STAT station.
6. Extract the sensor cable located on the right side of the STAT holder.
7. Install the new metal base plate, (included in with the load station) in
the STAT station, passing the sensor cable through the hole on the
right of the plate.
8. Attach the new metal base plate using the screws from the original
plate.
9. Remove the black optical sensor from the mounting bracket, and
connect it to the sensor cable at the STAT station.

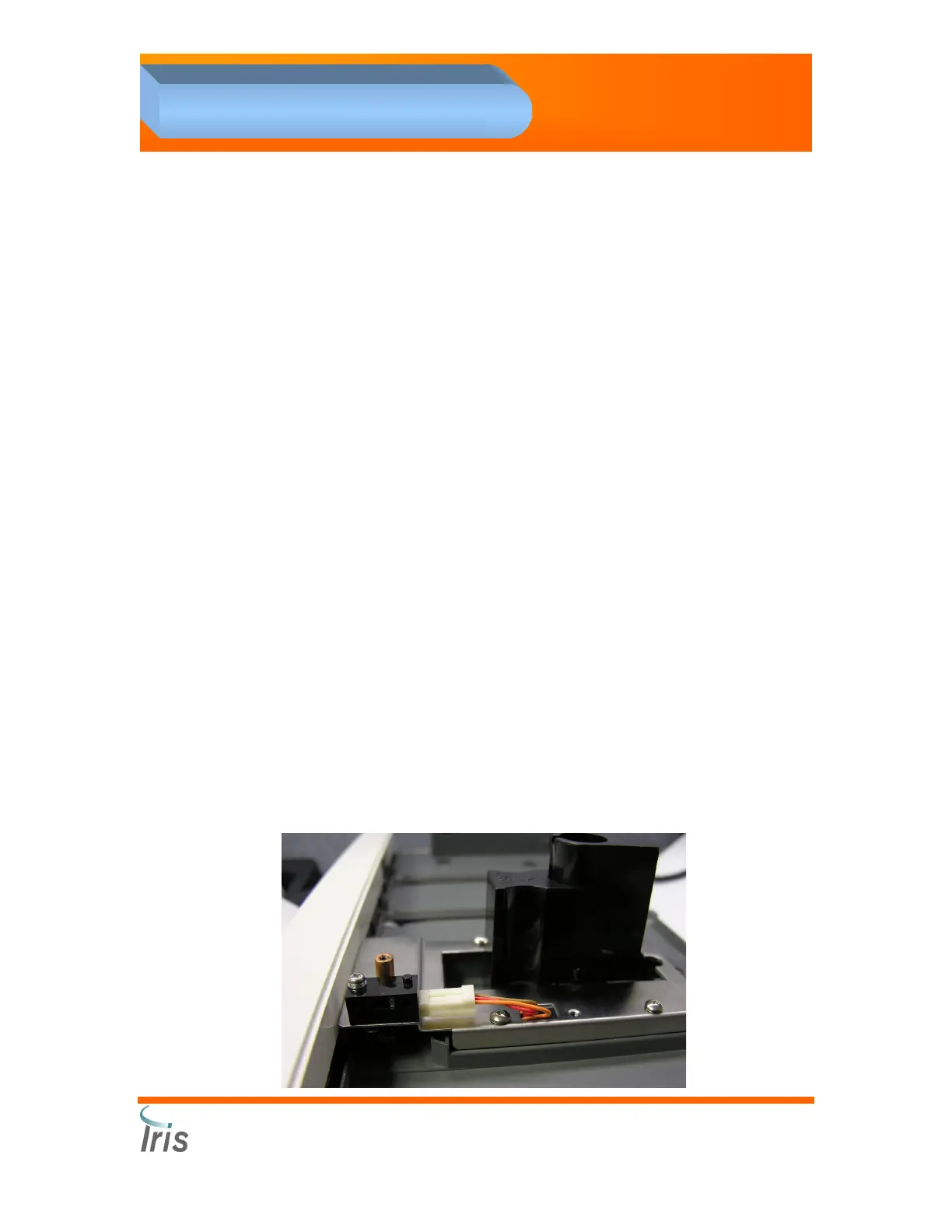

10. Secure the black optical sensor to the side of the base plate touching
the front of the sampler, using the hardware included in the bridge
connection kit. (see picture below)
