Iris Diagnostics, a Division of International Remote Imaging Systems, Inc.
iQ
®
200 Sprint™ Automated Urine Microscopy Analyzer Service Manual 300-4949 Rev A 01/2005 4-23
4. Adjustments

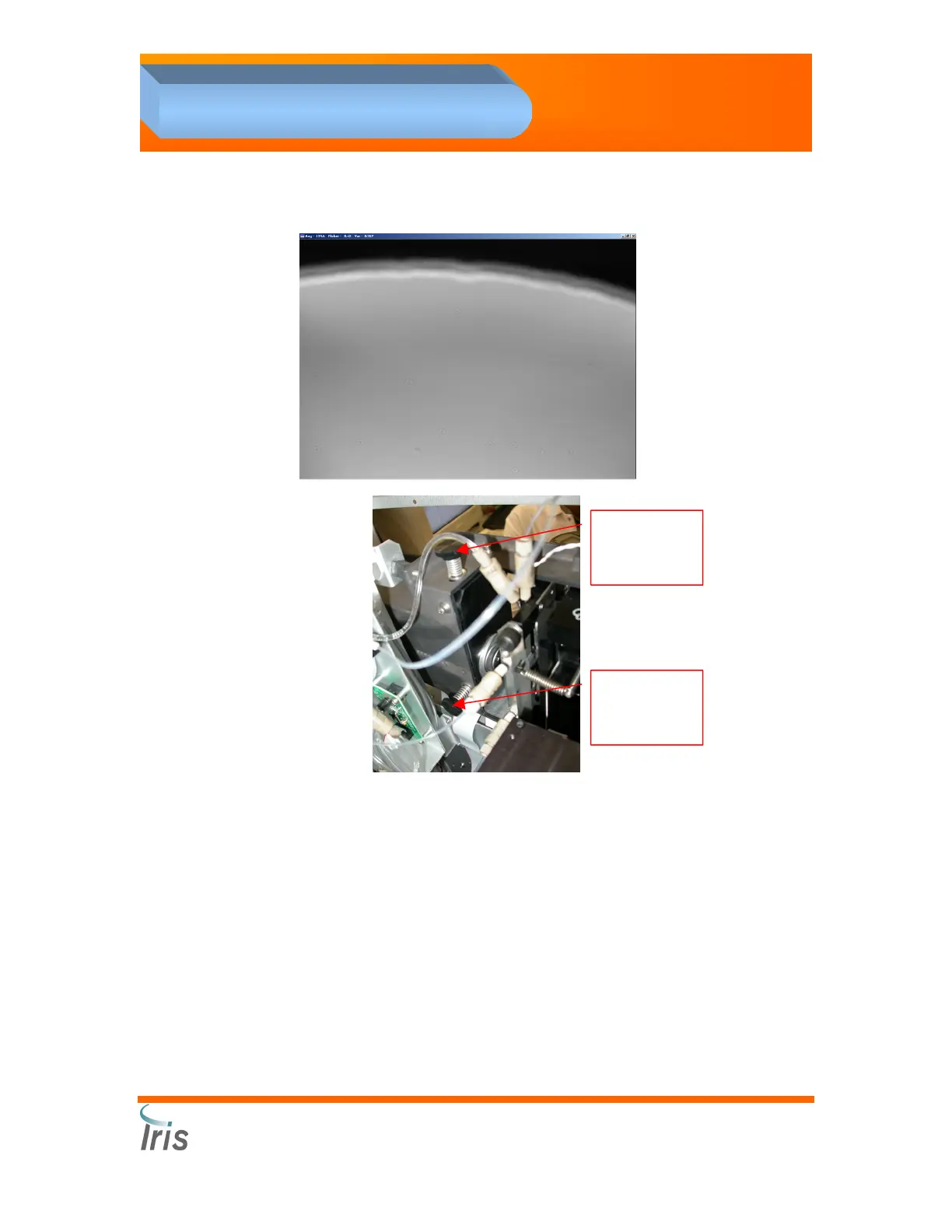

4. Turn the vertical knob clockwise to reach one edge of iris.
5. Turn the vertical adjustment knob counter clockwise to the other edge
of the iris.
6. Adjust the vertical knob until the condenser is centered.
7. Repeat above steps with the horizontal knob until the image is
centered.
8. Close the Live Video window.
9. Exit the Service Application.
Run Auto Focus
Run one glass tube with barcode label filled with 6mL of Focus in position
5 of a QC rack.
Vertical
adjustment
Horizontal
adjustment
