Iris Diagnostics, a Division of Iris International, Inc.
iQ
®
200 Sprint™ (2G) Automated Urine Microscopy Analyzer Service Manual 300-4949 Rev A 01/2005 2-16
2. Installation Procedures
Optional Load/Unload Station Installation
Load Station - iQ200 Connection
NOTE: The Load Station may be connected to either the AX-4280 or the
iQ200.
1. Remove the right side cover from the iQ200 sampler.
2. Break the tab on the side cover to allow the rack to transfer from the
Load Station to the Sampler.
3. Reinstall the right side cover. DO NOT install the bottom screw
located on the backside of the sampler cover.
4. Assemble the bridge (see picture below)

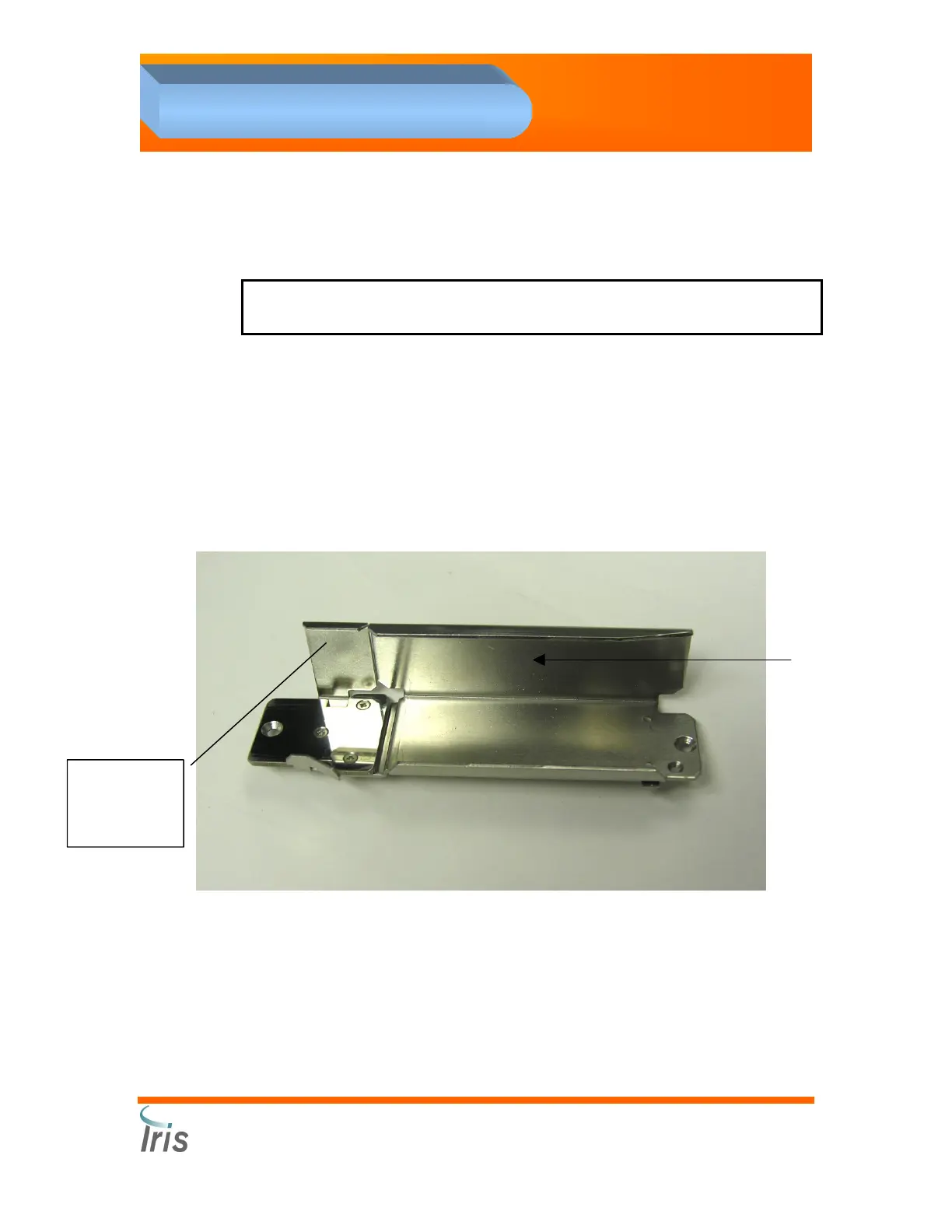

Load station bridge assembly
Securing
Brace
Note
position of
guide plate
To Next Page
