Iris Diagnostics, a Division of Iris International, Inc.
iQ
®
200 Sprint™ (2G) Automated Urine Microscopy Analyzer Service Manual 300-4949 Rev A 01/2005 3-12
3. Components
1
2
3
4

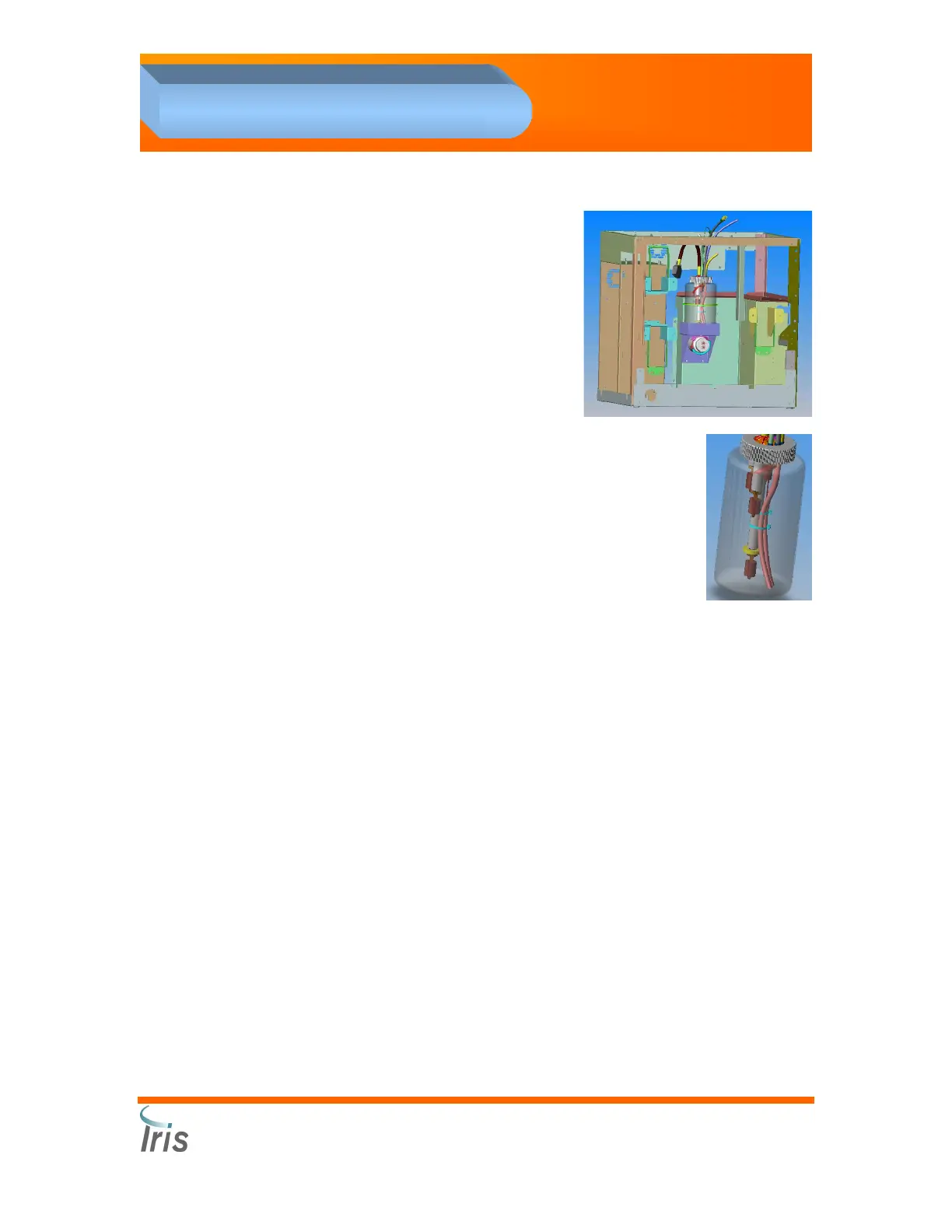

Lamina Tank # 700-3784
The Lamina Tank, located on a bracket
above the air tank, is used as a reserve
to avoid running out of Lamina. The Fill
pump fills the Lamina Tank directly from
the external Lamina container.
Four liquid level sensors are inside the
Lamina tank. From top to bottom:
1. Overflow detector – when this level is reached, the Fill
Pump stops filling the tank.
2. Refill detector – when this level is reached, the Fill
Pump is activated to refill the tank.
3. Low-level detector – the external Lamina container is
empty. An error message with medium priority is
generated, sample processing continues.
4. Empty level detector – the external Lamina container
is empty. An error message with high priority is
generated; sample processing is stopped until a new
container is installed.
