3. Components

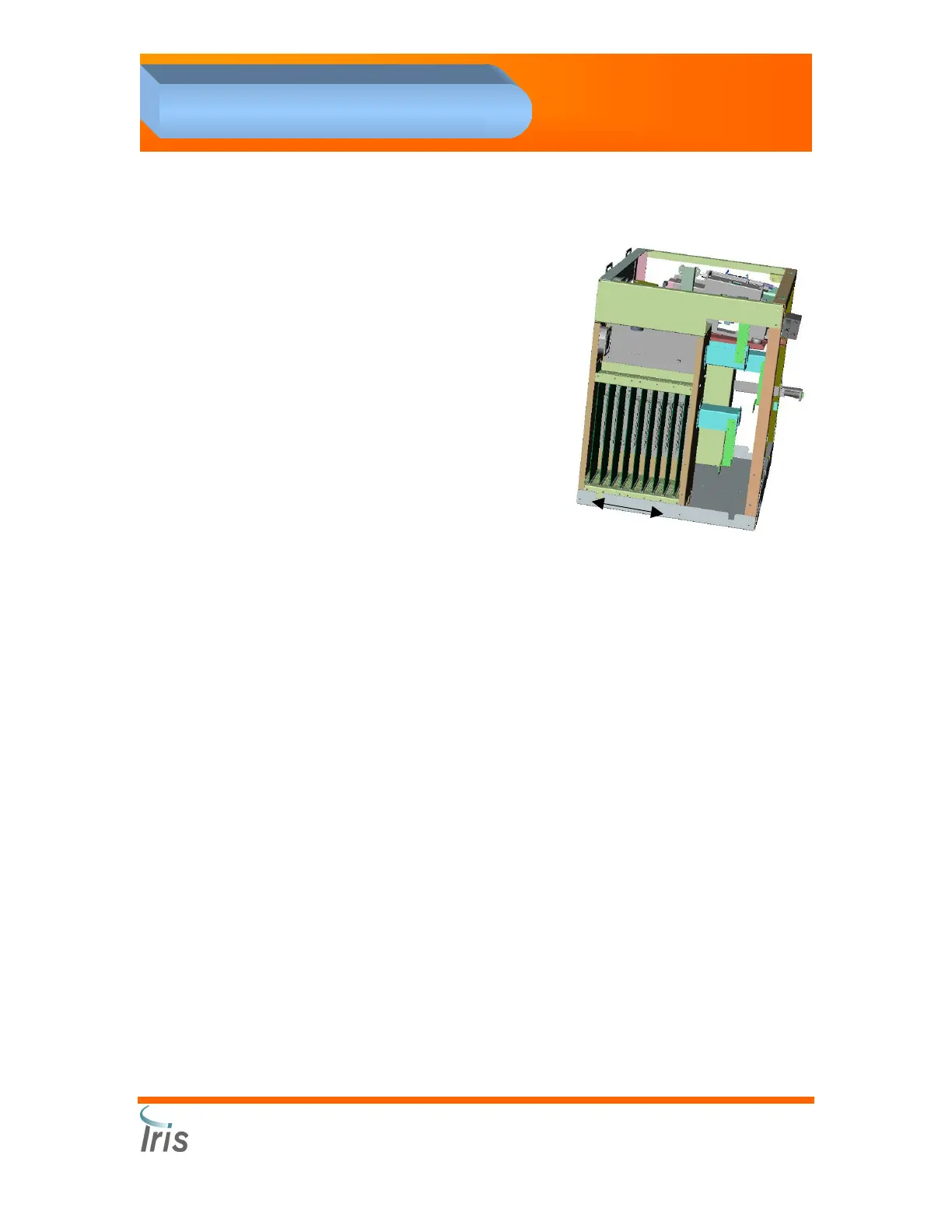

Cardcage
The Microscopy Module control center
is the cardcage, and is composed of
the Microscopy Module backplane,
assembly number 101-5003, and nine
circuit boards (called the Cardcage
boards). The backplane has nine 120-
pin DIN connectors into which the
Cardcage boards plug. The color of
the card guides for each slot position
identifies the type of board required in
the slot—the color of the board’s plastic
card ejector should match the color of
the card guide. There are also 16 other
connectors on the backplane for
interface to the rest of the SMCS
system.
High Level Control Board (HLCB), # 101-5057
The HLCB, located in slot #1, is the highest level controlling entity in the
Microscopy Module. It includes the Master Controller, six high-level
controllers, and the FQM low-level controller that itself controls a multi-
point scanner. There is one HLCB with white card ejectors.
Motor/Scanner Control Board (MSCB), # 101-5001
The MSCB provides low-level closed-loop control over two independent
DC motor/encoders and a multi-point scanner. There are four MSCB
boards with blue card ejectors. They are interchangeable.
• Slot 2 Sample Presentation Assembly
• Slot 3 Sample Presentation Assembly
• Slot 6 Fluidic block
• Slot 7 Sample Transport Module (sampler)
DC Valve Board (DCVB), # 101-5043
The DCVB provides control for solenoid-operated valves, and includes
the ability to electrically measure activation and release operation of the
valves being controlled. There are two DCVB boards with green card
ejectors. They are interchangeable.
• Slot 4 Sample Presentation Assembly
• Slot 5 Fluidic block
