200 Sprint™ (2G) Automated Urine Microscopy Analyzer Service Manual 300-4949 Rev A 01/2005 2-8
2. Installation Procedures

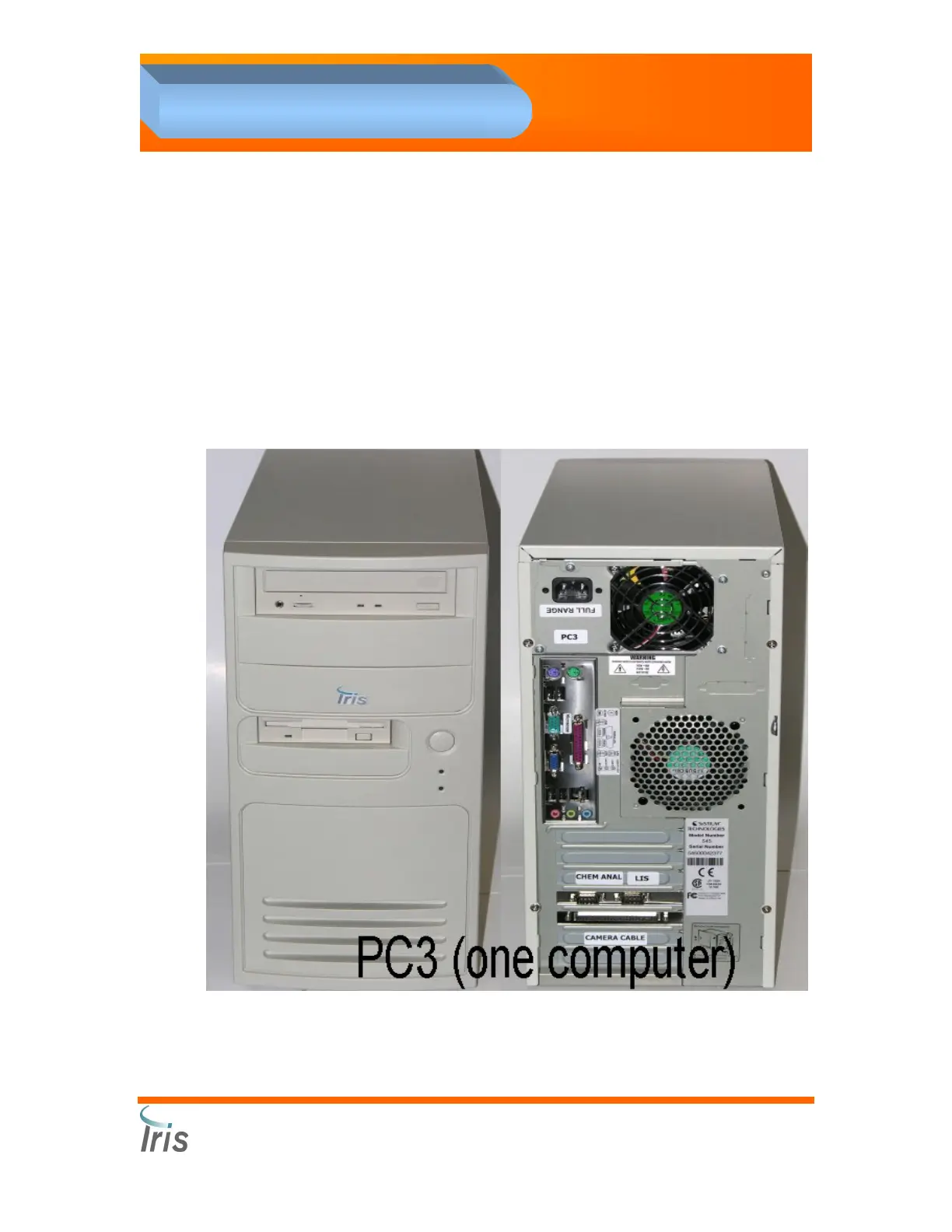

Computer Connections
1. Connect the video monitor cable to the video monitor and the video port.
2. Connect the keyboard cable to the keyboard port.
3. Connect the mouse cable to the mouse port.
4. Connect the power cord into the power inlet, and then plug into an
electrical outlet.
5. Connect the printer cable to the printer and the printer port.
6. Connect the 100-pin camera data cable to the frame grabber port.
7. Connect one end of the RS232 cable to the serial port on the
computer; connect the other end to the serial port 1 (top port) on the
back of the
iQ
®
200.
