Iris Diagnostics, a Division of Iris International, Inc.
iQ
®
200 Sprint™ (2G) Automated Urine Microscopy Analyzer Service Manual 300-4949 Rev A 01/2005 3-14
3. Components
Valves
Solenoid Valves

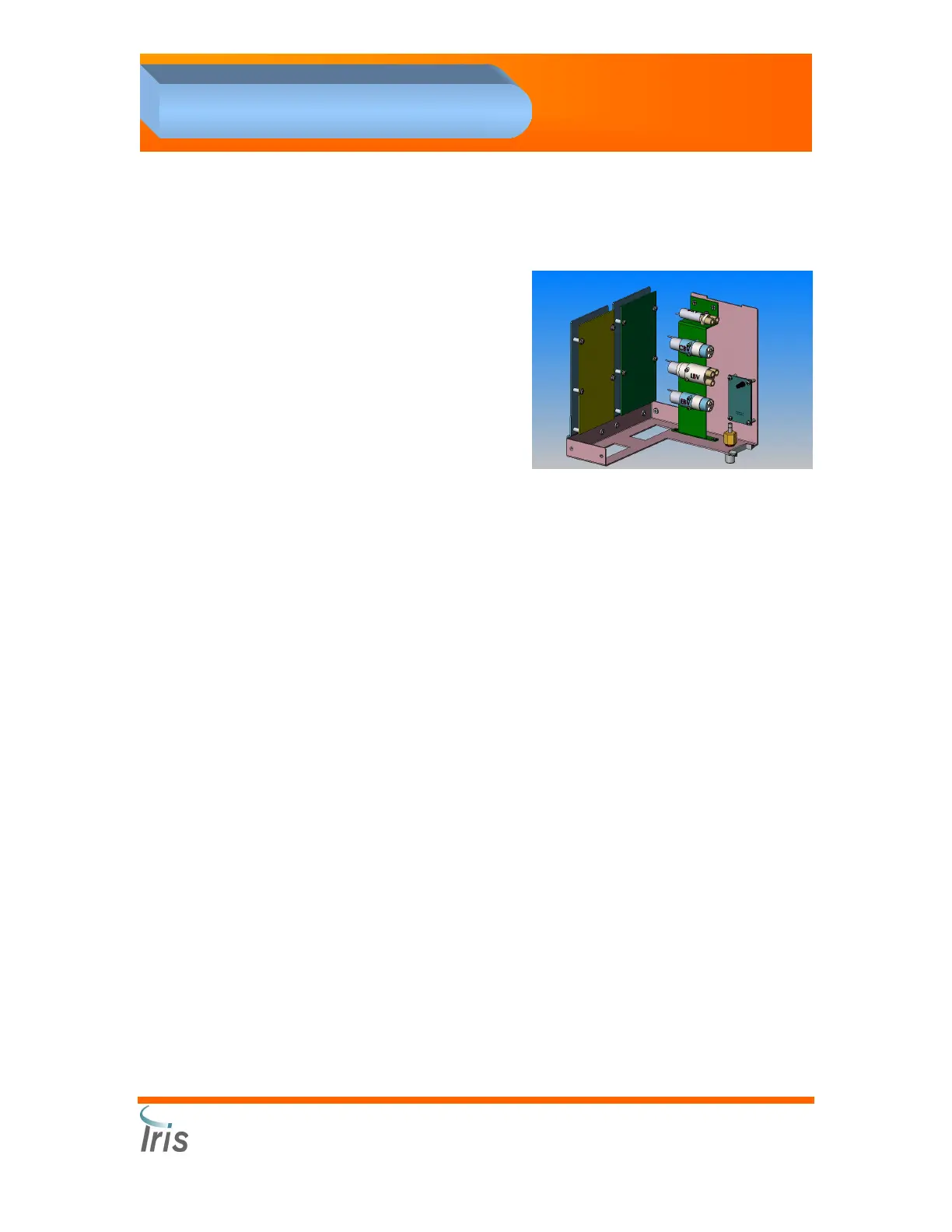

Located inside the microscopy
module, on the right of the Lamina
Tank, from top to bottom:
Drain Valve # 700-3844
The Drain Valve is used to remove
any air bubble present inside the
Flow Cell.
Evacuation Bypass Valve #
700-3843
When this valve is opened, the Evacuation Peristaltic pump aspirates
fluids from the drain outlet of the Flow Cell into the Waste Well.
When closed, the valve diverts the flow from the Evacuation Pump to the
Waste Well.
Lamina Bypass Valve # 700-3842
When this valve is opened, Lamina goes to the Waste Well.
When closed, Lamina goes to the Flow Cell.
Cannula Bypass Valve # 700-3881
When this valve is opened, Lamina goes to the Flow Cell via the Pipettor
Bypass Valve.
When closed, Lamina goes to the Waste Well.
Pipettor Bypass Valve # 700-3880
Located on the Specimen Presentation Assembly. When this valve is
opened, sample and/or Lamina go to the Flow Cell.
When closed, sample is aspirated in the flow line.
