200 Sprint™ (2G) Automated Urine Microscopy Analyzer Service Manual 300-4949 Rev A 01/2005 2-24

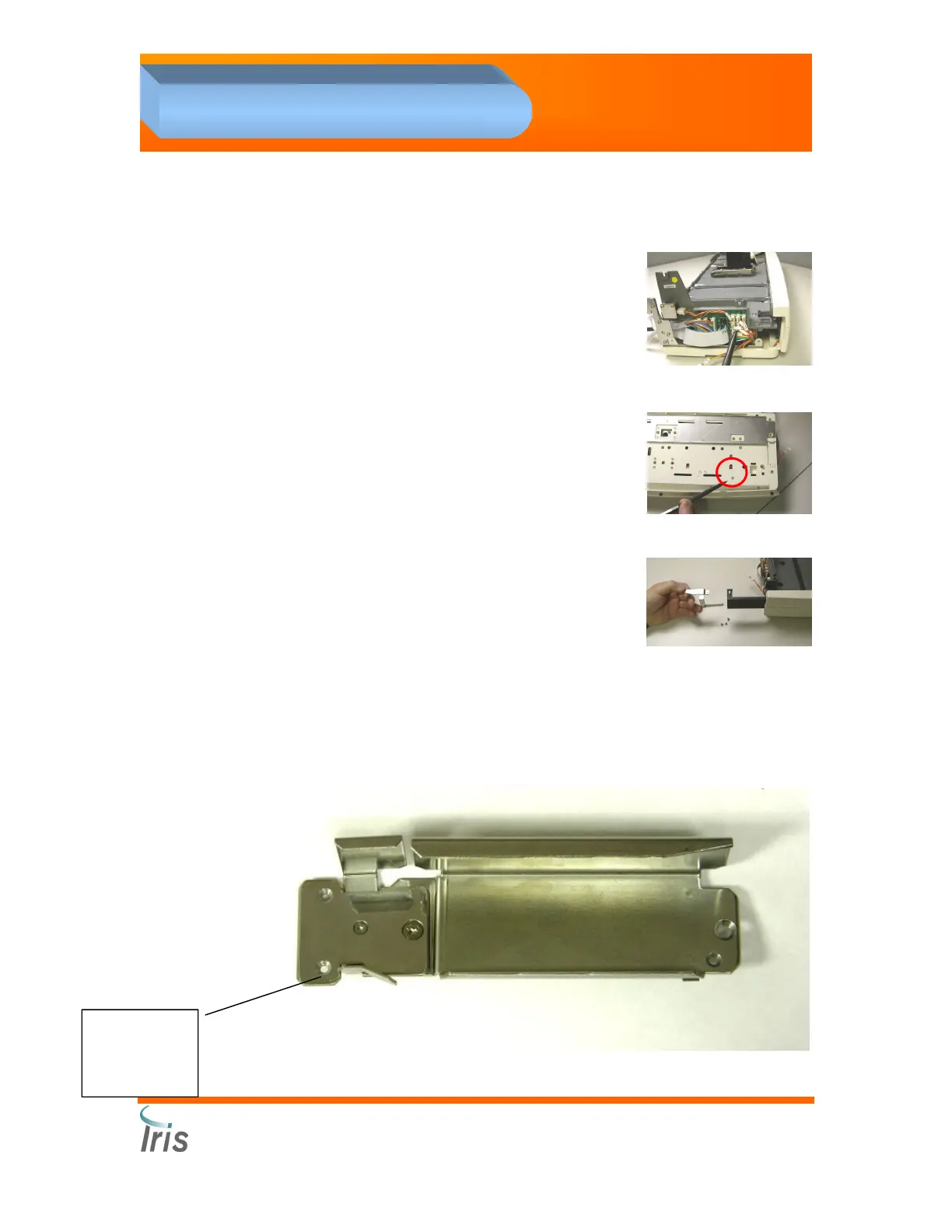

2. Installation Procedures
Unload Station
1. Remove left side cover from the iQ200
sampler.
2. Unplug connector # S1-10 (white label) from
the circuit board and replace with connector#
S1-10 (side sampler) stored in the bottom of
the sampler.
3. On the bottom side of the sampler, remove
the screw (as indicated on the picture on the
right) securing the carry arm stop post.
Remove the post from the inside of the
sampler.
4. Extend the lever from the sampler. Attach the
rack push arm to the lever with two (2, M3x5)
flat head and one (1, M3x6 pan head) screws.
5. Break the tab on the side cover to allow the
leaver to extend when the cover is in place.
6. Reinstall the left side sampler cover. DO NOT install the bottom
screw located on the backside of the sampler cover.
7. Assemble the bridge (see picture below)
Unload station bridge assembly
Note
position of
guide plate
