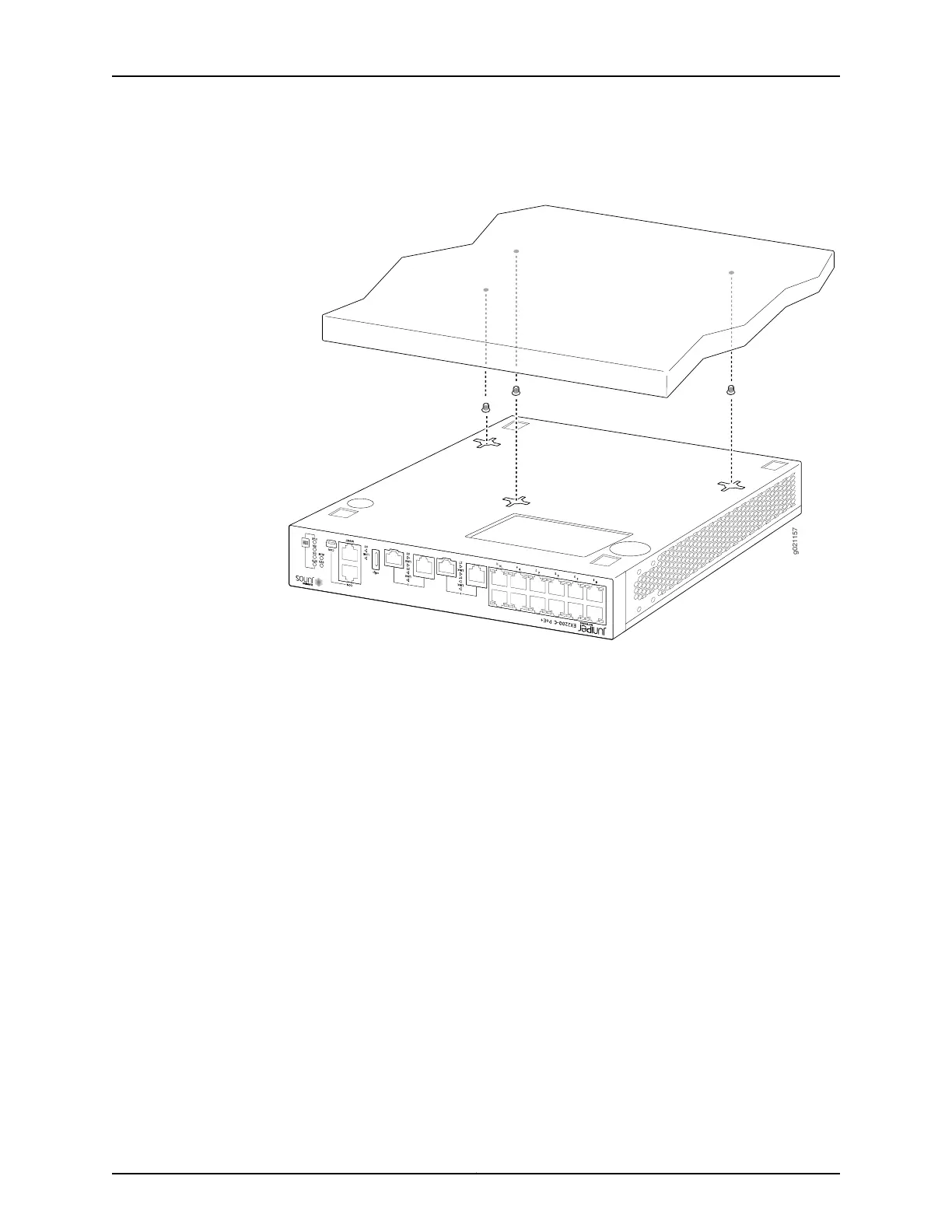

Juniper EX2200 - Figure 25: Mounting the EX2200-C Switch on or under a Desk Using Screws

Figure 25: Mounting the EX2200-C Switch On or Under a Desk Using
Screws
g021157
4. (Optional) Attach the cable guard to protect cable connections:
a. Use the 3 truss-head screws toattach the cable guard to the bottom of the chassis.
b. Use the thumbscrews to tighten or loosen the guard to allow you to insert cables.
See Figure 26 on page 95.
Copyright © 2015, Juniper Networks, Inc.94
Complete Hardware Guide for EX2200 Ethernet Switches
