Juniper EX2200 User Manual

Related
Documentation
EX2200 Switches Hardware Overview on page 3•
• Configuring Gigabit Ethernet Interfaces (CLI Procedure)
• Configuring Gigabit Ethernet Interfaces (J-Web Procedure)
Management Port LEDs in EX2200 Switches
The management port on an EX2200 switch has two LEDs that indicate link/activity and
port status. The EX2200 switches except the EX2200-C switch models have the
management port on the rear panel and the EX2200-C switch has the management port
on the front panel. See Figure 12 on page 17 and Figure 13 on page 17.

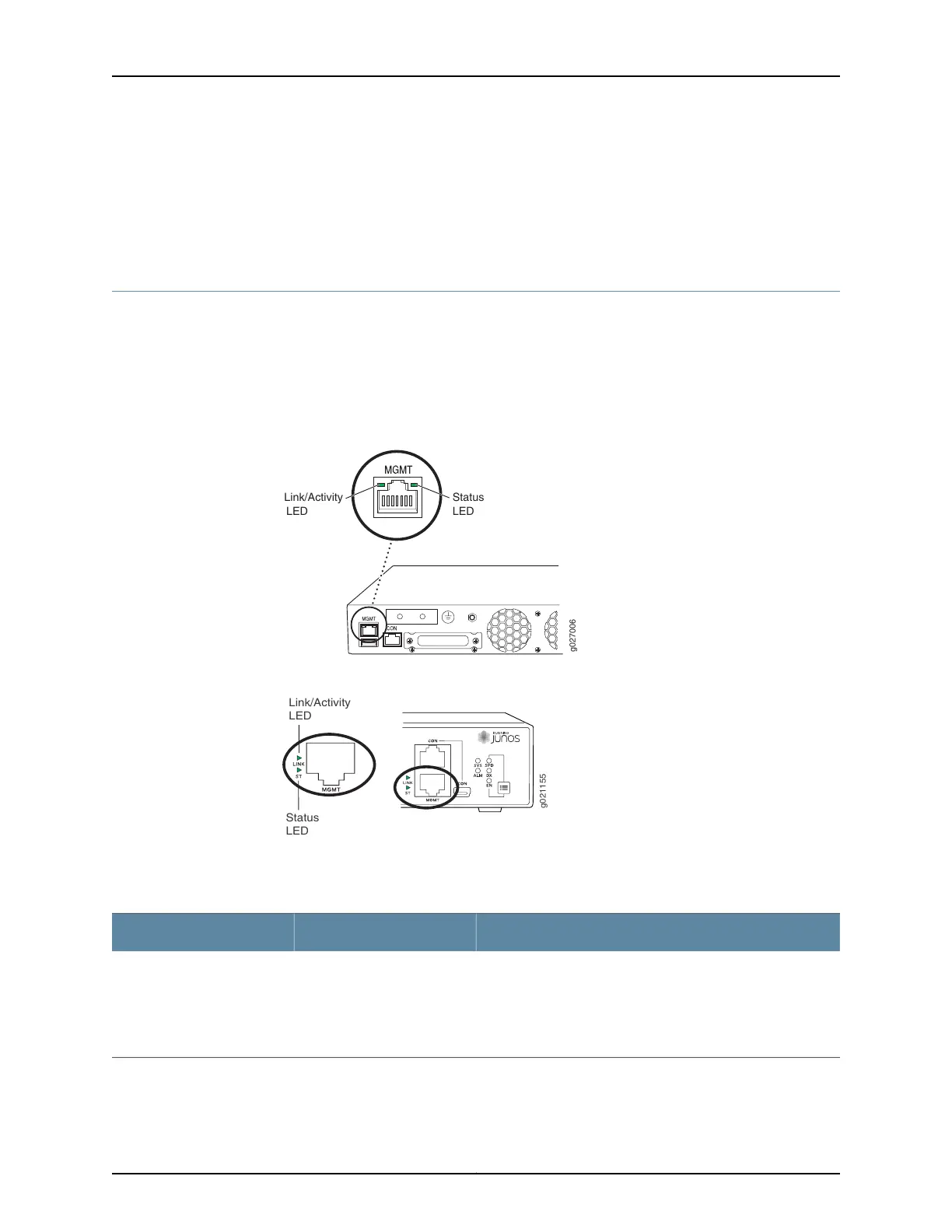

Figure 12: LEDs on the Management Port on an EX2200 Switch Except
the EX2200-C Switch Model
g027006
Link/Activity
LED
Status
LED
Figure 13: LEDs on the Management Port on an EX2200-C Switch
g021155
Status
LED
Link/Activity
LED
Table 9 on page 17 describes the Link/Activity LED.
Table 9: Link/Activity LED on the Management Port on EX2200 Switches
State and DescriptionColorLED
•
Blinking—The port and the link are active, and there is link
activity.
•
On steadily—The port and the link are active, but there is no
link activity.
•
Off—The port is not active.
GreenLink/Activity
Table 10 on page 18 describes the Status LED.
17Copyright © 2015, Juniper Networks, Inc.
Chapter 2: Component Descriptions

Juniper EX2200 Specifications

General

Throughput	77 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Number of VLANs	1024
Networking standards	-
Switch type	Managed
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports quantity	48
Stackable	No
Product color	Black
Power consumption (typical)	100 W
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	254 mm
Width	441 mm
Height	43 mm
Weight	3600 g
