Juniper EX2200 User Manual

Table 6: Chassis Status LEDs in an EX2200 Switch
State and DescriptionColorLED Label
•
On steadily—The switch is functioning normally.
•
Blinking—The switch is booting.
•
Off—The switch is powered off or is halted.
GreenSYS
There is no alarm or the switch is halted.UnlitALM
There is a minor alarm.Amber
There is a major alarm.Red
A major alarm (red) indicates a critical error condition that requires immediate action.
A minor alarm (amber) indicates a noncritical condition that requires monitoring or
maintenance. A minor alarm that is left unchecked might cause interruption in service or
performance degradation.
Both LEDs can be lit simultaneously.
You can view the colors of the two LEDs remotely through the CLI by issuing the
operational mode command show chassis led.
Related
Documentation
EX2200 Switches Hardware Overview on page 3•
• Checking Active Alarms with the J-Web Interface
• Understanding Alarm Types and Severity Levels on EX Series Switches
Network Port and Uplink Port LEDs in EX2200 Switches
Each network port and uplink port on the front panel of an EX2200 switch has two LEDs
that indicate link/activity and port status. Each dual-purpose uplink port in an EX2200-C
switch has two pairs of LEDs that indicate the link/activity status, one pair for each of
the two ports that constitute the dual-purpose uplink port. See Figure 9 on page 14,
Figure 10 on page 15, and Figure 11 on page 15.

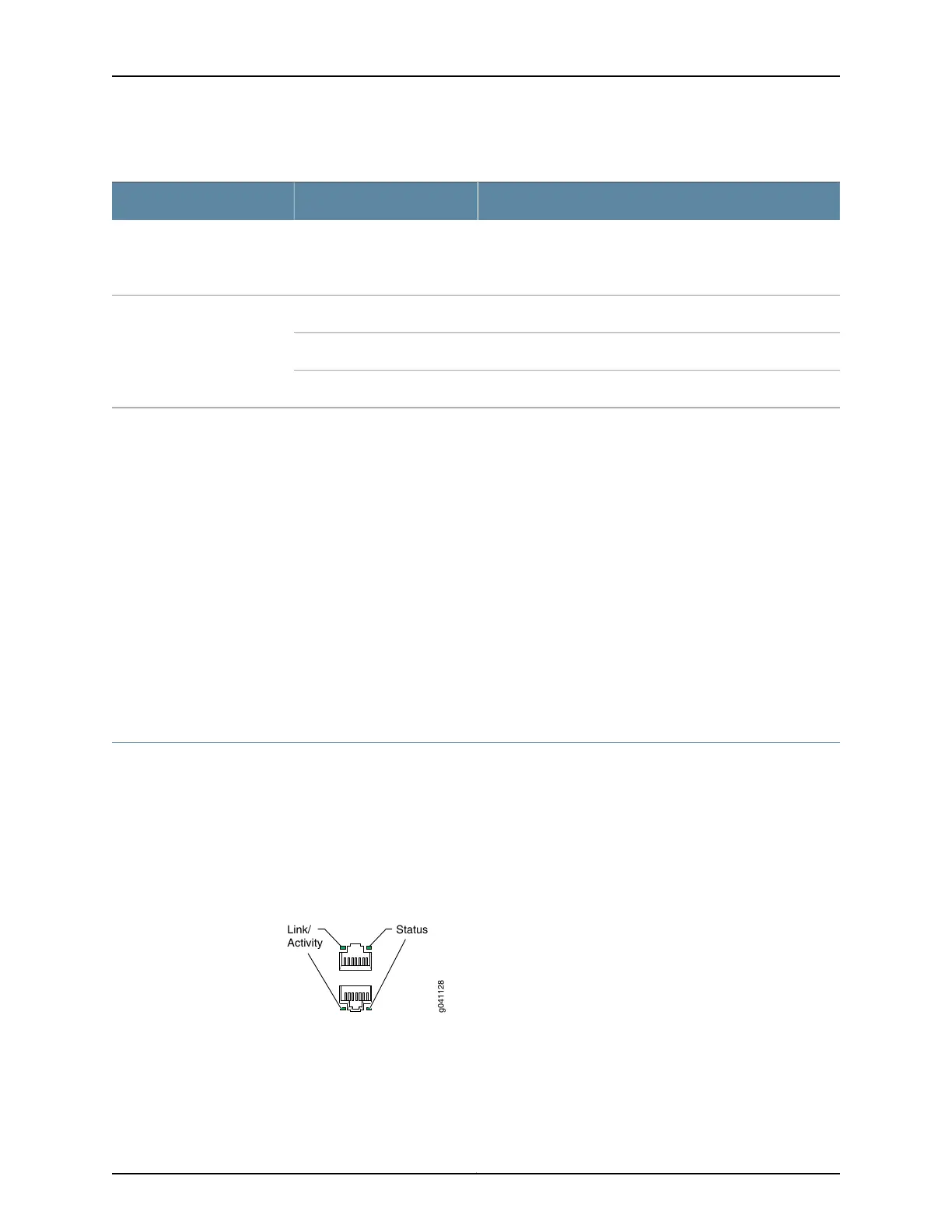

Figure 9: LEDs on the Network Port
g041128
Link/
Activity
Status
Copyright © 2015, Juniper Networks, Inc.14
Complete Hardware Guide for EX2200 Ethernet Switches

Juniper EX2200 Specifications

General

Throughput	77 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Number of VLANs	1024
Networking standards	-
Switch type	Managed
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports quantity	48
Stackable	No
Product color	Black
Power consumption (typical)	100 W
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 4877 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth	254 mm
Width	441 mm
Height	43 mm
Weight	3600 g
